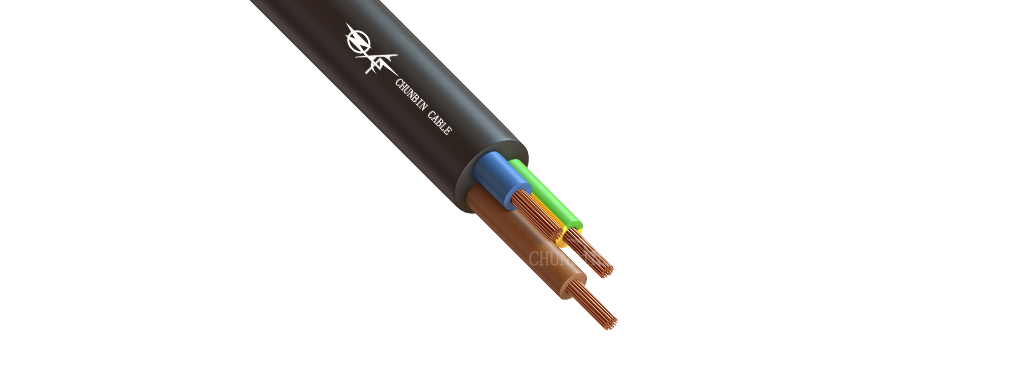

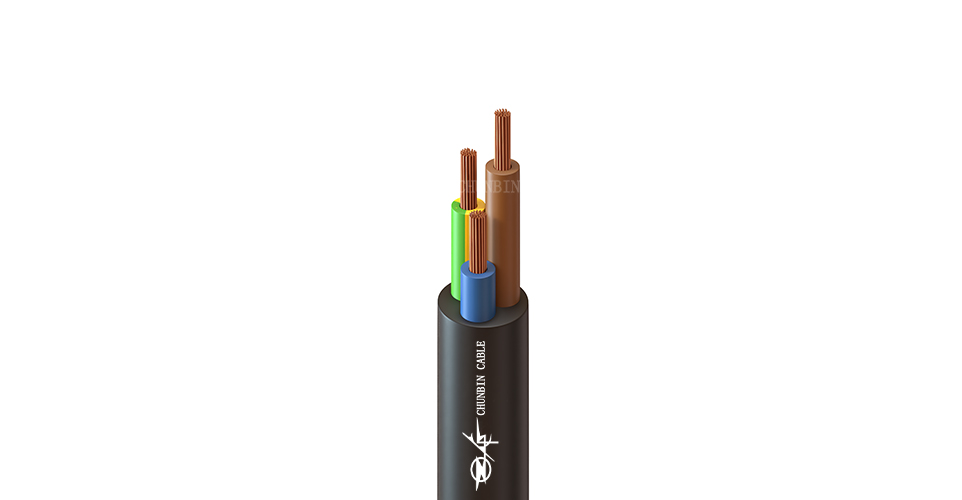

| H05RN-F Flexible Rubber Cable IEC/EN 50525-2-21 | |||||||
| Type | Nominal Section(mm²) |
Structure of Conductor |
Insulation Thickness(mm) |
Uacket thickness(mm) |
Overall Diameter(mm) |
Rated Moltage |
Max.Conducton Resistance at209C(0/KM) |
| Core No/Dia(mm) |
|||||||
| H05RN- F |
1*1.5mm² | 30/0.25 | 0.8 | 1.4 | 6.2±0.2 | 450/750V | 13.3 |
| 1*2.5mm² | 49/0.25 | 0.9 | 1.4 | 6.6±0.2 | 450/750V | 7.98 | |
| 1*4mm² | 56/0.3 | 1 | 1.5 | 7.9±0.3 | 450/750V | 4.95 | |
| 1*6mm² | 84/0.3 | 1 | 1.6 | 8.7±0.3 | 450/750V | 3.3 | |
| 2*1mm² | 32/02 | 0.8 | 1.3 | 8.3±0.3 | 450/750V | 195 | |
| 2*1.5mm² | 30/0.25 | 0.8 | 1.5 | 9.3+0.3 | 450/750V | 13.3 | |
| 2*2.5mm² | 49/0.25 | 0.9 | 1.7 | 11.2±0.4 | 450/750V | 7.98 | |
| 2*4mm² | 56/0.3 | 1 | 1.8 | 12.8±0.4 | 450/750V | 4.95 | |
| 2*6mm² | 84/0.3 | 1 | 2 | 14.4±0.4 | 450/750V | 3.3 | |
| 3*1mm² | 32/0.2 | 0.8 | 1.4 | 9±0.3 | 450/750V | 19.5 | |
| 3*1.5mm² | 30/0.25 | 0.8 | 1.6 | 10.1±0.4 | 450/750V | 13.3 | |
| 3*2.5mm² | 49/0.25 | 0.9 | 1.8 | 12.1±0.4 | 450/750V | 7.98 | |
| 3*4mm² | 56/0.3 | 1 | 1.9 | 13.9±0.4 | 450/750V | 4.95 | |
| 3*6mm2 | 84/0.3 | 1 | 2.1 | 15.4±0.5 | 450/750V | 3.3 | |
| 4*1mm² | 32/0.2 | 0.8 | 1.5 | 10±0.4 | 450/750V | 19.5 | |
| 4*1.5mm² | 30/0.25 | 0.8 | 1.7 | 11.1±0.4 | 450/750V | 13.3 | |
| 4*2.5mm² | 49/0.25 | 0.9 | 1.9 | 13.3±0.4 | 450/750V | 7.98 | |
| 4*4mm² | 56/0.3 | 1 | 2.0 | 15.2±0.5 | 450/750V | 4.95 | |
| 4*6mm² | 84/0.3 | 1 | 2.3 | 17.2±0.5 | 450/750V | 3.3 | |
| 5*1mm² | 32/0.2 | 0.8 | 1.6 | 11±0.4 | 450/750V | 19.5 | |
| 5*1.5mm² | 30/0.25 | 0.8 | 1.8 | 12.2±0.4 | 450/750V | 13.3 | |
| 5*2.5mm² | 49/0.25 | 0.9 | 2.0 | 14.6+05 | 450/750V | 7.98 | |
| 5*4mm² | 56/0.3 | 1 | 22 | 16.9±0.5 | 450/750V | 4.95 | |
| 5*6mm² | 84/0.3 | 1 | 2.5 | 19.1±1.6 | 450/750V | 3.3 | |
