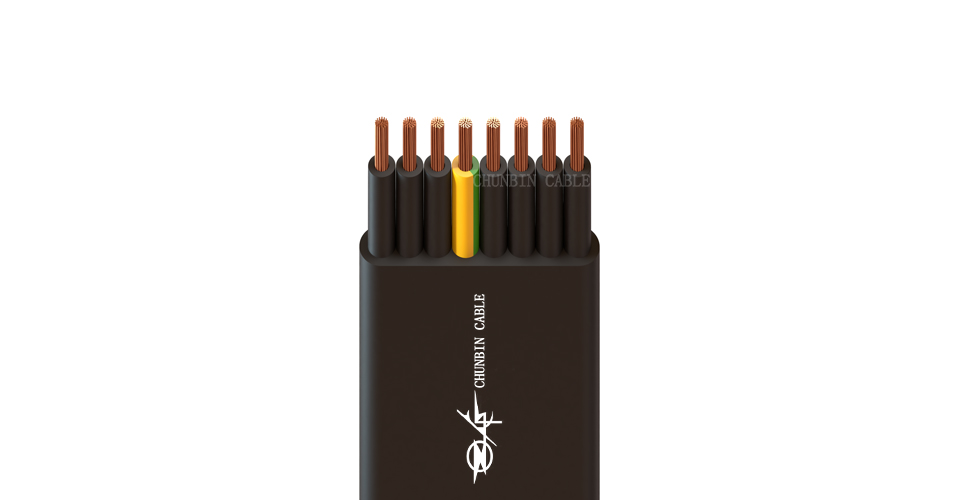

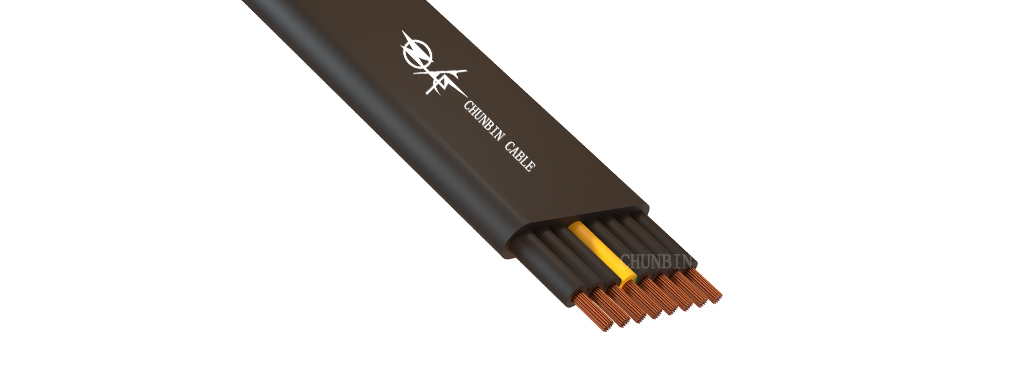

| Flat Rubber Cable | ||||||||||
| Specifications | Conductor structure | Conductor outer diameter | Belt | Insulation thickness (mm) | Sheath thickness | Outer diameter | Weight | Maximum DC resistance at 20℃ (Ω/km) | Test voltage (KV/min) | Maximum allowable traction force (N) |
| (MM) | (MM) | (MM) | (MM) | (kg/km) | ||||||
| 2×0.75 | 24/0.20 | 1.12 | 8×0.05 | 0.6 | 0.8 | 4.1×6.6 | 45.5 | 26 | 2/5 | 105 |
| 2×1.0 | 32/0.20 | 1.29 | 5×0.05 | 0.6 | 0.9 | 4.4×7.0 | 54.8 | 19.5 | 2/5 | 140 |
| /8×0.05 | ||||||||||
| 2×1.5 | 30/0.25 | 1.56 | 8×0.05 | 0.8 | 1 | 5.4×8.6 | 80.5 | 13.3 | 2/5 | 210 |
| 2×2.5 | 49/0.25 | 2 | 8×0.05 | 0.9 | 1.1 | 6.2×10.2 | 116 | 7.98 | 2/5 | 350 |
| 2×4 | 56/0.30 | 2.56 | 8×0.05 | 1 | 1.2 | 7.1×11.8 | 166.3 | 4.95 | 2/5 | 560 |
| 2×6 | 84/0.30 | 3.54 | 10×0.05 | 1 | 1.3 | 8.2×13.8 | 225.4 | 3.3 | 2/5 | 840 |
| 3×0.75 | 24/0.20 | 1.12 | 8×0.05 | 0.6 | 0.9 | 4.3×6.8 | 60.2 | 26 | 2/5 | 158 |
| 3×1.0 | 32/0.20 | 1.29 | 8×0.05 | 0.6 | 0.9 | 4.4×7.0 | 69.4 | 19.5 | 2/5 | 210 |
| 3×1.5 | 30/0.25 | 1.56 | 8×0.05 | 0.8 | 1 | 5.3×8.6 | 102.8 | 13.3 | 2/5 | 315 |
| 3×2.5 | 49/0.25 | 2 | 8×0.05 | 0.9 | 1.1 | 6.2×10.2 | 150.1 | 7.98 | 2/5 | 525 |
| 3×4 | 56/0.30 | 2.56 | 8×0.05 | 1 | 1.2 | 7.1×11.8 | 218.8 | 4.95 | 2/5 | 840 |
| 3×6 | 84/0.30 | 3.54 | 10×0.05 | 1 | 1.3 | 8.2×13.8 | 298.4 | 3.3 | 2/5 | 1260 |
| 4×0.75 | 24/0.20 | 1.12 | 8×0.05 | 0.6 | 0.9 | 4.3×6.8 | 72 | 26 | 2/5 | 210 |
| 4×1.0 | 32/0.20 | 1.29 | 8×0.05 | 0.6 | 0.9 | 4.4×7.0 | 84 | 19.5 | 2/5 | 280 |
| 4×1.5 | 30/0.25 | 1.56 | 5×0.05 | 0.8 | 1 | 5.8×9.3 | 137.4 | 13.3 | 2/5 | 420 |
| 4×2.5 | 49/0.25 | 2 | 5×0.05 | 0.9 | 1.1 | 6.6×10.7 | 198 | 7.98 | 2/5 | 700 |
| 4×4 | 56/0.30 | 2.56 | 5×0.05 | 1 | 1.2 | 7.6×12.5 | 290.1 | 4.95 | 2/5 | 1120 |
| 4×6 | 84/0.30 | 3.54 | 10×0.05 | 1 | 1.3 | 9.2×15.5 | 411.8 | 3.3 | 2/5 | 1680 |
| 5×0.75 | 24/0.20 | 1.12 | 5×0.05 | 0.6 | 1 | 4.7×7.3 | 92.3 | 26 | 2/5 | 263 |
| 5×1.0 | 32/0.20 | 1.29 | 5×0.05 | 0.6 | 1 | 4.9×7.7 | 108.5 | 19.5 | 2/5 | 350 |
| 5×1.5 | 30/0.25 | 1.56 | 5×0.05 | 0.8 | 1.1 | 5.8×9.3 | 160.8 | 13.3 | 2/5 | 525 |
| 5×2.5 | 49/0.25 | 2 | 5×0.05 | 0.9 | 1.3 | 6.8×10.9 | 238.3 | 7.98 | 2/5 | 875 |
| 5×4 | 56/0.30 | 2.56 | 5×0.05 | 1 | 1.4 | 7.8×12.7 | 350.1 | 4.95 | 2/5 | 1400 |
| 5×6 | 84/0.30 | 3.54 | 10×0.05 | 1 | 1.6 | 9.7×16.0 | 506.8 | 3.3 | 2/5 | 2100 |
| 6×0.75 | 24/0.20 | 1.12 | 5×0.05 | 0.6 | 1 | 4.7×7.3 | 104.7 | 26 | 2/5 | 315 |
| 6×1.0 | 32/0.20 | 1.29 | 5×0.05 | 0.6 | 1.1 | 5.1×7.9 | 127.2 | 19.5 | 2/5 | 420 |
| 6×1.5 | 30/0.25 | 1.56 | 5×0.05 | 0.8 | 1.2 | 6.0×9.5 | 188.2 | 13.3 | 2/5 | 630 |
| 6×2.5 | 49/0.25 | 2 | 5×0.05 | 0.9 | 1.4 | 7.0×11.1 | 278.7 | 7.98 | 2/5 | 1050 |
| 6×4 | 56/0.30 | 2.56 | 5×0.05 | 1 | 1.5 | 8.1×13.0 | 413 | 4.95 | 2/5 | 1680 |
| 6×6 | 84/0.30 | 3.54 | 10×0.05 | 1 | 1.7 | 9.9×16.2 | 591.9 | 3.3 | 2/5 | 2520 |
