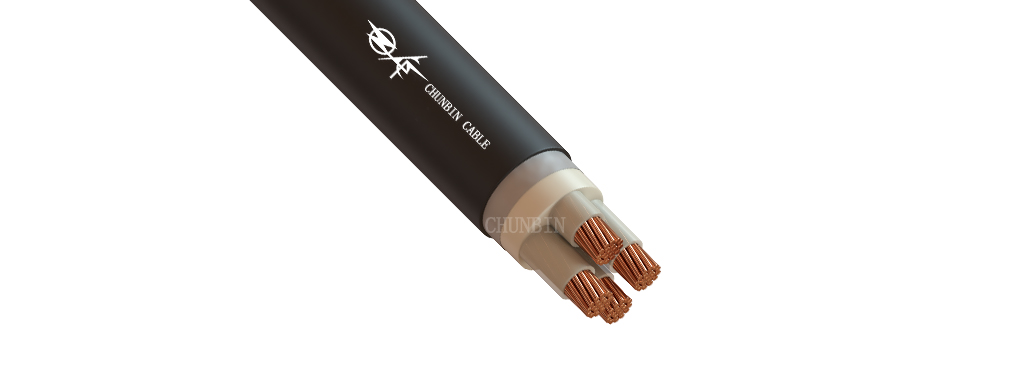

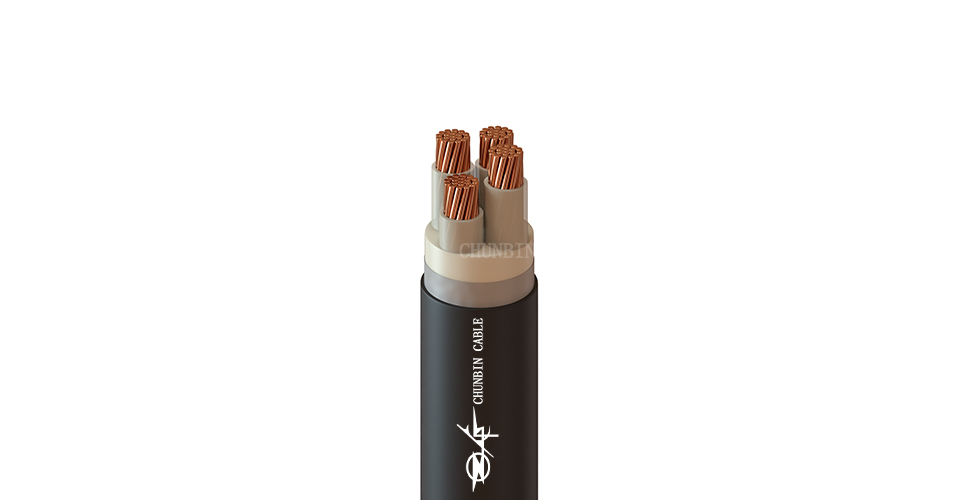

0.6/1kV XLPE insulation power cable

Technical parameter

Single Core XLPE Insulation Power Cable

Two Cores XLPE Insulation Power Cable

Three Cores XLPE Insulation Power Cable

Four Cores XLPE Insulation Power Cable

Five Cores XLPE Insulation Power Cable

Three CoresXLPE Insulation Power Cable with One Neutral Core

Three Cores XLPE Insulation Power Cable with Two Neutral Cores

Four Cores XLPE Insulation Power Cable with One Neutral Core

Single Core XLPE Insulation Power Cable
Cross section	Conductor Dia (Approx.)	XLPE insulation thickness	PVC sheath thickness	Overall Dia. (Approx.)	Weight of cable(Approx.)		DC Resistance at 20°C Max
Cross section	Conductor Dia (Approx.)	XLPE insulation thickness	PVC sheath thickness	Overall Dia. (Approx.)	Copper	Aluminum	Copper	Aluminum
mm²	mm	mm	mm	mm	kg/km	kg/km	Ω/km	Ω/km
1.5	1.38	0.7	1.4	5.6	46		12.1
2.5	1.78	0.7	1.4	6.0	58	42	7.41
4	2.23	0.7	1.4	6.4	75	51	4.61
6	2.76	0.7	1.4	6.9	97	61	3.08
10	4.05	0.7	1.4	8.2	143	82	1.83	3.08
16	5.1	0.7	1.4	9.2	204	107	1.15	1.91
25	5.9	0.9	1.4	10.9	303	151	0.727	1.2
35	6.9	0.9	1.4	11.8	399	187	0.524	0.868
50	8.1	1.0	1.4	13.1	534	237	0.387	0.641
70	9.7	1.1	1.4	15.0	738	314	0.268	0.443
95	11.4	1.1	1.5	16.8	942	367	0.193	0.32
120	12.9	1.2	1.5	18.4	1180	451	0.153	0.253
150	14.2	1.4	1.6	20.6	1527	618	0.124	0.206
185	15.9	1.6	1.6	22.6	1868	746	0.0991	0.164
240	18.3	1.7	1.7	27.4	2980	1134	0.0754	0.125
300	20.4	1.8	1.8	27.8	3003	1157	0.0601	0.1
400	23.6	2.0	1.9	31.4	3932	1493	0.047	0.0778
500	26.4	2.2	2.0	35.0	4881	1842	0.0366	0.0605
630	30	2.4	2.2	39.4	6161	2316	0.0283	0.0469

Two Cores XLPE Insulation Power Cable
Cross section	Conductor Dia (Approx.)	XLPE insulation thickness	PVC sheath thickness	Overall Dia. (Approx.)	Weight of cable(Approx.)		DC Resistance at 20°C Max
Cross section	Conductor Dia (Approx.)	XLPE insulation thickness	PVC sheath thickness	Overall Dia. (Approx.)	Copper	Aluminum	Copper	Aluminum
mm²	mm	mm	mm	mm	kg/km	kg/km	Ω/km	Ω/km
2x1.5	1.38	0.7	1.8	9.6	114		12.1
2x2.5	1.78	0.7	1.8	10.4	143	112	7.41
2x4	2.23	0.7	1.8	11.3	183	134	4.61
2x6	2.76	0.7	1.8	12.3	235	161	3.08
2x10	4.05	0.7	1.8	14.9	345	222	1.83	3.08
2x16	5.1	0.7	1.8	16.9	484	289	1.15	1.91
2x25	5.9	0.9	1.8	20.3	718	410	0.727	1.2
2x35	6.9	0.9	1.8	22.1	919	497	0.524	0.868
2x50	8.1	1	1.8	24.9	1235	644	0.387	0.641
2x70	9.7	1.1	1.8	28.7	1708	856	0.268	0.443
2x95	11.4	1.1	1.9	32.9	2266	1111	0.193	0.32
2x120	12.9	1.2	2	36.5	2834	1370	0.153	0.253
2x150	14.2	1.4	2.2	39.9	3502	1678	0.124	0.206
2x185	15.9	1.6	2.3	44.3	4301	2052	0.0991	0.164
2x240	18.3	1.7	2.5	49.9	5521	2602	0.0754	0.125
2x300	20.4	1.8	2.6	55.3	6889	3199	0.0601	0.1
2x400	23.6	2.0	2.9	61.9	9018		0.047	0.0778

Three Cores XLPE Insulation Power Cable
Cross section	Conductor Dia (Approx.)	XLPE insulation thickness	PVC sheath thickness	Overall Dia. (Approx.)	Weight of cable(Approx.)		DC Resistance at 20°C Max
Cross section	Conductor Dia (Approx.)	XLPE insulation thickness	PVC sheath thickness	Overall Dia. (Approx.)	Copper	Aluminum	Copper	Aluminum
mm²	mm	mm	mm	mm	kg/km	kg/km	Ω/km	Ω/km
3x1.5	1.38	0.7	1.8	10.1	136		12.1
3x2.5	1.78	0.7	1.8	10.9	175	128	7.41
3x4	2.23	0.7	1.8	11.9	228	154	4.61
3x6	2.76	0.7	1.8	13.0	299	188	3.08
3x10	4.05	0.7	1.8	15.7	445	262	1.83	3.08
3x16	5.1	0.7	1.8	17.9	639	346	1.15	1.91
3x25	5.9	0.9	1.8	21.5	960	498	0.727	1.2
3x35	6.9	0.9	1.8	23.5	1244	612	0.524	0.868
3x50	8.1	1	1.8	26.5	1675	797	0.387	0.641
3x70	9.7	1.1	1.9	30.8	2366	1089	0.268	0.443
3x95	11.4	1.1	2	35.4	3147	1414	0.193	0.32
3x120	12.9	1.2	2.1	39.2	3944	1748	0.153	0.253
3x150	14.2	1.4	2.3	42.9	4884	2148	0.124	0.206
3x185	15.9	1.6	2.4	47.6	6003	2629	0.0991	0.164
3x240	18.3	1.7	2.6	53.6	7715	3337	0.0754	0.125
3x300	20.4	1.8	2.8	59.6	9677	4141	0.0601	0.1
3x400	23.6	2	3	66.5	12666	5319	0.047	0.0778
3x500	26.4	2.2	3.2	73.8	15749	6567	0.0366	0.0605

Four Cores XLPE Insulation Power Cable
Cross section	Conductor Dia (Approx.)	XLPE insulation thickness	PVC sheath thickness	Overall Dia. (Approx.)	Weight of cable(Approx.)		DC Resistance at 20°C Max
Cross section	Conductor Dia (Approx.)	XLPE insulation thickness	PVC sheath thickness	Overall Dia. (Approx.)	Copper	Aluminum	Copper	Aluminum
mm²	mm	mm	mm	mm	kg/km	kg/km	Ω/km	Ω/km
4x1.5	1.38	0.7	1.8	10.8	160		12.1
4x2.5	1.78	0.7	1.8	11.7	209	148	7.41
4x4	2.23	0.7	1.8	12.8	294	195	4.61
4x6	2.76	0.7	1.8	14.1	388	239	3.08
4x10	4.05	0.7	1.8	17.1	581	338	1.83	3.08
4x16	5.1	0.7	1.8	19.5	832	443	1.15	1.91
4x25	5.9	0.9	1.8	23.7	1231	617	0.727	1.2
4x35	6.9	0.9	1.8	25.3	1589	748	0.524	0.868
4x50	8.1	1	1.8	29.2	2161	972	0.387	0.641
4x70	9.7	1.1	2.0	34.2	3086	1387	0.268	0.443
4x95	11.4	1.1	2.1	39.2	4109	1803	0.193	0.32
4x120	12.9	1.2	2.3	43.7	5174	2246	0.153	0.253
4x150	14.2	1.4	2.4	47.6	6386	2738	0.124	0.206
4x185	15.9	1.6	2.6	53.0	7879	3379	0.0991	0.164
4x240	18.3	1.7	2.8	59.7	10125	4288	0.0754	0.125
4x300	20.4	1.8	3	66.4	12678	5311	0.0601	0.1
4x400	23.6	2	3.3	74.3	16642	6865	0.047	0.0778
4x500	26.4	2.2	3.5	82.4	20692	8473	0.0366	0.0605

Five Cores XLPE Insulation Power Cable
Cross section	Conductor Dia (Approx.)	XLPE insulation thickness	PVC sheath thickness	Overall Dia. (Approx.)	Weight of cable(Approx.)		DC Resistance at 20°C Max
Cross section	Conductor Dia (Approx.)	XLPE insulation thickness	PVC sheath thickness	Overall Dia. (Approx.)	Copper	Aluminum	Copper	Aluminum
mm²	mm	mm	mm	mm	kg/km	kg/km	Ω/km	Ω/km
5x1.5	1.38	0.7	1.8	11.5	187		12.1
5x2.5	1.78	0.7	1.8	12.6	247	170	7.41
5x4	2.23	0.7	1.8	13.9	333	211	4.61
5x6	2.76	0.7	1.8	15.2	448	262	3.08
5x10	4.05	0.7	1.8	18.6	678	373	1.83	3.08
5x16	5.1	0.7	1.8	21.3	989	502	1.15	1.91
5x25	5.9	0.9	1.8	25.9	1504	735	0.727	1.2
5x35	6.9	0.9	1.8	28.4	1966	912	0.524	0.868
5x50	8.1	1	1.9	32.2	2676	1213	0.387	0.641
5x70	9.7	1.1	2.1	37.8	3814	1686	0.268	0.443
5x95	11.4	1.1	2.2	43.4	5083	2195	0.193	0.32
5x120	12.9	1.2	2.4	48.4	6401	2741	0.153	0.253
5x150	14.2	1.4	2.6	52.8	7929	3369	0.124	0.206
5x185	15.9	1.6	2.8	58.9	9779	4155	0.0991	0.164
5x240	18.3	1.7	3	66.3	12567	5271	0.0754	0.125
5x300	20.4	1.8	3.2	73.7	15764	6537	0.0601	0.1
5x400	23.6	2	3.5	82.4	20659	8438	0.047	0.0778
5x500	26.4	2.2	3.8	91.7	25732	10459	0.0366	0.0605

Three CoresXLPE Insulation Power Cable with One Neutral Core
Cross section		Conductor Dia (Approx.)		XLPE insulation thickness		PVC sheath thickness	Overall Dia. (Approx.)	Weight of cable(Approx.)		DC Resistance at 20°C Max (Phase)
Cross section		Conductor Dia (Approx.)		XLPE insulation thickness				Copper	Aluminum	Copper	Aluminum
Phase	Earth	Phase	Earth	Phase	Earth			kg/km	kg/km	Ω/km	Ω/km
mm²	mm²	mm	mm	mm	mm	mm	mm	kg/km	kg/km	Ω/km	Ω/km
3x2.5	1x1.5	1.78	1.38	0.7	0.7	1.8	11.5	197		7.41
3x4	1x2.5	2.23	1.78	0.7	0.7	1.8	12.6	262	173	4.61
3x6	1x4	2.76	2.23	0.7	0.7	1.8	13.8	349	213	3.08
3x10	1x6	4.05	2.76	0.7	0.7	1.8	16.4	511	291	1.83	3.08
3x16	1x10	5.1	4.05	0.7	0.7	1.8	18.9	748	394	1.15	1.91
3x25	1x16	5.9	5.1	0.9	0.7	1.8	22.0	1062	536	0.727	1.2
3x35	1x16	6.9	5.1	0.9	0.7	1.8	24.0	1436	678	0.524	0.868
3x50	1x25	8.1	5.9	1	0.9	1.8	27.6	1917	884	0.387	0.641
3x70	1x35	9.7	6.9	1.1	0.9	1.9	32.1	2701	1211	0.268	0.443
3x95	1x50	11.4	8.1	1.1	1	2.1	36.9	3633	1596	0.193	0.32
3x120	1x70	12.9	9.7	1.2	1.1	2.2	41.3	4627	2005	0.153	0.253
3x150	1x70	14.2	9.7	1.4	1.1	2.3	44.2	5529	2367	0.124	0.206
3x185	1x95	15.9	11.4	1.6	1.1	2.5	49.6	6905	2953	0.0991	0.164
3x240	1x120	18.3	12.9	1.7	1.2	2.7	55.8	8846	3737	0.0754	0.125
3x300	1x150	20.4	14.2	1.8	1.4	2.9	61.8	11074	4625	0.0601	0.1
3x400	1x185	23.6	15.9	2	1.6	3.1	68.9	14419	5947	0.047	0.0778

Three Cores XLPE Insulation Power Cable with Two Neutral Cores
Cross section		Conductor Dia (Approx.)		XLPE insulation thickness		PVC sheath thickness	Overall Dia. (Approx.)	Weight of cable(Approx.)		DC Resistance at 20°C Max (Phase)
Cross section		Conductor Dia (Approx.)		XLPE insulation thickness				Copper	Aluminum	Copper	Aluminum
Phase	Earth	Phase	Earth	Phase	Earth			kg/km	kg/km	Ω/km	Ω/km
mm²	mm²	mm	mm	mm	mm	mm	mm	kg/km	kg/km	Ω/km	Ω/km
3x2.5	2x1.5	1.78	1.38	0.7	0.7	1.8	12.2	223		7.41
3x4	2x2.5	2.23	1.78	0.7	0.7	1.8	13.3	299	194	4.61
3x6	2x4	2.76	2.23	0.7	0.7	1.8	14.7	402	241	3.08
3x10	2x6	4.05	2.76	0.7	0.7	1.8	17.3	585	327	1.83	3.08
3x16	2x10	5.1	4.05	0.7	0.7	1.8	20.3	864	449	1.15	1.91
3x25	2x16	5.9	5.1	0.9	0.7	1.8	24.1	1294	639	0.727	1.2
3x35	2x16	6.9	5.1	0.9	0.7	1.8	25.5	1573	743	0.524	0.868
3x50	2x25	8.1	5.9	1	0.9	1.9	30.0	2220	1031	0.387	0.641
3x70	2x35	9.7	6.9	1.1	0.9	2	34.2	3080	1377	0.268	0.443
3x95	2x50	11.4	8.1	1.1	1	2.2	39.2	4158	1817	0.193	0.32
3x120	2x70	12.9	9.7	1.2	1.1	2.3	44.2	5355	2308	0.153	0.253
3x150	2x70	14.2	9.7	1.4	1.1	2.4	47.0	6266	2679	0.124	0.206
3x185	2x95	15.9	11.4	1.6	1.1	2.6	52.8	7876	3346	0.0991	0.164
3x240	2x120	18.3	12.9	1.7	1.2	2.8	59.2	10067	4225	0.0754	0.125
3x300	2x150	20.4	14.2	1.8	1.4	3	65.4	12524	5205	0.0601	0.1
3x400	2x185	23.6	15.9	2	1.6	3.3	73.2	16160	6647	0.047	0.0778

Four Cores XLPE Insulation Power Cable with One Neutral Core
Cross section		Conductor Dia (Approx.)		XLPE insulation thickness		PVC sheath thickness	Overall Dia. (Approx.)	Weight of cable(Approx.)		DC Resistance at 20°C Max (Phase)
Cross section		Conductor Dia (Approx.)		XLPE insulation thickness				Copper	Aluminum	Copper	Aluminum
Phase	Earth	Phase	Earth	Phase	Earth			kg/km	kg/km	Ω/km	Ω/km
mm²	mm²	mm	mm	mm	mm	mm	mm	kg/km	kg/km	Ω/km	Ω/km
4x2.5	1x1.5	1.78	1.38	0.7	0.7	1.8	12.6	232		7.41
4x4	1x2.5	2.23	1.78	0.7	0.7	1.8	13.6	317	203	4.61
4x6	1x4	2.76	2.23	0.7	0.7	1.8	14.9	425	251	3.08
4x10	1x6	4.05	2.76	0.7	0.7	1.8	17.9	632	350	1.83	3.08
4x16	1x10	5.1	4.05	0.7	0.7	1.8	20.8	926	475	1.15	1.91
4x25	1x16	5.9	5.1	0.9	0.7	1.8	25.0	1399	686	0.727	1.2
4x35	1x16	6.9	5.1	0.9	0.7	1.8	26.9	1772	828	0.524	0.868
4x50	1x25	8.1	5.9	1	0.9	1.9	31.1	2437	1118	0.387	0.641
4x70	1x35	9.7	6.9	1.1	0.9	2.1	36.1	3454	1539	0.268	0.443
4x95	1x50	11.4	8.1	1.1	1	2.2	41.3	4619	2004	0.193	0.32
4x120	1x70	12.9	9.7	1.2	1.1	2.4	46.4	5887	2534	0.153	0.253
4x150	1x70	14.2	9.7	1.4	1.1	2.5	49.8	7085	3011	0.124	0.206
4x185	1x95	15.9	11.4	1.6	1.1	2.7	55.8	8822	3745	0.0991	0.164
4x240	1x120	18.3	12.9	1.7	1.2	2.9	62.8	11310	4741	0.0754	0.125
4x300	1x150	20.4	14.2	1.8	1.4	3.2	69.8	13980	5806	0.0601	0.1
4x400	1x185	23.6	15.9	2	1.6	3.4	77.8	18358	7479	0.047	0.0778
