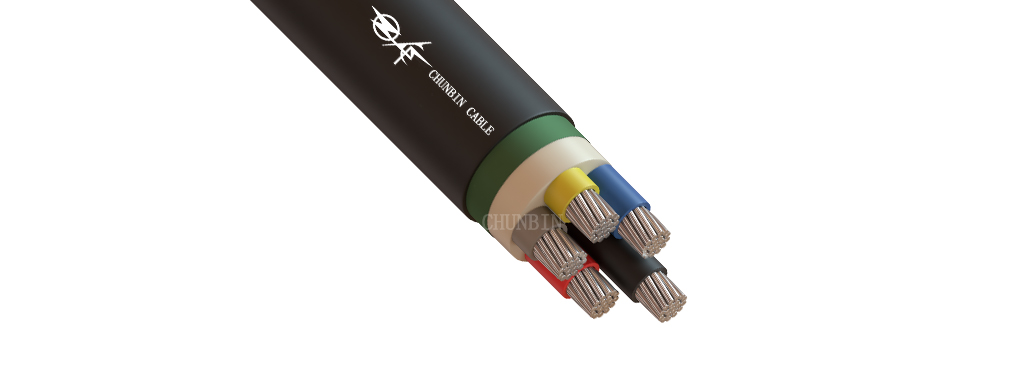

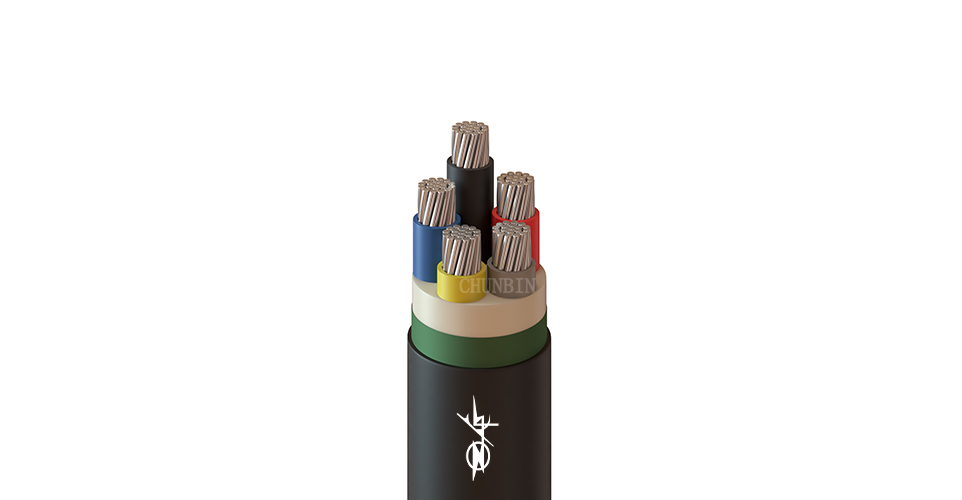

0.6/1kV PVC insulation power cable

Technical parameter

Single Core PVC Insulation Power Cable

Two Cores PVC Insulation Power Cable

Three Cores PVC Insulation Power Cable

Four Cores PVC Insulation Power Cable

Five Cores PVC Insulation Power Cable

Three Cores PVC Insulation Power Cable with One Neutral Core

Three Cores PVC Insulation Power Cable with Two Neutral Cores

Four Cores PVC Insulation Power Cable with One Neutral Core

Single Core PVC Insulation Power Cable
Cross section	Conductor Dia (Approx.)	PVC insulation thickness	PVC sheath thickness	Overall Dia. (Approx.)	Weight of cable(Approx.)		DC Resistance at 20°C Max
Cross section	Conductor Dia (Approx.)	PVC insulation thickness	PVC sheath thickness	Overall Dia. (Approx.)	Copper	Aluminum	Copper	Aluminum
mm²	mm	mm	mm	mm	kg/km	kg/km	Ω/km	Ω/km
1.5	1.38	0.8	1.4	5.8	50		12.1
2.5	1.78	0.8	1.4	6.2	63	47	7.41
4	2.23	1	1.4	7.1	87	62	4.61
6	2.76	1	1.4	7.6	110	75	3.08
10	4.05	1	1.4	8.5	157	98	1.83	3.08
16	5.1	1	1.4	10	227	125	1.15	1.91
25	5.9	1.2	1.4	11.6	336	168	0.727	1.2
35	6.9	1.2	1.4	12.7	437	206	0.524	0.868
50	8.1	1.4	1.4	14.3	562	266	0.387	0.641
70	9.7	1.4	1.4	16	768	343	0.268	0.443
95	11.4	1.6	1.5	18.5	1049	459	0.193	0.32
120	12.9	1.6	1.5	20	1280	546	0.153	0.253
150	14.2	1.8	1.6	22.5	1275	666	0.124	0.206
185	15.9	2	1.7	24.5	1959	812	0.0991	0.164
240	18.3	2.2	1.8	28	2538	1040	0.0754	0.125
300	20.4	2.4	1.9	31	3157	1278	0.0601	0.1
400	23.2	2.6	2	34	3995	1614	0.047	0.0778
500	26.3	2.8	2.1	38	5075	2012	0.0366	0.0605
630	30	2.8	2.3	43	6449	2514	0.0283	0.0469

Cross section	Conductor Dia (Approx.)	PVC insulation thickness	PVC sheath thickness	Overall Dia. (Approx.)	Weight of cable(Approx.)		DC Resistance at 20°C Max
Cross section	Conductor Dia (Approx.)	PVC insulation thickness	PVC sheath thickness	Overall Dia. (Approx.)	Copper	Aluminum	Copper	Aluminum
mm²	mm	mm	mm	mm	kg/km	kg/km	Ω/km	Ω/km
2x1.5	1.38	0.8	1.8	10.0	127		12.1
2x2.5	1.78	0.8	1.8	10.8	157	126	7.41
2x4	2.23	1	1.8	12.5	218	168	4.61
2x6	2.76	1	1.8	13.5	273	198	3.08
2x10	4.05	1	1.8	16.1	390	268	1.83	3.08
2x16	5.1	1	1.8	18.1	536	341	1.15	1.91
2x25	5.9	1.2	1.8	21.5	785	477	0.727	1.2
2x35	6.9	1.2	1.8	23.3	992	570	0.524	0.868
2x50	8.1	1.4	1.8	26.5	1339	748	0.387	0.641
2x70	9.7	1.4	1.9	30.1	1825	973	0.268	0.443
2x95	11.4	1.6	2	35.1	2451	1296	0.193	0.32
2x120	12.9	1.6	2.1	38.3	3016	1552	0.153	0.253
2x150	14.2	1.8	2.2	41.5	3691	1867	0.124	0.206
2x185	15.9	2	2.4	46.1	4546	2296	0.0991	0.164
2x240	18.3	2.2	2.6	52.1	5840	2922	0.0754	0.125
2x300	20.4	2.4	2.7	57.9	7293	3602	0.0601	0.1

Cross section	Conductor Dia (Approx.)	PVC insulation thickness	PVC sheath thickness	Overall Dia. (Approx.)	Weight of cable(Approx.)		DC Resistance at 20°C Max
Cross section	Conductor Dia (Approx.)	PVC insulation thickness	PVC sheath thickness	Overall Dia. (Approx.)	Copper	Aluminum	Copper	Aluminum
mm²	mm	mm	mm	mm	kg/km	kg/km	Ω/km	Ω/km
3x1.5	1.38	0.8	1.8	14.3	219		12.1
3x2.5	1.78	0.8	1.8	16.2	280	234	7.41
3x4	2.23	1	1.8	18.6	382	307	4.61
3x6	2.76	1	1.8	15.0	364	250	3.08
3x10	4.05	1	1.8	17.0	504	320	1.83	3.08
3x16	5.1	1	1.8	19.2	707	414	1.15	1.91
3x25	5.9	1.2	1.8	22.8	1049	588	0.727	1.2
3x35	6.9	1.2	1.8	24.8	1342	709	0.524	0.868
3x50	8.1	1.4	1.8	28.3	1813	935	0.387	0.641
3x70	9.7	1.4	1.9	32.1	2505	1229	0.268	0.443
3x95	11.4	1.6	2.1	37.7	3389	1656	0.193	0.32
3x120	12.9	1.6	2.2	41.2	4185	1989	0.153	0.253
3x150	14.2	1.8	2.3	44.6	5142	2406	0.124	0.206
3x185	15.9	2	2.5	49.5	6331	2957	0.0991	0.164
3x240	18.3	2.2	2.7	56.0	8143	3765	0.0754	0.125
3x300	20.4	2.4	2.8	62.2	10188	4652	0.0601	0.1
3x400	23.6	2.6	3.1	69.3	13295	5948	0.047	0.0778
3x500	26.4	2.8	3.3	76.6	16477	7295	0.0366	0.0605

Cross section	Conductor Dia (Approx.)	PVC insulation thickness	PVC sheath thickness	Overall Dia. (Approx.)	Weight of cable(Approx.)		DC Resistance at 20°C Max
Cross section	Conductor Dia (Approx.)	PVC insulation thickness	PVC sheath thickness	Overall Dia. (Approx.)	Copper	Aluminum	Copper	Aluminum
mm²	mm	mm	mm	mm	kg/km	kg/km	Ω/km	Ω/km
4x1.5	1.38	0.8	1.8	11.2	181		12.1
4x2.5	1.78	0.8	1.8	12.2	233	171	7.41
4x4	2.23	1	1.8	14.3	335	236	4.61
4x6	2.76	1	1.8	15.5	433	284	3.08
4x10	4.05	1	1.8	18.6	634	390	1.83	3.08
4x16	5.1	1	1.8	21.0	1242	613	1.15	1.91
4x25	5.9	1.2	1.8	25.1	1341	728	0.727	1.2
4x35	6.9	1.2	1.8	26.8	1712	871	0.524	0.868
4x50	8.1	1.4	1.9	31.3	2353	1164	0.387	0.641
4x70	9.7	1.4	2.0	35.6	3259	1560	0.268	0.443
4x95	11.4	1.6	2.2	41.8	4409	2103	0.193	0.32
4x120	12.9	1.6	2.3	45.7	5451	2523	0.153	0.253
4x150	14.2	1.8	2.5	49.7	6729	3081	0.124	0.206
4x185	15.9	2	2.6	55.0	8257	3758	0.0991	0.164
4x240	18.3	2.2	2.9	62.4	10654	4817	0.0754	0.125
4x300	20.4	2.4	3.1	69.5	13347	5981	0.0601	0.1
4x400	23.6	2.6	3.4	77.4	17421	7644	0.047	0.0778
4x500	26.4	2.8	3.6	85.5	21592	9373	0.0366	0.0605

Cross section	Conductor Dia (Approx.)	PVC insulation thickness	PVC sheath thickness	Overall Dia. (Approx.)	Weight of cable(Approx.)		DC Resistance at 20°C Max
Cross section	Conductor Dia (Approx.)	PVC insulation thickness	PVC sheath thickness	Overall Dia. (Approx.)	Copper	Aluminum	Copper	Aluminum
mm²	mm	mm	mm	mm	kg/km	kg/km	Ω/km	Ω/km
5x1.5	1.38	0.8	1.8	12.1	212		12.1
5x2.5	1.78	0.8	1.8	13.1	276	199	7.41
5x4	2.23	1	1.8	15.5	401	278	4.61
5x6	2.76	1	1.8	16.8	521	335	3.08
5x10	4.05	1	1.8	20.3	769	464	1.83	3.08
5x16	5.1	1	1.8	23.0	1095	607	1.15	1.91
5x25	5.9	1.2	1.8	27.5	1645	876	0.727	1.2
5x35	6.9	1.2	1.9	30.2	2135	1082	0.524	0.868
5x50	8.1	1.4	2.0	34.6	2913	1449	0.387	0.641
5x70	9.7	1.4	2.2	39.6	4058	1930	0.268	0.443
5x95	11.4	1.6	2.3	46.3	5464	2576	0.193	0.32
5x120	12.9	1.6	2.5	50.7	6783	3124	0.153	0.253
5x150	14.2	1.8	2.6	55.0	8346	3786	0.124	0.206
5x185	15.9	2	2.8	61.0	10273	4649	0.0991	0.164
5x240	18.3	2.2	3.1	69.2	13250	5954	0.0754	0.125
5x300	20.4	2.4	3.3	77.2	16628	7401	0.0601	0.1
5x400	23.6	2.6	3.6	85.9	21665	9444	0.047	0.0778
5x500	26.4	2.8	3.9	95.1	26900	11627	0.0366	0.0605

Cross section		Conductor Dia (Approx.)		PVC insulation thickness		PVC sheath thickness	Overall Dia. (Approx.)	Weight of cable(Approx.)		DC Resistance at 20°C Max (Phase)
Cross section		Conductor Dia (Approx.)		PVC insulation thickness				Copper	Aluminum	Copper	Aluminum
Phase	Earth	Phase	Earth	Phase	Earth			kg/km	kg/km	Ω/km	Ω/km
mm²	mm²	mm	mm	mm	mm	mm	mm	kg/km	kg/km	Ω/km	Ω/km
3x2.5	1x1.5	1.78	1.38	0.8	0.8	1.8	11.9	220		7.41
3x4	1x2.5	2.23	1.78	1	0.8	1.8	13.8	309	220	4.61
3x6	1x4	2.76	2.23	1	1	1.8	15.2	408	272	3.08
3x10	1x6	4.05	2.76	1	1	1.8	17.8	582	362	1.83	3.08
3x16	1x10	5.1	4.05	1	1	1.8	20.4	831	477	1.15	1.91
3x25	1x16	5.9	5.1	1.2	1	1.8	23.5	1166	640	0.727	1.2
3x35	1x16	6.9	5.1	1.2	1	1.8	25.4	1553	795	0.524	0.868
3x50	1x25	8.1	5.9	1.4	1.2	1.8	28.0	2054	1021	0.387	0.641
3x70	1x35	9.7	6.9	1.4	1.2	1.8	33.4	2852	1362	0.268	0.443
3x95	1x50	11.4	8.1	1.6	1.4	1.9	38.8	3857	1820	0.193	0.32
3x120	1x70	12.9	9.7	1.6	1.4	2.0	42.7	4846	2224	0.153	0.253
3x150	1x70	14.2	9.7	1.8	1.4	2.1	45.6	5779	2617	0.124	0.206
3x185	1x95	15.9	11.4	2	1.6	2.2	51.1	7202	3250	0.0991	0.164
3x240	1x120	18.3	12.9	2.2	1.6	2.4	57.5	9225	4115	0.0754	0.125
3x300	1x150	20.4	14.2	2.4	1.8	2.5	63.7	11529	5081	0.0601	0.1
3x400	1x185	23.6	15.9	2.6	2	2.8	71.0	14960	6488	0.047	0.0778

Three Cores PVC Insulation Power Cable with Two Neutral Cores
Cross section		Conductor Dia (Approx.)		PVC insulation thickness		PVC sheath thickness	Overall Dia. (Approx.)	Weight of cable(Approx.)		DC Resistance at 20°C Max (Phase)
Cross section		Conductor Dia (Approx.)		PVC insulation thickness				Copper	Aluminum	Copper	Aluminum
Phase	Earth	Phase	Earth	Phase	Earth			kg/km	kg/km	Ω/km	Ω/km
mm²	mm²	mm	mm	mm	mm	mm	mm	kg/km	kg/km	Ω/km	Ω/km
3x2.5	2x1.5	1.78	1.38	0.8	0.8	1.8	12.7	250		7.41
3x4	2x2.5	2.23	1.78	1	0.8	1.8	14.5	350	245	4.61
3x6	2x4	2.76	2.23	1	1	1.8	16.3	473	312	3.08
3x10	2x6	4.05	2.76	1	1	1.8	18.9	669	411	1.83	3.08
3x16	2x10	5.1	4.05	1	1	1.8	21.9	964	549	1.15	1.91
3x25	2x16	5.9	5.1	1.2	1	1.8	25.7	1421	765	0.727	1.2
3x35	2x16	6.9	5.1	1.2	1	1.8	27.2	1708	878	0.524	0.868
3x50	2x25	8.1	5.9	1.4	1.2	2.0	32.1	2423	1234	0.387	0.641
3x70	2x35	9.7	6.9	1.4	1.2	2.1	36.0	3294	1592	0.268	0.443
3x95	2x50	11.4	8.1	1.6	1.4	2.3	41.8	4481	2140	0.193	0.32
3x120	2x70	12.9	9.7	1.6	1.4	2.4	46.3	5680	2633	0.153	0.253
3x150	2x70	14.2	9.7	1.8	1.4	2.5	48.9	6612	3025	0.124	0.206
3x185	2x95	15.9	11.4	2	1.6	2.7	55.3	8345	3815	0.0991	0.164
3x240	2x120	18.3	12.9	2.2	1.6	2.9	61.9	10627	4785	0.0754	0.125
3x300	2x150	20.4	14.2	2.4	1.8	3.1	68.4	13213	5893	0.0601	0.1
3x400	2x185	23.6	15.9	2.6	2	3.4	76.2	16967	7454	0.047	0.0778

Four Cores PVC Insulation Power Cable with One Neutral Core
Cross section		Conductor Dia (Approx.)		PVC insulation thickness		PVC sheath thickness	Overall Dia. (Approx.)	Weight of cable(Approx.)		DC Resistance at 20°C Max (Phase)
Cross section		Conductor Dia (Approx.)		PVC insulation thickness				Copper	Aluminum	Copper	Aluminum
Phase	Earth	Phase	Earth	Phase	Earth			kg/km	kg/km	Ω/km	Ω/km
mm²	mm²	mm	mm	mm	mm	mm	mm	kg/km	kg/km	Ω/km	Ω/km
4x2.5	1x1.5	1.78	1.38	0.8	0.8	1.8	13.1	254		7.41
4x4	1x2.5	2.23	1.78	1	0.8	1.8	15.0	375	261	4.61
4x6	1x4	2.76	2.23	1	1	1.8	16.6	497	324	3.08
4x10	1x6	4.05	2.76	1	1	1.8	19.6	719	437	1.83	3.08
4x16	1x10	5.1	4.05	1	1	1.8	22.4	1029	578	1.15	1.91
4x25	1x16	5.9	5.1	1.2	1	1.8	26.6	1533	820	0.727	1.2
4x35	1x16	6.9	5.1	1.2	1	1.9	28.8	1931	986	0.524	0.868
4x50	1x25	8.1	5.9	1.4	1.2	2.0	33.4	2656	1337	0.387	0.641
4x70	1x35	9.7	6.9	1.4	1.2	2.2	37.9	3683	1768	0.268	0.443
4x95	1x50	11.4	8.1	1.6	1.4	2.4	44.3	4991	2377	0.193	0.32
4x120	1x70	12.9	9.7	1.6	1.4	2.5	48.6	6241	2888	0.153	0.253
4x150	1x70	14.2	9.7	1.8	1.4	2.6	52.1	7486	3413	0.124	0.206
4x185	1x95	15.9	11.4	2	1.6	2.8	58.3	9318	4241	0.0991	0.164
4x240	1x120	18.3	12.9	2.2	1.6	3.1	65.7	11962	5393	0.0754	0.125
4x300	1x150	20.4	14.2	2.4	1.8	3.3	73.0	14752	6577	0.0601	0.1
4x400	1x185	23.6	15.9	2.6	2	3.6	81.2	19297	8418	0.047	0.0778
