3.6/6(7.2)kV XLPE insulation power cable

Introduction

Application
Indoors, cable trunking, outdoors and burried in the ground, for power stations, industry and switchgear as well as for urban supply networks, if mechanical damage is unlikely.
Structure
Conductor + Semi-conducting Conductor Screen + XLPE Insulation + Semi-conducting Insulation Screen + Metal Screen + Non-woven fabric tape + PVC Sheath
Standard
IEC 60502-2, GB/T 12706.2, NF C33-226

Technical parameter

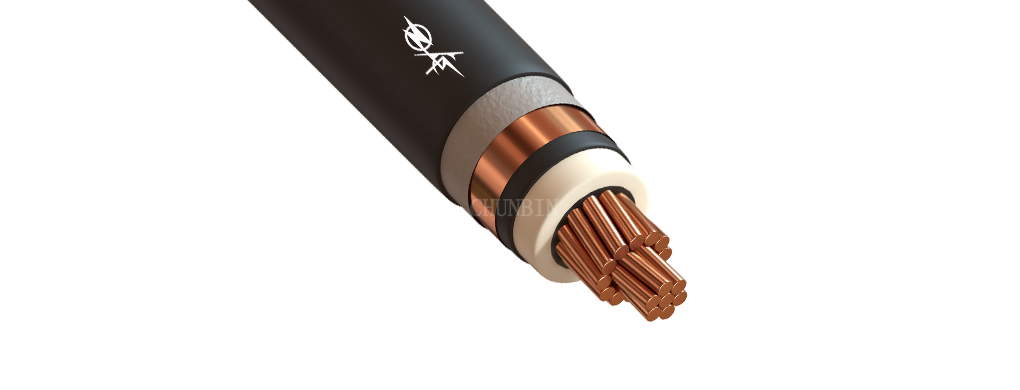

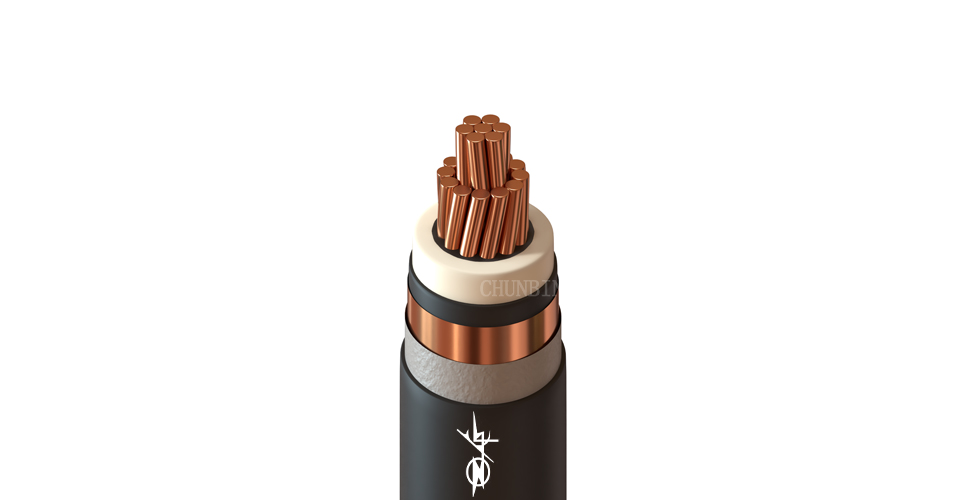

3.6/6(7.2)kV Single Core XLPE Insulation Power Cable

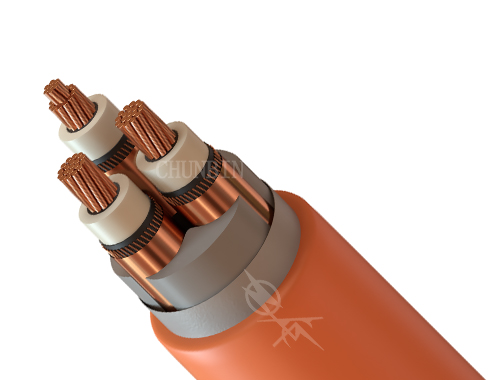

3.6/6(7.2)kV Three Cores XLPE Insulation Power Cable

3.6/6(7.2)kV Single Core XLPE Insulation Power Cable
Cross section	Conductor Dia (Approx.)	XLPE insulation thickness	PVC sheath thickness	Overall Dia. (Approx.)	Weight of cable(Approx.)		DC Resistance at 20°C Max
Cross section	Conductor Dia (Approx.)	XLPE insulation thickness	PVC sheath thickness	Overall Dia. (Approx.)	Copper	Aluminum	Copper	Aluminum
mm²	mm	mm	mm	mm	kg/km	kg/km	Ω/km	Ω/km
25	5.9	2.5	1.8	17.8	521	370	0.727	1.2
35	6.9	2.5	1.8	18.8	631	420	0.524	0.868
50	8.1	2.5	1.8	20.0	767	482	0.387	0.641
70	9.7	2.5	1.8	21.6	992	578	0.268	0.443
95	11.4	2.5	1.8	23.3	1261	688	0.193	0.32
120	12.9	2.5	1.8	24.8	1515	791	0.153	0.253
150	14.2	2.5	1.8	26.1	1783	895	0.124	0.206
185	15.9	2.5	1.9	28.0	2160	1047	0.0991	0.164
240	18.3	2.6	1.9	30.6	2729	1269	0.0754	0.125
300	20.4	2.8	2.0	33.3	3344	1519	0.0601	0.1
400	23.6	3.0	2.1	36.7	4237	1870	0.047	0.0778
500	26.4	3.2	2.3	41.3	5365	2348	0.0366	0.0605
630	30	3.2	2.4	45.2	6753	2862	0.0283	0.0469

3.6/6(7.2)kV Three Cores XLPE Insulation Power Cable
Cross section	Conductor Dia (Approx.)	XLPE insulation thickness	PVC sheath thickness	Overall Dia. (Approx.)	Weight of cable(Approx.)		DC Resistance at 20°C Max
Cross section	Conductor Dia (Approx.)	XLPE insulation thickness	PVC sheath thickness	Overall Dia. (Approx.)	Copper	Aluminum	Copper	Aluminum
mm²	mm	mm	mm	mm	kg/km	kg/km	Ω/km	Ω/km
3x25	5.9	2.5	2.1	35.2	1527	1070	0.727	1.2
3x35	6.9	2.5	2.2	37.6	1875	1240	0.524	0.868
3x50	8.1	2.5	2.3	40.4	2310	1450	0.387	0.641
3x70	9.7	2.5	2.4	44.2	3025	1773	0.268	0.443
3x95	11.4	2.5	2.5	48.1	3877	2148	0.193	0.32
3x120	12.9	2.5	2.6	51.6	4687	2500	0.153	0.253
3x150	14.2	2.5	2.7	54.7	5539	2857	0.124	0.206
3x185	15.9	2.5	2.8	58.7	6696	3335	0.0991	0.164
3x240	18.3	2.6	3.0	64.8	8512	4101	0.0754	0.125
3x300	20.4	2.8	3.2	70.7	10433	4919	0.0601	0.1
3x400	23.6	3	3.4	78.2	13241	6092	0.047	0.0778
