3.6/6(7.2)kV XLPE insulation armoured power cable

Introduction

Application
Indoors, cable trunking, outdoors and burried in the ground, for power stations, industry and switchgear as well as for urban supply networks
Structure

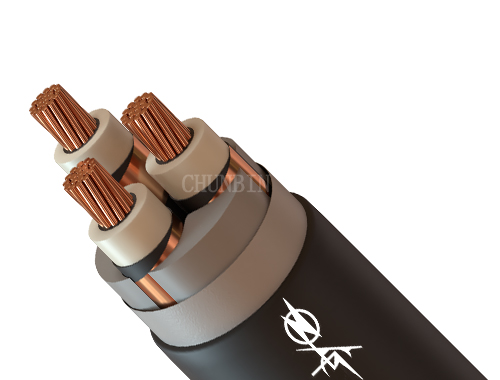

Conductor + Semi-conducting Conductor Screen + XLPE Insulation + Semi-conducting Insulation Screen + Metal Screen + Non-woven fabric tape + PVC Sheath
Standard
IEC 60502-2, GB/T 12706.2, NF C33-226
PS
The single core armored cables are used for D.C.system only. If used for A.C.system,the magnetic isolation should be applied on the steel armor wires of non-magnetical materials should be used.

Technical parameter

3.6/6(7.2)kV Single Core XLPE Insulation Aluminum Wire Armoured Power Cable

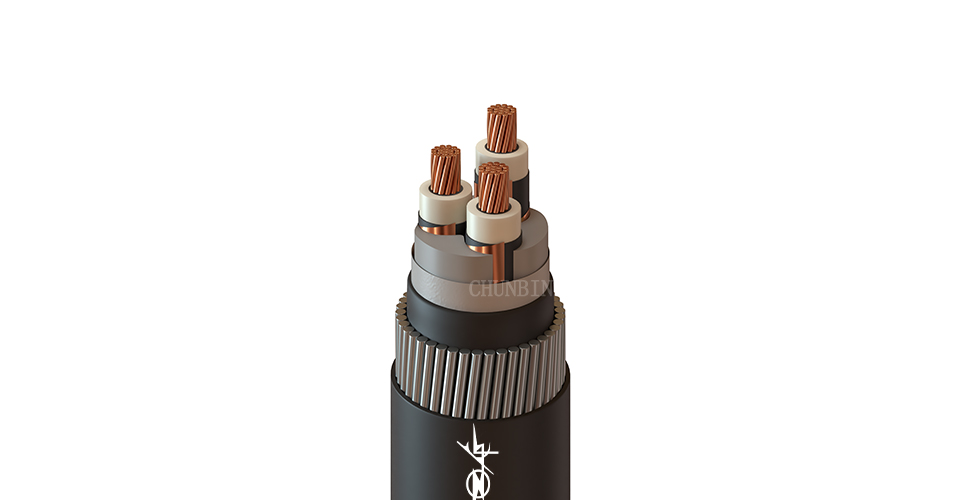

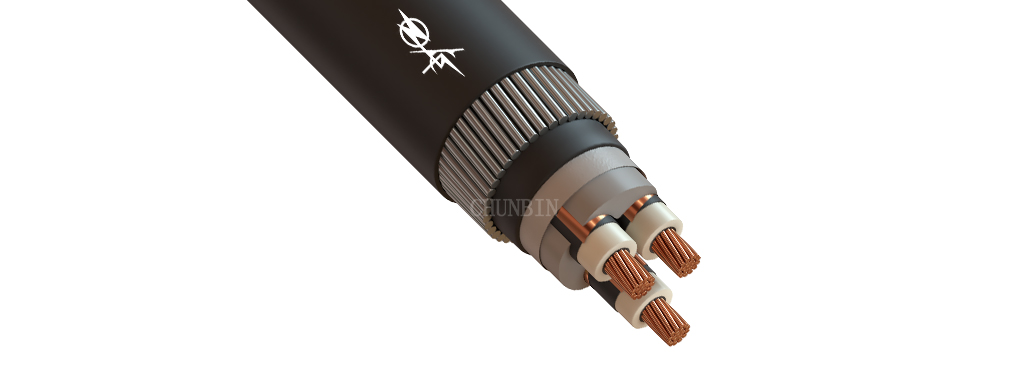

3.6/6(7.2)kV Three Cores XLPE Insulation Armoured Power Cable

3.6/6(7.2)kV Single Core XLPE Insulation Aluminum Wire Armoured Power Cable
Cross section	Conductor Dia (Approx.)	XLPE insulation thickness	Dia. (Thickness) of Armoured	PVC sheath thickness	Overall Dia. (Approx.)	Weight of cable(Approx.)		DC Resistance at 20°C Max
						Copper	Aluminum	Copper	Aluminum
			AWA	AWA	AWA	AWA	AWA
mm²	mm	mm	mm	mm	mm	kg/km	kg/km	Ω/km	Ω/km
35	6.9	2.5	1.6	1.8	24.9	999	784	0.524	0.868
50	8.1	2.5	1.6	1.8	26.1	1158	866	0.387	0.641
70	9.7	2.5	1.6	1.8	27.8	1413	995	0.268	0.443
95	11.4	2.5	1.6	1.9	29.7	1733	1150	0.193	0.32
120	12.9	2.5	1.6	1.9	31.1	2005	1274	0.153	0.253
150	14.2	2.5	1.6	2	33.0	2359	1441	0.124	0.206
185	15.9	2.5	2.0	2.1	35.8	2812	1706	0.0991	0.164
240	18.3	2.6	2.0	2.1	36.6	3217	1822	0.0754	0.125
300	20.4	2.8	2.0	2.2	40.7	4078	2264	0.0601	0.1
400	23.6	3.0	2.0	2.3	44.2	5078	2706	0.047	0.0778
500	26.4	3.2	2.5	2.5	49.4	6349	3380	0.0366	0.0605
630	30	3.2	2.5	2.6	53.6	7827	4013	0.0283	0.0469

3.6/6(7.2)kV Three Cores XLPE Insulation Armoured Power Cable
Cross section	Conductor Dia (Approx.)	XLPE insulation thickness	Dia. (Thickness) of Armoured		PVC sheath thickness		Overall Dia. (Approx.)		Weight of cable(Approx.)				DC Resistance at 20°C Max
			Dia. (Thickness) of Armoured		PVC sheath thickness		Overall Dia. (Approx.)		Copper		Aluminum		Copper	Aluminum
			STA	SWA	STA	SWA	STA	SWA	STA	SWA	STA	SWA	Copper	Aluminum
mm²	mm	mm	mm	mm	mm	mm	mm	mm	kg/km	kg/km	kg/km	kg/km	Ω/km	Ω/km
3x35	6.9	2.5	0.5	2	2.3	2.3	41.91	43.91	2885	3765	2237	3117	0.524	0.868
3x50	8.1	2.5	0.5	2	2.4	2.4	45.09	47.09	3456	4407	2574	3526	0.387	0.641
3x70	9.7	2.5	0.5	2.5	2.4	2.6	46.76	52.16	4215	5764	2978	4527	0.268	0.443
3x95	11.4	2.5	0.5	2.5	2.6	2.7	52.82	56.02	5266	6885	3507	5126	0.193	0.32
3x120	12.9	2.5	0.5	2.5	2.7	2.9	56.43	59.83	6200	7981	3996	5777	0.153	0.253
3x150	14.2	2.5	0.5	2.5	2.9	3	60.50	63.70	7335	9183	4565	6412	0.124	0.206
3x185	15.9	2.5	0.5	2.5	3	3.1	64.97	68.17	8530	10535	5195	7201	0.0991	0.164
3x240	18.3	2.6	0.5	2.5	3.2	3.3	70.53	73.73	10280	12431	6075	8225	0.0754	0.125
3x300	20.4	2.8	0.5	2.5	3.4	3.5	76.87	80.07	12669	15028	7197	9556	0.0601	0.1
