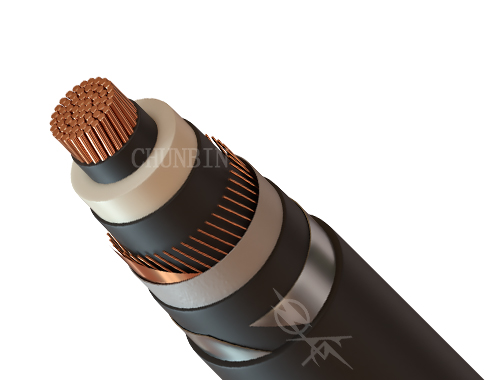

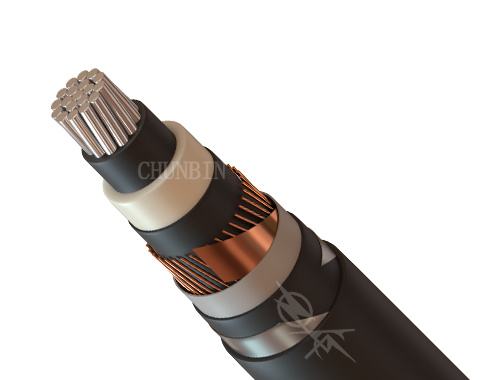

| 18/30(36)kV Single Core XLPE Insulation Power Cable | ||||||||
| Cross section | Conductor Dia (Approx.) | XLPE insulation thickness | PVC sheath thickness | Overall Dia. (Approx.) | Weight of cable(Approx.) | DC Resistance at 20°C Max | ||
| Copper | Aluminum | Copper | Aluminum | |||||
| mm² | mm | mm | mm | mm | kg/km | kg/km | Ω/km | Ω/km |
| 50 | 8.1 | 8.0 | 2 | 32.1 | 1441 | 1149 | 0.387 | 0.641 |
| 70 | 9.7 | 8.0 | 2 | 33.8 | 1701 | 1283 | 0.268 | 0.443 |
| 95 | 11.4 | 8.0 | 2.1 | 35.5 | 1844 | 1303 | 0.193 | 0.32 |
| 120 | 12.9 | 8.0 | 2.1 | 36.9 | 2174 | 1444 | 0.153 | 0.253 |
| 150 | 14.2 | 8.0 | 2.2 | 38.8 | 2536 | 1617 | 0.124 | 0.206 |
| 185 | 15.9 | 8.0 | 2.2 | 40.8 | 2907 | 1791 | 0.0991 | 0.164 |
| 240 | 18.3 | 8.0 | 2.3 | 43.0 | 3433 | 2025 | 0.0754 | 0.125 |
| 300 | 20.4 | 8.0 | 2.4 | 45.1 | 4147 | 2315 | 0.0601 | 0.1 |
| 400 | 23.6 | 8.0 | 2.5 | 48.0 | 5098 | 2713 | 0.047 | 0.0778 |
| 500 | 26.4 | 8.0 | 2.6 | 51.3 | 6136 | 3151 | 0.0366 | 0.0605 |
| 630 | 30 | 8.0 | 2.7 | 55.4 | 7566 | 3724 | 0.0283 | 0.0469 |

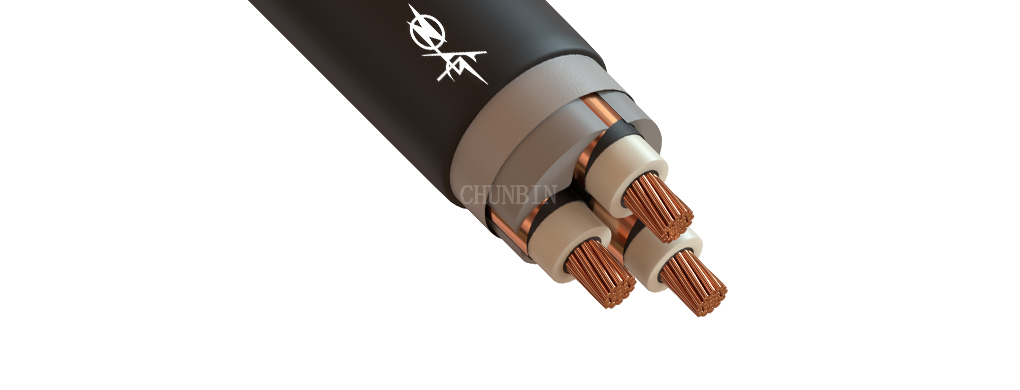

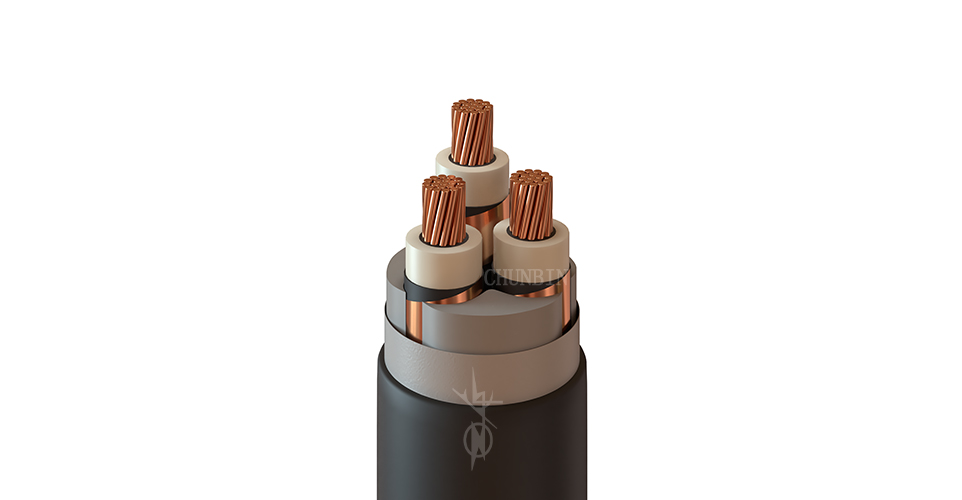

| 18/30(36)kV Three Cores XLPE Insulation Power Cable | ||||||||
| Cross section | Conductor Dia (Approx.) | XLPE insulation thickness | PVC sheath thickness | Overall Dia. (Approx.) | Weight of cable(Approx.) | DC Resistance at 20°C Max | ||
| Copper | Aluminum | Copper | Aluminum | |||||
| mm² | mm | mm | mm | mm | kg/km | kg/km | Ω/km | Ω/km |
| 3x50 | 8.1 | 8.0 | 3.0 | 65.2 | 4429 | 3548 | 0.387 | 0.641 |
| 3x70 | 9.7 | 8.0 | 3.2 | 69.3 | 5317 | 4057 | 0.268 | 0.443 |
| 3x95 | 11.4 | 8.0 | 3.3 | 73.1 | 6331 | 4588 | 0.193 | 0.32 |
| 3x120 | 12.9 | 8.0 | 3.4 | 76.3 | 7239 | 5057 | 0.153 | 0.253 |
| 3x150 | 14.2 | 8.0 | 3.5 | 80.2 | 8214 | 5586 | 0.124 | 0.206 |
| 3x185 | 15.9 | 8.0 | 3.7 | 84.5 | 9671 | 6305 | 0.0991 | 0.164 |
| 3x240 | 18.3 | 8.0 | 3.8 | 89.4 | 11571 | 7190 | 0.0754 | 0.125 |
| 3x300 | 20.4 | 8.0 | 4.0 | 93.9 | 13574 | 8115 | 0.0601 | 0.1 |
| 3x400 | 23.6 | 8.0 | 4.2 | 100.5 | 16780 | 9542 | 0.047 | 0.0778 |
