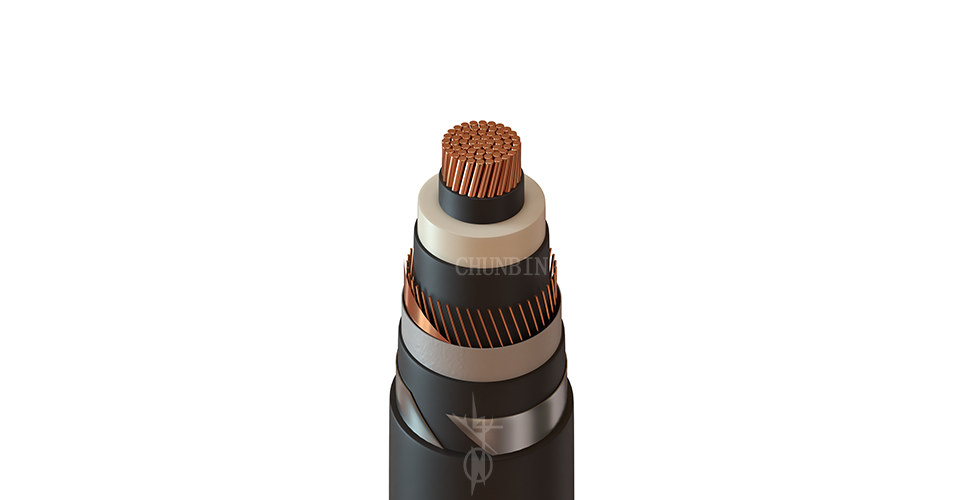

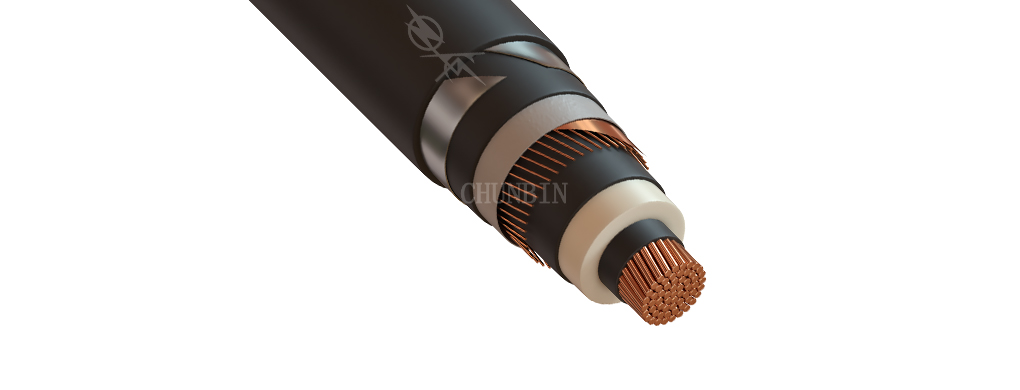

18/30(36)kV XLPE insulation armoured power cable

Introduction

Application
Indoors, cable trunking, outdoors and burried in the ground, for power stations, industry and switchgear as well as for urban supply networks
Structure
Conductor + Semi-conducting Conductor Screen + XLPE Insulation + Semi-conducting Insulation Screen + Metal Screen + Non-woven fabric tape + PVC Sheath
Standard
IEC 60502-2, GB/T 12706.2, NF C33-226
PS
The single core armored cables are used for D.C.system only. If used for A.C.system,the magnetic isolation should be applied on the steel armor wires of non-magnetical materials should be used.

Technical parameter

18/30(36)kV Single Core XLPE Insulation Aluminum Wire Armoured Power Cable

18/30(36)kV Three Cores XLPE Insulation Armoured Power Cable

18/30(36)kV Single Core XLPE Insulation Aluminum Wire Armoured Power Cable
Cross section	Conductor Dia (Approx.)	XLPE insulation thickness	Dia. (Thickness) of Armoured	PVC sheath thickness	Overall Dia. (Approx.)	Weight of cable(Approx.)		DC Resistance at 20°C Max
						Copper	Aluminum	Copper	Aluminum
			AWA	AWA	AWA	AWA	AWA
mm²	mm	mm	mm	mm	mm	kg/km	kg/km	Ω/km	Ω/km
50	8.1	8.0	2.0	2.2	38.7	1998	1706	0.387	0.641
70	9.7	8.0	2.0	2.2	40.4	2293	1871	0.268	0.443
95	11.4	8.0	2.0	2.3	42.3	2637	2059	0.193	0.32
120	12.9	8.0	2.0	2.3	43.7	2952	2221	0.153	0.253
150	14.2	8.0	2.5	2.4	46.6	3496	2577	0.124	0.206
185	15.9	8.0	2.5	2.5	48.6	3918	2802	0.0991	0.164
240	18.3	8.0	2.5	2.6	51.0	4512	3104	0.0754	0.125
300	20.4	8.0	2.5	2.7	53.5	5325	3494	0.0601	0.1
400	23.6	8.0	2.5	2.8	56.6	6365	3980	0.047	0.0778
500	26.4	8.0	2.5	2.9	60.2	7516	4532	0.0366	0.0605
630	30	8.0	2.5	3	64.2	9045	5203	0.0283	0.0469

18/30(36)kV Three Cores XLPE Insulation Armoured Power Cable
Cross section	Conductor Dia (Approx.)	XLPE insulation thickness	Dia. (Thickness) of Armoured		PVC sheath thickness		Overall Dia. (Approx.)		Weight of cable(Approx.)				DC Resistance at 20°C Max
			Dia. (Thickness) of Armoured		PVC sheath thickness		Overall Dia. (Approx.)		Copper		Aluminum		Copper	Aluminum
			STA	SWA	STA	SWA	STA	SWA	STA	SWA	STA	SWA	Copper	Aluminum
mm²	mm	mm	mm	mm	mm	mm	mm	mm	kg/km	kg/km	kg/km	kg/km	Ω/km	Ω/km
3x50	8.1	8.0	0.5	3.15	3.2	3.4	70.8	75.5	6078	9090	5197	8208	0.387	0.641
3x70	9.7	8.0	0.5	3.15	3.4	3.5	74.9	79.4	7063	10166	5803	8906	0.268	0.443
3x95	11.4	8.0	0.5	3.15	3.5	3.6	78.7	83.2	8171	11460	6429	9717	0.193	0.32
3x120	12.9	8.0	0.8	3.15	3.6	3.7	83.1	86.4	9941	12581	7758	10398	0.153	0.253
3x150	14.2	8.0	0.8	3.15	3.8	3.9	87.6	90.9	11339	14118	8596	11375	0.124	0.206
3x185	15.9	8.0	0.8	3.15	3.9	4	91.7	95.0	12738	15658	9373	12293	0.0991	0.164
3x240	18.3	8.0	0.8	3.15	4	4.2	96.0	99.5	14774	17876	10396	13497	0.0754	0.125
3x300	20.4	8.0	0.8	3.15	4.2	4.3	101.1	104.4	16971	20208	11511	14749	0.0601	0.1
