| 12/20(24)kV Single Core XLPE Insulation Power Cable | ||||||||
| Cross section | Conductor Dia (Approx.) | XLPE insulation thickness | PVC sheath thickness | Overall Dia. (Approx.) | Weight of cable(Approx.) | DC Resistance at 20°C Max | ||
| Copper | Aluminum | Copper | Aluminum | |||||
| mm² | mm | mm | mm | mm | kg/km | kg/km | Ω/km | Ω/km |
| 35 | 6.9 | 5.5 | 1.8 | 25.3 | 891 | 676 | 0.524 | 0.868 |
| 50 | 8.1 | 5.5 | 1.8 | 26.5 | 1044 | 751 | 0.387 | 0.641 |
| 70 | 9.7 | 5.5 | 1.8 | 28.1 | 1279 | 861 | 0.268 | 0.443 |
| 95 | 11.4 | 5.5 | 1.9 | 30.0 | 1538 | 990 | 0.193 | 0.32 |
| 120 | 12.9 | 5.5 | 1.9 | 31.5 | 1853 | 1122 | 0.153 | 0.253 |
| 150 | 14.2 | 5.5 | 2 | 33.0 | 2183 | 1264 | 0.124 | 0.206 |
| 185 | 15.9 | 5.5 | 2 | 34.7 | 2512 | 1406 | 0.0991 | 0.164 |
| 240 | 18.3 | 5.5 | 2.1 | 37.3 | 3029 | 1634 | 0.0754 | 0.125 |
| 300 | 20.4 | 5.5 | 2.2 | 39.6 | 3725 | 1910 | 0.0601 | 0.1 |
| 400 | 23.6 | 5.5 | 2.3 | 43.0 | 4662 | 2289 | 0.047 | 0.0778 |
| 500 | 26.4 | 5.5 | 2.4 | 46.0 | 5642 | 2673 | 0.0366 | 0.0605 |
| 630 | 30 | 5.5 | 2.5 | 49.8 | 7011 | 3198 | 0.0283 | 0.0469 |

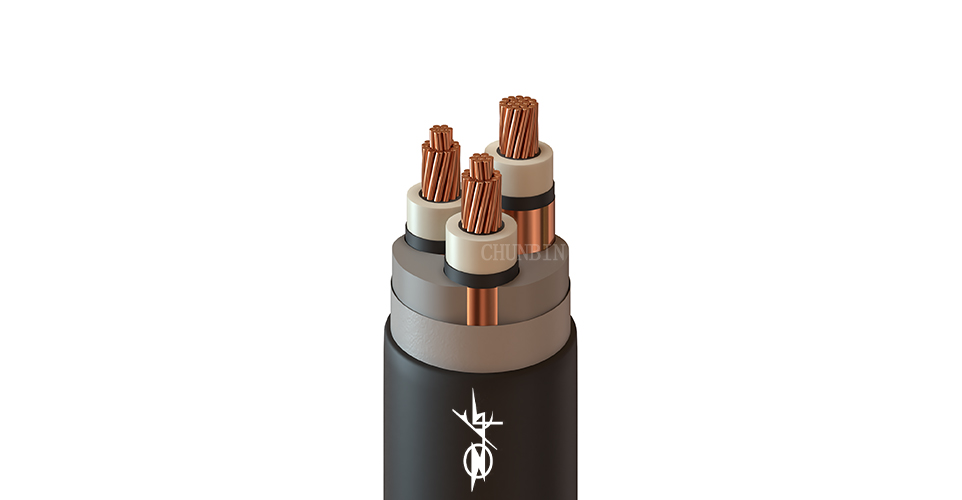

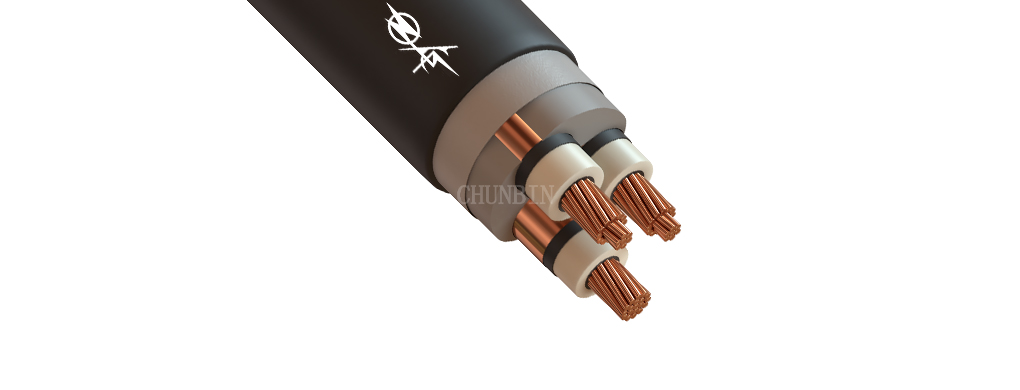

| 12/20(24)kV Three Cores XLPE Insulation Power Cable | ||||||||
| Cross section | Conductor Dia (Approx.) | XLPE insulation thickness | PVC sheath thickness | Overall Dia. (Approx.) | Weight of cable(Approx.) | DC Resistance at 20°C Max | ||
| Copper | Aluminum | Copper | Aluminum | |||||
| mm² | mm | mm | mm | mm | kg/km | kg/km | Ω/km | Ω/km |
| 3x35 | 6.9 | 5.5 | 2.6 | 51.0 | 2917 | 2269 | 0.524 | 0.868 |
| 3x50 | 8.1 | 5.5 | 2.7 | 53.8 | 3432 | 2551 | 0.387 | 0.641 |
| 3x70 | 9.7 | 5.5 | 2.8 | 57.5 | 4215 | 2955 | 0.268 | 0.443 |
| 3x95 | 11.4 | 5.5 | 2.9 | 61.3 | 5192 | 3432 | 0.193 | 0.32 |
| 3x120 | 12.9 | 5.5 | 3.0 | 64.8 | 6068 | 3864 | 0.153 | 0.253 |
| 3x150 | 14.2 | 5.5 | 3.1 | 67.8 | 6930 | 4276 | 0.124 | 0.206 |
| 3x185 | 15.9 | 5.5 | 3.3 | 71.8 | 8218 | 4883 | 0.0991 | 0.164 |
| 3x240 | 18.3 | 5.5 | 3.4 | 77.2 | 10113 | 5732 | 0.0754 | 0.125 |
| 3x300 | 20.4 | 5.5 | 3.6 | 82.1 | 12072 | 6613 | 0.0601 | 0.1 |
| 3x400 | 23.6 | 5.5 | 3.8 | 89.4 | 15219 | 7981 | 0.047 | 0.0778 |
