Rated voltage 10kV Overhead Insulated Cable

Introduction

Application

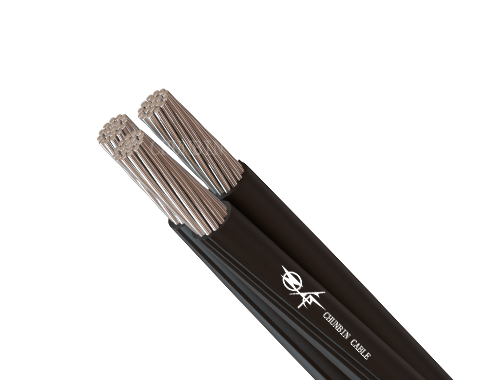

This standard applies of supported spacer cable. These conductors are intended primarily for the distribution of electrical energy under normal conditions of overhead (aerial) installations. They are considered as covered conductors therefore the cables carry no voltage rating. The conductors must be installed on insulators and/or spacers adequate for the service voltage. The user may want to give consideration to the dielectric compatibility of the covering, insulator, spacer.
Description

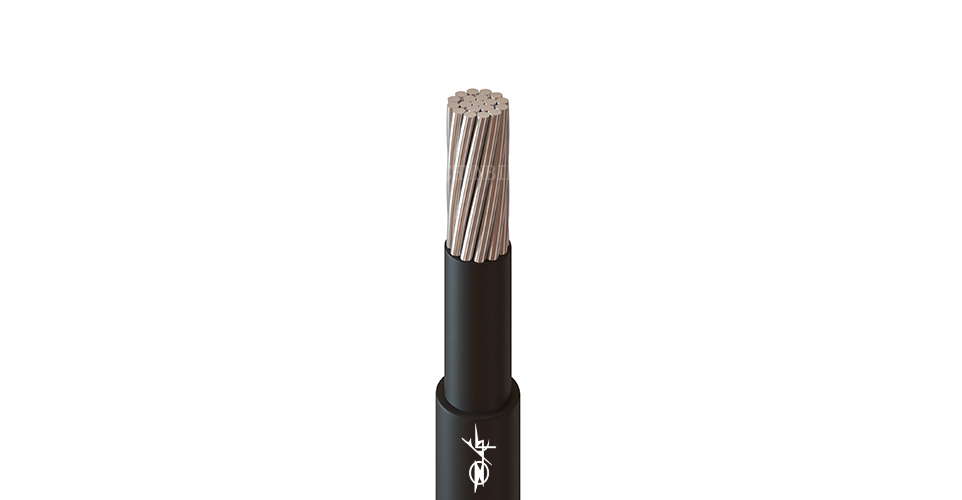

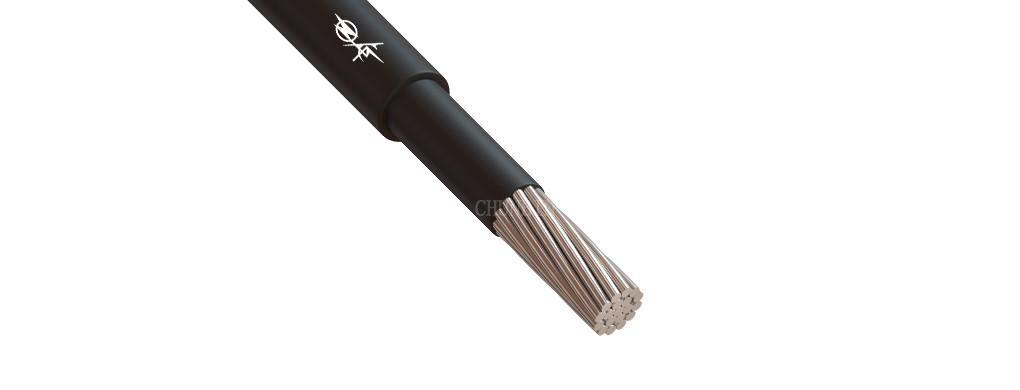

The conductors are stranded,circular compressed aluminum. The conductor screen is the extruded Semi-conducting conductor shield in Black. The inner Insulation is mainly natural color thermoplastic polyethylene (PE) or cross-linked polyethylene (XLPE). And the outer Insulation is mainly thermoplastic polyethylene (PE) or cross-linked polyethylene (XLPE) in Black or Grey with Weather or UV resistant. This standard covers both thermoplastic and cross linked polyethylene constructions, rated for 75°C or 90°C normal service temperature.
Specification
● ICEA S-66-524 Cross-Linked-Thermosetting-Polyethylene-Insulated Wire and Cable for The Transmission and Distribution of Electrical Energy
● GB/T 14049 (Equal to IEC 60502-2) Aerial Insulated Cables For Rated Voltage of 10kV

Technical parameter

IEC 60502-2 , ICEA S-66-524

IEC 60502-2

Nominal Size	Min. No. of Wires	Diameter of Conductor	Thickness of Conductor screen	Nominal Thickness of Insulation		Nominal Thickness of Insulation Screen	Max. DC Resistance at 20 ℃		Min. Breaking Load
Nominal Size	Min. No. of Wires	Diameter of Conductor	Thickness of Conductor screen	Reduced	Nominal	Nominal Thickness of Insulation Screen	Hard Coppe	Soft Copper	Hard Copper
mm²	No.	mm	mm	mm	mm	mm	Ω/km	Ω/km	N
10	6	3.8	0.5	-	3.4	-	-	1.830	-
16	6	4.8	0.5	-	3.4	-	-	1.150	-
25	6	6.0	0.5	2.5	3.4	1.0	0.7490	0.727	8465
35	6	7.0	0.5	2.5	3.4	1.0	0.5400	0.524	11731
50	6	8.3	0.5	2.5	3.4	1.0	0.3990	0.387	16052
70	12	10.0	0.5	2.5	3.4	1.0	0.2760	0.268	23461
95	15	11.6	0.6	2.5	3.4	1.0	0.1990	0.193	31759
120	18	13.0	0.6	2.5	3.4	1.0	0.1580	0.153	39911
150	18	14.6	0.6	2.5	3.4	1.0	0.1280	-	49505
185	30	16.2	0.6	2.5	3.4	1.0	0.1021	-	61846
240	34	18.4	0.6	2.5	3.4	1.0	0.0777	-	79823
300	34	20.6	0.6	2.5	3.4	1.0	0.0619	-	99788
400	53	23.8	0.6	2.5	3.4	1.0	0.0484	-	133040

10kV Aerial Insulated Cables （Aluminum) IEC 60502-2 / GB/T14049
Nominal Size	Min. No. of Wires	Diameter of Conductor	Thickness of Conductor screen	Nominal Thickness of Insulation		Nominal Thickness of Insulation Screen	Max. DC Resistance at 20 ℃		Min. Breaking Load
Nominal Size	Min. No. of Wires	Diameter of Conductor	Thickness of Conductor screen	Reduced	Nominal	Nominal Thickness of Insulation Screen	AAC	AAAC	AAC	AAAC
mm²	No.	mm	mm	mm	mm	mm	Ω/km	Ω/km	N
10	6	3.8	0.5	-	3.4	-	3.080	3.574	-	-
16	6	4.8	0.5	-	3.4	-	1.910	2.217	-	-
25	6	6.0	0.5	2.5	3.4	1.0	1.200	1.393	3762	6284
35	6	7.0	0.5	2.5	3.4	1.0	0.868	1.007	5177	8800
50	6	8.3	0.5	2.5	3.4	1.0	0.641	0.744	7011	12569
70	12	10.0	0.5	2.5	3.4	1.0	0.443	0.514	10354	17596
95	15	11.6	0.6	2.5	3.4	1.0	0.320	0.371	13727	23880
120	18	13.0	0.6	2.5	3.4	1.0	0.253	0.294	17339	30164
150	18	14.6	0.6	2.5	3.4	1.0	0.206	0.239	21033	37706
185	30	16.2	0.6	2.5	3.4	1.0	0.164	0.190	26732	46503
240	34	18.4	0.6	2.5	3.4	1.0	0.125	0.145	34679	60329
300	34	20.6	0.6	2.5	3.4	1.0	0.100	0.116	43349	75411
400	53	23.8	0.6	2.5	3.4	1.0	0.0778	0.0904	55707	100548

SAC Cable (ICEA S-66-524)
