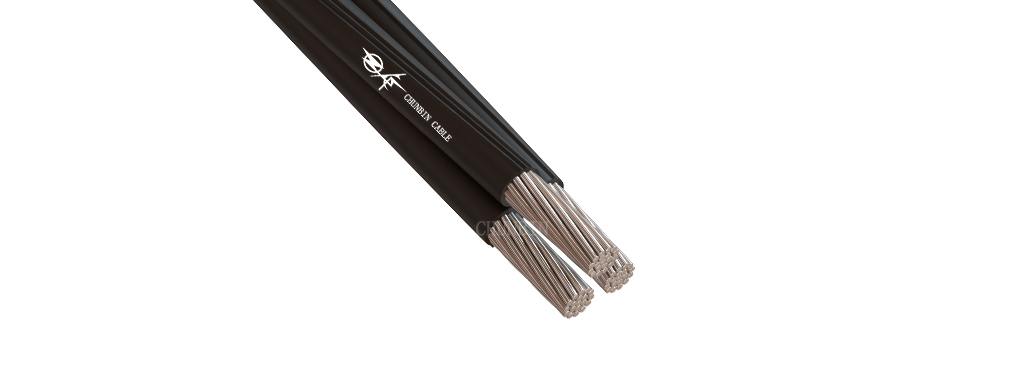

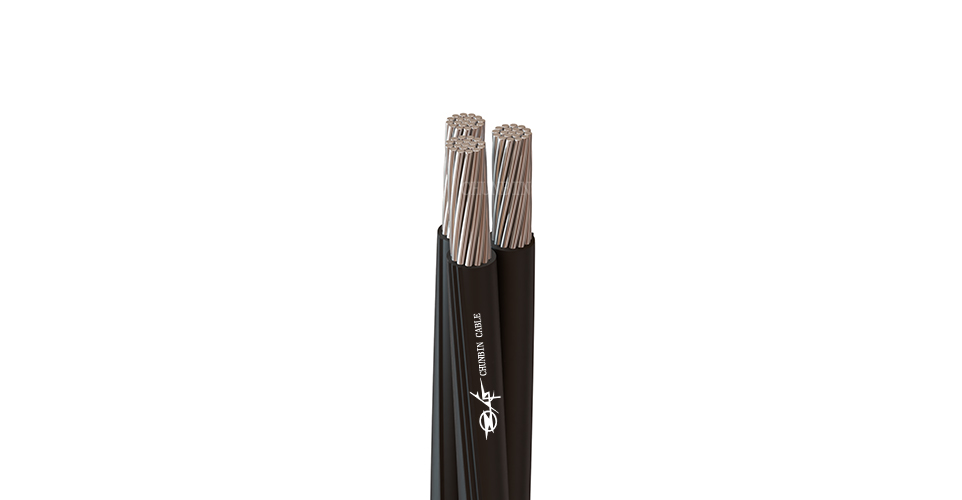

PVC Covered Conductor (BS 6485)

Introduction

Application
Two types of PVC-covered conductors for Overhead power lines.Type 8 is intended for use only where the operating voltage of the power lines does not exceed 650 V r.m.s.between any two conductors or 250 V r.m.s. between any conductor and earth. Type 16 is intended for use only where the operating voltage of the power line exceeds 650 V r.m.s between any two conductors or 250 V r.m.s. between any conductor and earth, but does not normally exceed 11 kV r.m.s. between conductors or 6.6 kV r.m.s. between any conductor and earth.
Specification
• BS 6485 PVC-Covered Conductors For Overhead Power Lines
• BS EN 50182 Conductors For overhead lines — Round Wire Concentric Lay Stranded Conductors
• BS 215-1 Aluminum Conductors and Aluminum Conductors,Steel-Reinforced —For Overhead Power Transmission Part 1: Aluminum Stranded Conductors
• BS 215-2 Aluminum Conductors and Aluminum Conductors,Steel-Reinforced —For Overhead Power Transmission Part 2: Aluminum Conductors, Steel-Reinforced
• BS 3242 Aluminum Alloy Stranded Conductors For Overhead Power Transmission
• BS 7884 Copper and Copper-Cadmium Stranded Conductors For Overhead Electric Traction and Power Transmission Systems
Construction

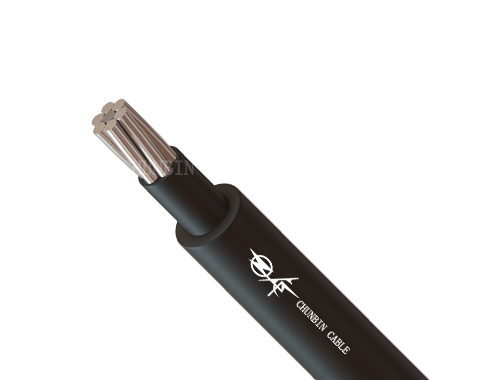

The conductors are stranded, circular compressed or uncompressed aluminum, copper, aluminum-alloy, ACSR etc., concentrically stranded and covered for PVC in black (type 8) and green(type 16).

Technical parameter

BS 6485, BS 215-1

BS 6485 ,BS 7884

BS 6485 ,BS 215-2

BS 6485 ,BS 3242

PVC-Covered Conductors For Overhead Power Lines BS 6485 ，BS 215-1
AAC/PVC
Code Word	Nominal cross-sectional area	Stranding and Wire Diameter	Approx. Diameter of Cable	Max. DC. Resistance at 20℃	Approximate Breaking Load	Approximate Overall Diameter of Covered Conductor （Type 8）	Approximate Mass per kilometre of Covered Conductor（Type 8）
Code Word	Nominal cross-sectional area	Stranding and Wire Diameter	Approx. Diameter of Cable	Max. DC. Resistance at 20℃	Approximate Breaking Load	Approximate Overall Diameter of Covered Conductor （Type 8）	Approximate Mass per kilometre of Covered Conductor（Type 8）
	mm²	mm	mm	Ω/km	kN	mm	kg/km
Midge	22	7/2.06	6.18	1.2270	3.99	8.2	100
Aphis	25	3/3.35	7.20	1.0810	4.11	9.2	133
Gnat	25	7/2.21	6.63	1.0660	4.59	8.8	118
Weevil	30	3/3.66	7.90	0.9082	4.86	10.1	158
Mosquito	35	7/2.59	7.77	0.7762	6.03	10	156
Ladybird	40	7/2.79	8.37	0.6689	6.87	10.6	177
Ant	50	7/3.10	9.30	0.5419	8.28	11.7	200
Fly	60	7/3.40	10.20	0.4505	9.9	12.4	249
Bluebottle	70	7/3.66	11.00	0.3881	11.34	13.2	285
Earwing	75	7/3.78	11.30	0.3644	11.94	13.6	302
Grasshopper	80	7/3.91	11.70	0.3406	12.78	13.9	319
Clegg	90	7/4.17	12.50	0.2994	14.53	14.7	359
Wasp	100	7/4.39	13.17	0.2702	16	16	360
Beetle	100	19/2.67	13.40	0.2704	17.42	15.6	387
Bee	125	7/4.90	14.70	0.2169	19.94	16.9	482
Cricket	150	7/5.36	16.10	0.1813	23.85	18.3	567
Hornet	150	19/3.25	16.30	0.1825	27.7	18.5	538
Caterpillar	175	19/3.53	17.70	0.1547	28.63	19.9	646
Chafer	200	19/3.78	18.90	0.1349	32.4	21.7	690
Spider	225	19/3.99	20.00	0.1211	36.01	22.2	809
Cockroach	250	19/4.22	21.10	0.1083	40.4	23.3	900
Butterfly	300	19/4.65	23.30	0.0892	48.7	25.5	1082
Moth	350	19/5.00	25.00	0.0771	56.37	27.2	1241
Drone	350	37/3.58	25.10	0.0774	57.45	27.3	1222
Locust	400	19/5.36	26.80	0.0671	64.73	29	1416
Centipede	400	37/3.78	26.50	0.0694	63.1	28.7	1353
Maybug	450	37/4.09	28.60	0.0593	74.01	30.8	1573
Scorpion	500	37/4.27	29.90	0.0544	79.98	32.1	1706
Cicada	600	37/4.65	32.60	0.0459	94.95	34.8	2010
Tarantula	750	37/5.23	36.60	0.0363	120.1	38.8	2519

PVC-Covered Conductors For Overhead Power Lines BS 6485 ,BS 7884
CU/PVC
Nominal cross-sectional area	Stranding and Wire Diameter	Approx. Diameter of Cable	Max. DC. Resistance at 20℃	Approx. Breaking Load	Approximate Overall Diameter of Covered Conductor）		Approximate Mass per kilometre of Covered Conductor
Nominal cross-sectional area	Stranding and Wire Diameter	Approx. Diameter of Cable	Max. DC. Resistance at 20℃	Approx. Breaking Load	Type 8	Type 16	Type 8	Type 16
mm²	mm	mm	Ω/km	kN	mm	mm	kg	kg
14	7/1.60	4.8	1.30	5.7440	6.8	8.4	160	190
16	3/2.65	5.7	1.11	6.5900	7.7	9.3	180	220
32	3/3.75	8.06	0.55	12.7100	10.5	12.1	350	390
35	7/2.50	7.5	0.53	14.0970	9.9	11.5	360	400
70	7/3.55	10.65	0.26	26.8800	13.5	14.7	690	750
100	7/4.30	12.9	0.18	37.6400	15.7	16.9	990	1060
COPPER-ALLOY / PVC
Nominal cross-sectional area	Stranding and Wire Diameter	Approximate Overall Diameter of Bare Conductor	Maximum Resistance per kilometre at 20 °C	Approximate Breaking Load	Approximate Overall Diameter of Covered Conductor(Type 16)		Approximate Mass per kilometre of Covered Conductor(Type 16)
Nominal cross-sectional area	Stranding and Wire Diameter	Approximate Overall Diameter of Bare Conductor	Maximum Resistance per kilometre at 20 °C	Approximate Breaking Load	Approximate Overall Diameter of Covered Conductor(Type 16)
mm²	mm	mm	Ω/km	kN	mm		kg
12	3/2.30	4.95	1.78	7.2000	8.2		170
22	7/2.00	6	1.01	12.9400	9.6		270
38	7/2.60	7.8	0.60	21.6900	11.8		430
75	7/3.70	11.1	0.30	40.2300	15.1		810
125	19/2.90	14.5	0.18	68.7500	18.5		1310
150	19/3.20	16	0.15	82.1600	20		1570

PVC-Covered Conductors For Overhead Power Lines BS 6485 ,BS 215-2
ACSR / PVC
Nominal cross-sectional area	Stranding and Wire Diameter		Approximate Overall Diameter of Bare Conductor	Maximum Resistance per kilometre at 20 °C	Approximate Breaking Load	Approximate Overall Diameter of Covered Conductor(Type 8)	Approximate Mass per kilometre of Covered Conductor(Type 16)
	Aluminum	Steel
mm²	No./mm	No./mm	mm	Ω/km	kN	mm	kg
25	6/2.36	1/2.36	7.08	1.0930	9.61	10.7	190
50	6/3.35	1/3.35	10.05	0.5426	18.35	14.1	330
100	6/4.72	7/1.57	14.15	0.2733	32.7	18.2	550
150	30/2.59	7/2.59	18.13	0.1828	69.2	22.2	920
150	18/3.35	1/3.35	16.75	0.1815	35.7	20.8	680
175	30/2.79	7/2.79	19.53	0.1576	79.8	23.6	1050
175	18/3.61	1/3.61	18.05	0.1563	41.1	22.1	780
200	30/3.00	7/3.00	21.00	0.1363	92.25	25	1190
200	18/3.86	1/3.86	19.30	0.1367	46.55	23.3	870

PVC-Covered Conductors For Overhead Power Lines BS 6485 ,BS 3242
AAAC / PVC
Nominal cross-sectional area	Stranding and Wire Diameter	Approximate Overall Diameter of Bare Conductor	Maximum Resistance per kilometre at 20 °C	Approximate Breaking Load	Approximate Overall Diameter of Covered Conductor(Type 8)	Approximate Mass per kilometre of Covered Conductor(Type 16)

mm²	No./mm	mm	Ω/km	kN	mm	kg
25	7/2.34	7.02	1.09	8.44	10.6	170
50	7/3.30	9.9	0.55	16.8	13.9	280
100	7/4.65	13.95	0.28	33.3	18	470
150	19/3.48	17.4	0.18	50.65	21.4	680
200	19/3.76	18.8	0.16	59.1	22.8	780
