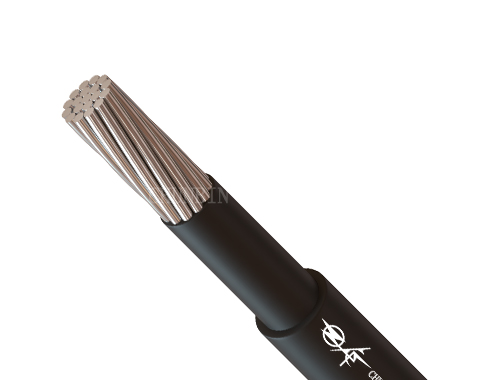

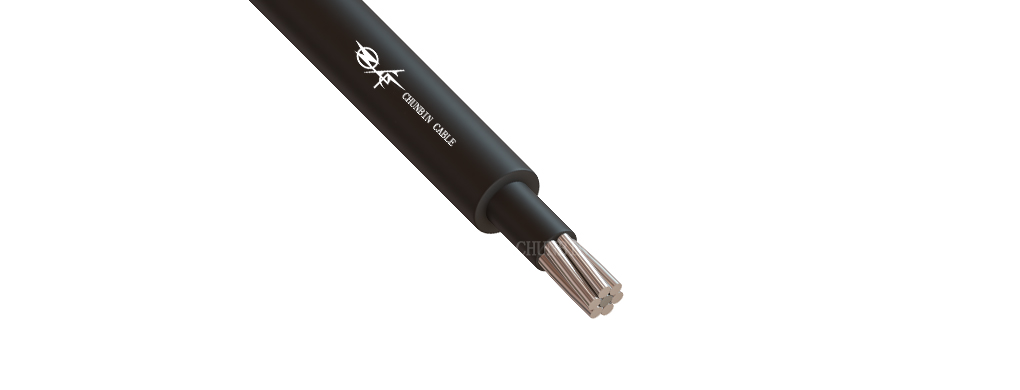

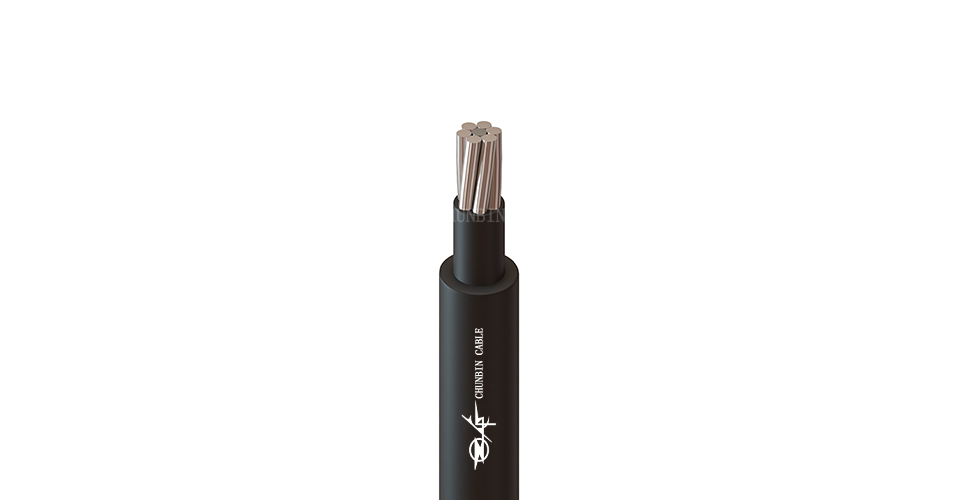

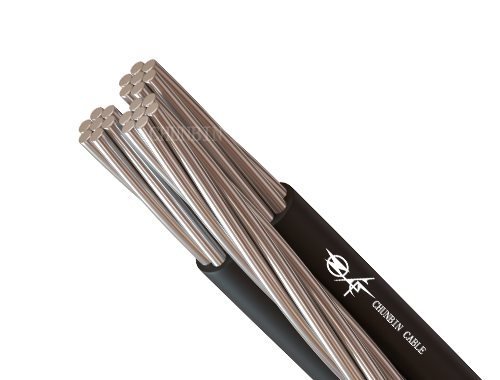

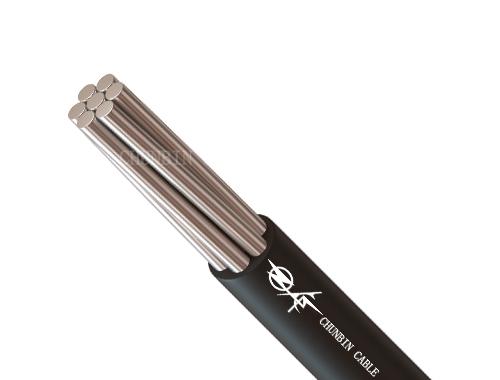

AW-OC Cable (KS C 3138)

Introduction

Application
Aerial Insulated Cables with voltages from 6.6kV - 22.9kV of ACSR-OC, ACSR/AW-OC.The products primarily used for the distribution of electrical energy under normal conditions of overhead (aerial) installations. The conductors must be installed on insulators and/or spacers adequate for the service voltage. The user may want to give consideration to the dielectric compatibility of the covering, insulator, spacer and etc.
Description
The conductors are stranded,circular compressed ACSR-OC or ACSR/AW-OC. The conductor screen is the extruded Semi-conducting conductor shield in Black. The Insulation is cross-linked polyethylene (XLPE) in Black with Weather or UV resistant. The Insulation rated for 90°C normal service temperature.
Specification
● GB/T 14049 (Equal to IEC 60502-2) Aerial Insulated Cables For Rated Voltage of 10kV
● KS C 3138 ACSR outdoor cross-linked polyethylene insulated wires for 6.6 kV

Technical parameter

KSC 3138

ACSR-OC Aerial Insulated Cables KSC 3138
Size	No. and Dia. of Wires		Conductor Diameter	Insulation Thickness	Cable Diameter	Rated Strength	Weight
Size	AL	St	Conductor Diameter	Insulation Thickness	Cable Diameter	Rated Strength	Weight
mm²	No.	No. /mm	mm	mm	mm	kgf	kg/km
6.6 kV ACSR-OC/XLPE
2	6/SB	1/2.6	7.2	2	11.2	1090	185
58	6/SB	1/3.5	9.7	2.5	14.7	1900	325
95	6/SB	1/3.5	12	2.5	17	2360	455
22.9 kV ACSR-OC/XLPE
32	6/SB	1/2.6	7.2	3	13.2	1090	215
58	6/SB	1/3.5	9.7	3	15.7	1900	340
95	6/SB	1/3.5	12	3.5	19	2360	540
160	18/SB	1/3.2	15.4	4	23.4	3080	740
6.6kV ACSR/AW-OC Aerial Insulated Cables
Size	No. and Dia. of Wires		Conductor Diameter	Insulation Thickness	Cable Diameter	Rated Strength	Weight
Size	AL	St	Conductor Diameter	Insulation Thickness	Cable Diameter	Rated Strength	Weight
mm²	No.	No. /mm	mm	mm	mm	kgf	kg/km
6.6 kV ACSR/AW-OC/XLPE
32	6/SB	1/2.6	7.2	2	11.2	1090	180
58	6/SB	1/3.5	9.7	2.5	14.7	1900	315
95	6/SB	1/3.5	12	2.5	17	2360	445
22.9 kV ACSR/AW-OC/XLPE
32	6/SB	1/2.6	7.2	3	13.2	1090	210
58	6/SB	1/3.5	9.7	3	15.7	1900	330
95	6/SB	1/3.5	12	3.5	19	2360	530
160	18/SB	1/3.2	15.4	4	23.4	3080	730
240	18/SB	1/4.0	18.9	4	27	4500	1040
