Covered Cable (ABNT NBR 11873)

Introduction

Application
Primarily used for overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 1000 volts phase - to - phase or less and at conductor temperatures not to exceed 70°C for polyethylene (PE) and Polyvinyl chloride (PVC) insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.
Specification
● GB/T 12527（Equivalent to IEC 60502-1）Aerial Insulated Cables for Rated Voltages up to and Including 1kV
● IEC 60228 Conductors of insulated cables

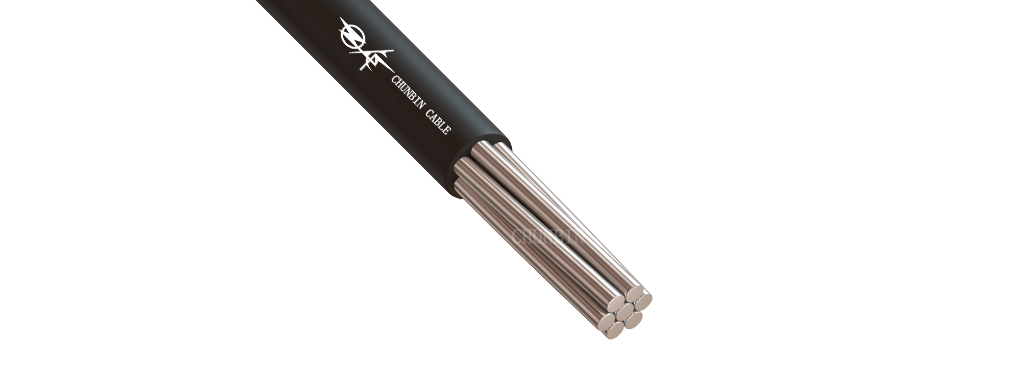

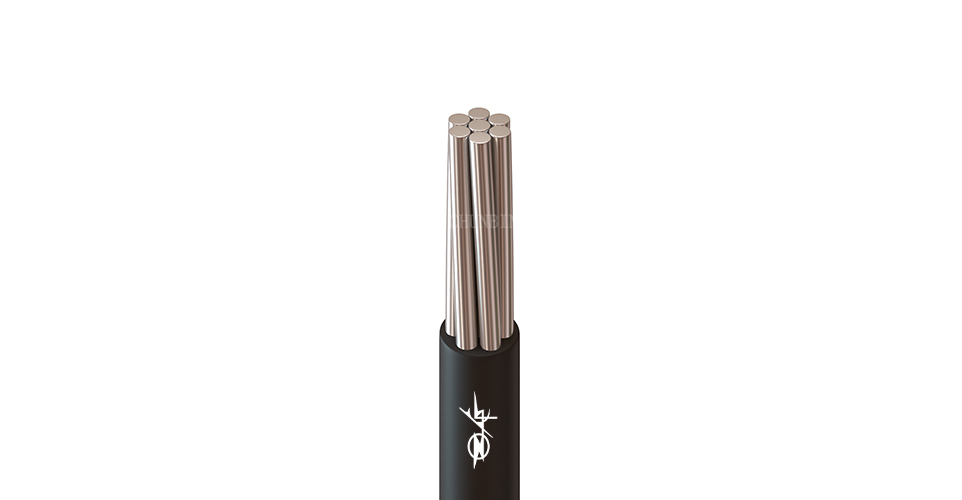

Construction
Conductor: Conductors are stranded,circular compacted or uncompacted aluminum, copper , aluminum-alloy, ACSR etc.
Insulation: Thermoplastic polyethylene(PE),polyvinyl chloride (PVC) ,cross-linked polyethylene (XLPE),black color,weather and UV resistant.

Technical parameter

IEC 60502-1 / GB/T 12527

Aerial Insulated Cables （Copper) IEC 60502-1 / GB/T 12527
Nominal Size	Min. No. of Wires	Approx. Diameter of Conductor	Nominal Thickness of Insulation	Max. Diameter of Cable	Max. DC Resistance at 20 0C		Breaking Load
Nominal Size	Min. No. of Wires	Approx. Diameter of Conductor	Nominal Thickness of Insulation	Max. Diameter of Cable	Hard Coppe	Annealedcopper	Hard Copper
mm²	No.	mm	mm	mm	Ω/km	Ω/km	N
10	6	3.8	1.0	6.5	1.906	1.83	3471
16	6	4.8	1.2	8.0	1.198	1.15	5486
25	6	6.0	1.2	9.4	0.749	0.727	8465
35	6	7.0	1.4	11.0	0.54	0.524	11731
50	6	8.4	1.4	12.3	0.399	0.387	16052
70	12	10.0	1.4	14.1	0.276	0.268	23461
95	15	11.6	1.6	16.5	0.199	0.193	31759
120	18	13.0	1.6	18.1	0.158	0.153	39911
150	18	14.6	1.8	20.2	0.128	0.124	49505
185	30	16.2	2.0	22.5	0.1021	0.0991	61846
240	34	18.4	2.2	25.6	0.0777	0.0754	79823

Nominal Size	Min. No. of Wires	Approx. Diameter of Conductor	Nominal Thickness of Insulation	Max. Diameter of Cable	Max. DC Resistance at 20 0C		Breaking Load	Breaking Load
Nominal Size	Min. No. of Wires	Approx. Diameter of Conductor	Nominal Thickness of Insulation	Max. Diameter of Cable	AAC	AAAC	AAC	AAAC
mm²	No.	mm	mm	mm	Ω/km	Ω/km	N	N
10	6	3.8	1.0	6.5	3.08	3.574	1650	2514
16	6	4.8	1.2	8.0	1.91	2.217	2517	4022
25	6	6.0	1.2	9.4	1.2	1.393	3762	6284
35	6	7.0	1.4	11.0	0.868	1.007	5177	8800
50	6	8.4	1.4	12.3	0.641	0.744	7011	12569
70	12	10.0	1.4	14.1	0.443	0.514	10354	17596
95	15	11.6	1.6	16.5	0.32	0.371	13727	23880
120	15	13.0	1.6	18.1	0.253	0.294	17339	30164
150	15	14.6	1.8	20.2	0.206	0.239	21033	37706
185	30	16.2	2.0	22.5	0.164	0.190	26732	46503
240	30	18.4	2.2	25.6	0.125	0.145	34679	60329
300	30	20.8	2.2	27.2	0.1	0.116	43349	75411
400	53	23.2	2.2	30.7	0.0778	0.0904	55707	100548

Aerial Insulated Cable ( IEC 60502-1 / GB/T 12527)
