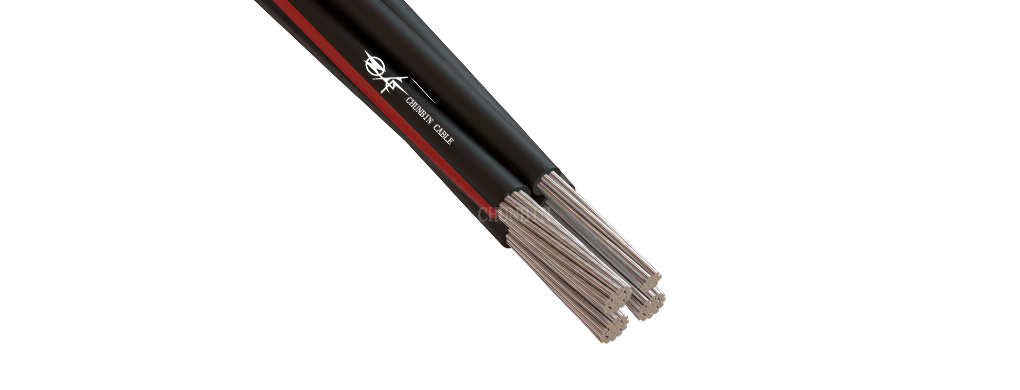

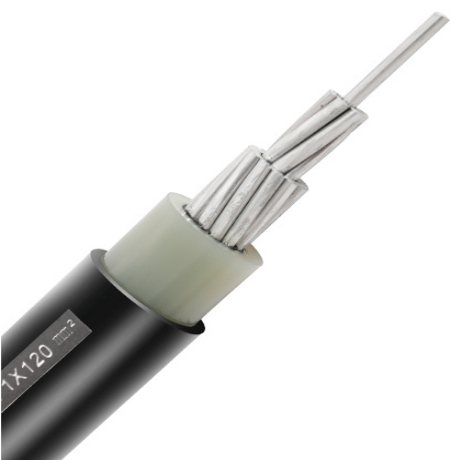

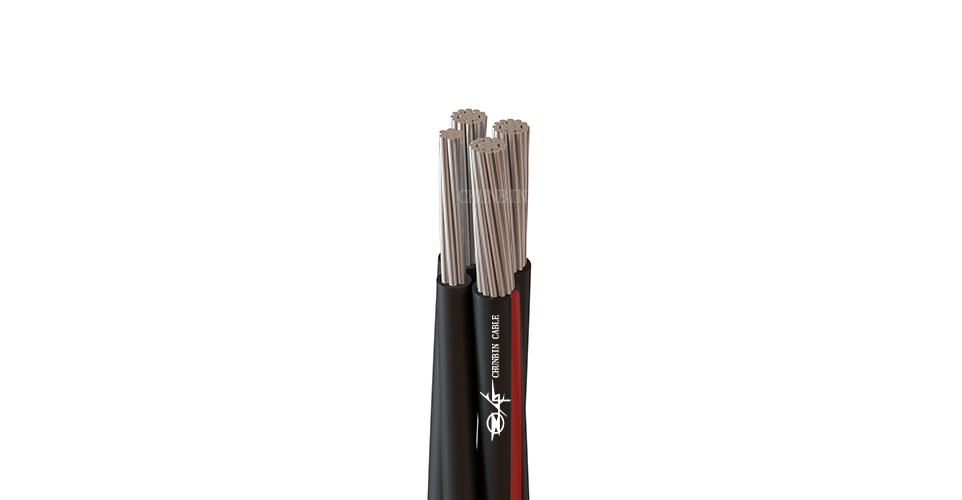

Aerial Bundled Cable (NFC 33-209)

Technical parameter

NFC 33-209

No. of Cores and Section	No. of Wires	Nominal Insulation Thickness	Approx. Diameter of Cable	Max. DC. Resistance at 20℃	Approx. Weight
No. of Cores and Section	No. of Wires	Nominal Insulation Thickness	Approx. Diameter of Cable	Max. DC. Resistance at 20℃	Approx. Weight
mm²	No.	mm	mm	Ω/km	kg/km
2x16	7	1.2	14.40	1.910	131
2x25	7	1.4	17.60	1.200	200
2x35	7	1.6	20.40	0.868	273
2x50	7	1.6	22.60	0.641	350
2x70	12	1.8	26.80	0.443	495
2x95	19	1.8	30.40	0.320	656
2x120	19	1.8	32.80	0.253	799
4x16	7	1.2	17.40	1.910	262
4x25	7	1.4	21.30	1.200	399
4x35	7	1.6	24.70	0.868	547
4x50	7	1.6	27.30	0.641	699
4x70	12	1.8	32.40	0.443	990
4x95	19	1.8	36.80	0.320	1311
4x120	19	1.8	39.70	0.253	1597

No. of Cores and Section	No. of Wires		Nominal Insulation Thickness		Approx. Diameter of Cable	Max. DC. Resistance at 20℃		Approx. Weight
No. of Cores and Section	Phase	Neutral	Phase	Neutral	Approx. Diameter of Cable	Phase	Neutral	Approx. Weight
mm²	No.	No.	mm	mm	mm	Ω/km	Ω/km	kg/km
1x25+1x54.6	7	7	1.4	1.6	21.3	1.200	0.63	309
1x35+1x54.6	7	7	1.6	1.6	22.7	0.868	0.63	345
1x50+1x54.6	7	7	1.6	1.6	23.8	0.641	0.63	384
1x70+1x54.6	12	7	1.8	1.6	25.9	0.443	0.63	456
1x95+1x54.6	19	7	1.8	1.6	27.7	0.320	0.63	537
1x70+1x70	12	7	1.8	1.6	26.7	0.443	0.50	491
1x95+1x70	19	7	1.8	1.6	28.5	0.320	0.50	571
1x120+1x70	19	7	1.8	1.6	29.7	0.253	0.50	643
1x120+1x95	19	19	1.8	1.6	31.9	0.253	0.34	737
1x150+1x95	19	19	1.8	1.6	33.6	0.206	0.34	819
3x25+1x54.6	7	7	1.4	1.6	23.5	1.200	0.63	508
3x35+1x54.6	7	7	1.6	1.6	26.1	0.868	0.63	619
3x50+1x54.6	7	7	1.6	1.6	28.1	0.641	0.63	733
3x70+1x54.6	12	7	1.8	1.6	31.9	0.443	0.63	951
3x95+1x54.6	19	7	1.8	1.6	35.2	0.320	0.63	1192
3x70+1x70	12	7	1.8	1.6	32.4	0.443	0.50	986
3x95+1x70	19	7	1.8	1.6	35.6	0.320	0.50	1227
3x120+1x70	19	7	1.8	1.6	37.8	0.253	0.50	1441
3x120+1x95	19	19	1.8	1.6	39.1	0.253	0.343	1536
3x150+1x95	19	19	1.8	1.6	42.2	0.206	0.343	1779

No. of Cores and Section	No. of Wires			Nominal Insulation Thickness			Approx. Diameter of Cable	Max. DC. Resistance at 20℃			Approx. Weight
No. of Cores and Section	Phase	Neutral	Public Lighting	Phase	Neutral	Public Lighting	Approx. Diameter of Cable	Phase	Neutral	Public Lighting	Approx. Weight
mm²	No.	No.	No.		mm	mm	mm	Ω/km	Ω/km	Ω/km	kg/km
3x25+1x54.6+1x16	7	7	7	1.4	1.6	1.2	30.1	1.200	0.630	1.910	571
3x35+1x54.6+1x16	7	7	7	1.6	1.6	1.2	32.9	0.868	0.630	1.910	682
3x50+1x54.6+1x16	7	7	7	1.6	1.6	1.2	35.1	0.641	0.630	1.910	797
3x70+1x54.6+1x16	12	7	7	1.8	1.6	1.2	39.3	0.443	0.630	1.910	1014
3x70+1x54.6+1x25	12	7	7	1.8	1.6	1.4	39.3	0.443	0.630	1.200	1049
3x70+1x70+1x16	12	7	7	1.8	1.6	1.2	40.1	0.443	0.500	1.910	1049
3x95+1x70+1x16	19	7	7	1.8	1.6	1.2	43.7	0.320	0.500	1.910	1290
3x120+1x70+1x16	19	7	7	1.8	1.6	1.2	46.1	0.253	0.500	1.910	1504
3x120+1x95+1x16	19	19	7	1.8	1.6	1.2	48.3	0.253	0.343	1.910	1598
3x150+1x95+1x16	19	19	7	1.8	1.6	1.2	51.7	0.206	0.343	1.910	1842
3x25+1x54.6+2x16	7	7	7	1.4	1.6	1.2	30.1	1.200	0.630	1.910	637
3x35+1x54.6+2x16	7	7	7	1.6	1.6	1.2	32.9	0.868	0.630	1.910	748
3x50+1x54.6+2x16	7	7	7	1.6	1.6	1.2	35.1	0.641	0.630	1.910	862
3x70+1x54.6+2x16	12	7	7	1.8	1.6	1.2	39.3	0.443	0.630	1.910	1080
3x70+1x54.6+2x25	12	7	7	1.8	1.6	1.4	39.3	0.443	0.630	1.200	1148
3x70+1x70+2x16	12	7	7	1.8	1.6	1.2	40.1	0.443	0.500	1.910	1114
3x95+1x70+2x16	19	7	7	1.8	1.6	1.2	43.7	0.320	0.500	1.910	1356
3x120+1x70+2x16	19	7	7	1.8	1.6	1.2	46.1	0.253	0.500	1.910	1570
3x120+1x95+2x16	19	19	7	1.8	1.6	1.2	48.3	0.253	0.343	1.910	1664
3x150+1x95+2x16	19	19	7	1.8	1.6	1.2	51.7	0.206	0.343	1.910	1907
