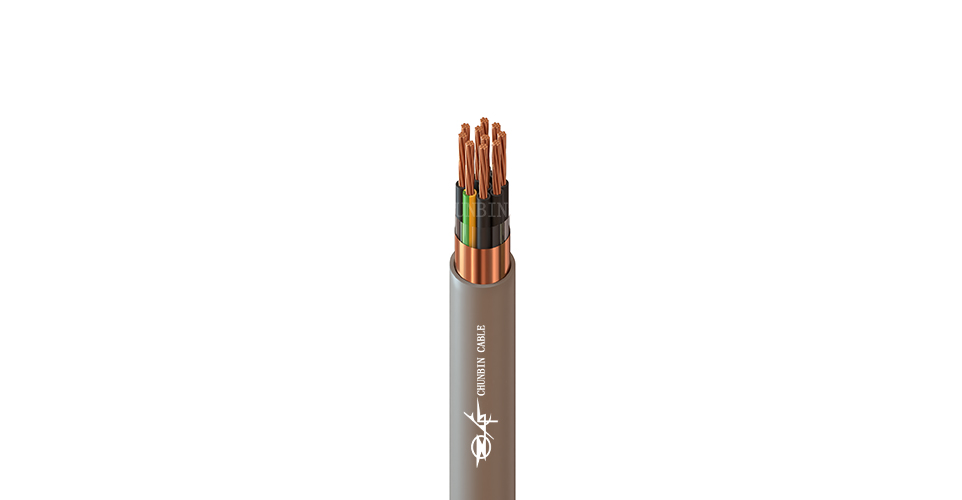

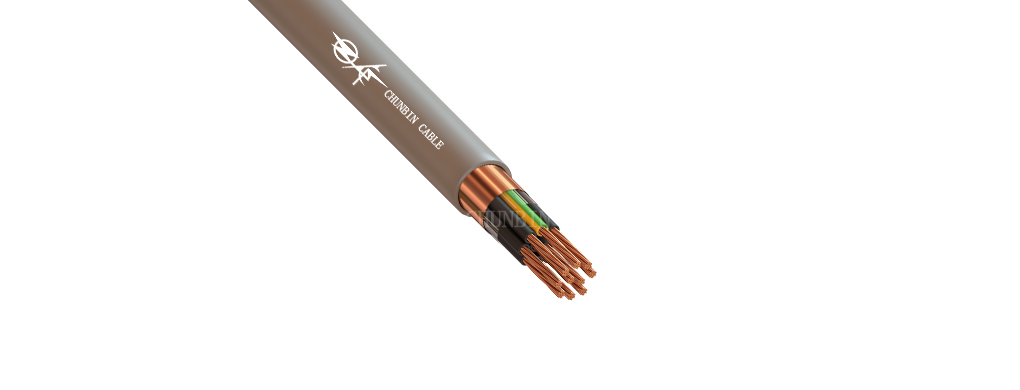

XLPE Insulated Control Cable

Technical parameter

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal	Nominal	Approx.	Approx. Weight	Max. D.C. Resistance of Conductor
No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Copper Tape Thickness	Sheath Thickness	Overall Diameter	Approx. Weight	at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
2×0.5	2	0.6	0.05	1.8	8.3	81	36
2×0.75	2	0.6	0.05	1.8	8.7	96	24.5
2×1	2	0.6	0.05	1.8	9	106	18.1
2×1.5	2	0.7	0.05	1.8	10	133	12.1
2×2.5	2	0.7	0.05	1.8	10.9	160	7.41
2×4	2	0.7	0.05	1.8	12	205	4.61
2×6	2	0.7	0.05	1.8	13	252	3.08
2×10	2	0.7	0.05	1.8	14.8	369	1.83
3×0.5	2	0.6	0.05	1.8	8.6	95	36
3×0.75	2	0.6	0.05	1.8	9	115	24.5
3×1	2	0.6	0.05	1.8	9.4	128	18.1
3×1.5	2	0.7	0.05	1.8	10.5	153	12.1
3×2.5	2	0.7	0.05	1.8	11.4	190	7.41
3×4	2	0.7	0.05	1.8	12.6	251	4.61
3×6	2	0.7	0.05	1.8	13.7	324	3.08
3×10	2	0.7	0.05	1.8	15.7	478	1.83
4×0.5	2	0.6	0.05	1.8	9.1	102	36
4×0.75	2	0.6	0.05	1.8	9.6	119	24.5
4×1	2	0.6	0.05	1.8	10.1	145	18.1
4×1.5	2	0.7	0.05	1.8	11.3	187	12.1
4×2.5	2	0.7	0.05	1.8	12.3	235	7.41
4×4	2	0.7	0.05	1.8	13.6	314	4.61
4×6	2	0.7	0.05	1.8	14.9	412	3.08
4×10	2	0.7	0.05	1.8	17.1	626	1.83
5×0.5	2	0.6	0.05	1.8	9.7	116	36
5×0.75	2	0.6	0.05	1.8	10.3	148	24.5
5×1	2	0.6	0.05	1.8	10.8	167	18.1
5×1.5	2	0.7	0.05	1.8	12.1	213	12.1
5×2.5	2	0.7	0.05	1.8	13.3	277	7.41
5×4	2	0.7	0.05	1.8	14.7	373	4.61
5×6	2	0.7	0.05	1.8	16.2	480	3.08
5×10	2	0.7	0.05	1.8	18.6	749	1.83
6×0.5	2	0.6	0.05	1.8	10.4	130	36
6×0.75	2	0.6	0.05	1.8	11	153	24.5

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal	Nominal	Approx.	Approx. Weight	Max. D.C. Resistance of Conductor
No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Copper Tape Thickness	Sheath Thickness	Overall Diameter	Approx. Weight	at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
6×1	2	0.6	0.05	1.8	11.5	175	18.1
6×1.5	2	0.7	0.05	1.8	13	229	12.1
6×2.5	2	0.7	0.05	1.8	14.3	299	7.41
6×4	2	0.7	0.05	1.8	15.9	407	4.61
6×6	2	0.7	0.05	1.8	17.5	543	3.08
6×10	2	0.7	0.05	1.8	20.2	806	1.83
7×0.5	2	0.6	0.05	1.8	10.4	134	36
7×0.75	2	0.6	0.05	1.8	11	160	24.5
7×1	2	0.6	0.05	1.8	11.5	185	18.1
7×1.5	2	0.7	0.05	1.8	13	245	12.1
7×2.5	2	0.7	0.05	1.8	14.3	324	7.41
7×4	2	0.7	0.05	1.8	15.9	447	4.61
7×6	2	0.7	0.05	1.8	17.5	593	3.08
7×10	2	0.7	0.05	1.8	20.2	887	1.83
8×0.5	2	0.6	0.05	1.8	11.3	154	36
8×0.75	2	0.6	0.05	1.8	12	184	24.5
8×1	2	0.6	0.05	1.8	12.6	213	18.1
8×1.5	2	0.7	0.05	1.8	14.4	282	12.1
8×2.5	2	0.7	0.05	1.8	15.8	373	7.41
8×4	2	0.7	0.05	1.8	17.7	516	4.61
8×6	2	0.7	0.05	1.8	19.5	682	3.08
8×10	2	0.7	0.05	1.8	22.6	1025	1.83
9×0.5	2	0.6	0.05	1.8	12	171	36
9×0.75	2	0.6	0.05	1.8	12.8	207	24.5
9×1	2	0.6	0.05	1.8	13.5	239	18.1
9×1.5	2	0.7	0.05	1.8	15.4	316	12.1
9×2.5	2	0.7	0.05	1.8	17	420	7.41
9×4	2	0.7	0.05	1.8	19.1	580	4.61
9×6	2	0.7	0.05	1.8	21.1	774	3.08
9×10	2	0.7	0.05	1.8	24.5	1164	1.83
10×0.5	2	0.6	0.05	1.8	12.5	183	36
10×0.75	2	0.6	0.05	1.8	13.3	219	24.5
10×1	2	0.6	0.05	1.8	14	255	18.1
10×1.5	2	0.7	0.05	1.8	16	339	12.1
10×2.5	2	0.7	0.05	1.8	17.7	452	7.41
10×4	2	0.7	0.05	1.8	19.9	628	4.61

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal	Nominal	Approx.	Approx. Weight	Max. D.C. Resistance of Conductor
No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Copper Tape Thickness	Sheath Thickness	Overall Diameter	Approx. Weight	at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
10×6	2	0.7	0.05	1.8	22	839	3.08
10×10	2	0.7	0.05	1.8	25.6	1260	1.83
12×0.5	2	0.6	0.05	1.8	12.8	196	36
12×0.75	2	0.6	0.05	1.8	13.7	238	24.5
12×1	2	0.6	0.05	1.8	14.4	279	18.1
12×1.5	2	0.7	0.05	1.8	16.5	377	12.1
12×2.5	2	0.7	0.05	1.8	18.2	509	7.41
12×4	2	0.7	0.05	1.8	20.5	713	4.61
12×6	2	0.7	0.05	1.8	22.7	958	3.08
14×0.5	2	0.6	0.05	1.8	13.3	216	36
14×0.75	2	0.6	0.05	1.8	14.2	265	24.5
14×1	2	0.6	0.05	1.8	15	312	18.1
14×1.5	2	0.7	0.05	1.8	17.2	423	12.1
14×2.5	2	0.7	0.05	1.8	19.1	575	7.41
14×4	2	0.7	0.05	1.8	21.5	811	4.61
14×6	2	0.7	0.05	1.8	23.9	1094	3.08
16×0.5	2	0.6	0.05	1.8	13.9	240	36
16×0.75	2	0.6	0.05	1.8	14.9	294	24.5
16×1	2	0.6	0.05	1.8	15.8	347	18.1
16×1.5	2	0.7	0.05	1.8	18.1	473	12.1
16×2.5	2	0.7	0.05	1.8	20.1	646	7.41
16×4	2	0.7	0.05	1.8	22.6	915	4.61
16×6	2	0.7	0.05	1.8	25.2	1236	3.08
19×0.5	2	0.6	0.05	1.8	14.6	266	36
19×0.75	2	0.6	0.05	1.8	15.6	329	24.5
19×1	2	0.6	0.05	1.8	16.5	391	18.1
19×1.5	2	0.7	0.05	1.8	19	537	12.1
19×2.5	2	0.7	0.05	1.8	21.1	739	7.41
19×4	2	0.7	0.05	1.8	23.8	1054	4.61
19×6	2	0.7	0.05	1.8	26.5	1432	3.08
20×0.5	2	0.6	0.05	1.8	15.2	280	36
20×0.75	2	0.6	0.05	1.8	16.4	347	24.5
20×1	2	0.6	0.05	1.8	17.3	413	18.1
20×1.5	2	0.7	0.05	1.8	20	567	12.1
20×2.5	2	0.7	0.05	1.8	22.2	779	7.41
20×4	2	0.7	0.05	1.8	25.1	1112	4.61

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal	Nominal	Approx.	Approx. Weight	Max. D.C. Resistance of Conductor
No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Copper Tape Thickness	Sheath Thickness	Overall Diameter	Approx. Weight	at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
20×6	2	0.7	0.05	1.8	28	1510	3.08
21×0.5	2	0.6	0.05	1.8	15.2	287	36
21×0.75	2	0.6	0.05	1.8	16.4	357	24.5
21×1	2	0.6	0.05	1.8	17.3	426	18.1
21×1.5	2	0.7	0.05	1.8	20	586	12.1
21×2.5	2	0.7	0.05	1.8	22.2	808	7.41
21×4	2	0.7	0.05	1.8	25.1	1155	4.61
21×6	2	0.7	0.05	1.8	28	1572	3.08
22×0.5	2	0.6	0.05	1.8	16	302	36
22×0.75	2	0.6	0.05	1.8	17.1	375	24.5
22×1	2	0.6	0.05	1.8	18.2	447	18.1
22×1.5	2	0.7	0.05	1.8	21	616	12.1
22×2.5	2	0.7	0.05	1.8	23.4	849	7.41
22×4	2	0.7	0.05	1.8	26.4	1213	4.61
22×6	2	0.7	0.05	1.9	29.7	1663	3.08
24×0.5	2	0.6	0.05	1.8	16.7	329	36
24×0.75	2	0.6	0.05	1.8	17.9	409	24.5
24×1	2	0.6	0.05	1.8	19	486	18.1
24×1.5	2	0.7	0.05	1.8	22	669	12.1
24×2.5	2	0.7	0.05	1.8	24.5	925	7.41
24×4	2	0.7	0.05	1.8	27.8	1323	4.61
24×6	2	0.7	0.05	1.9	31.2	1817	3.08
27×0.5	2	0.6	0.05	1.8	17	349	36
27×0.75	2	0.6	0.05	1.8	18.3	438	24.5
27×1	2	0.6	0.05	1.8	19.4	524	18.1
27×1.5	2	0.7	0.05	1.8	22.4	727	12.1
27×2.5	2	0.7	0.05	1.8	25	1009	7.41
27×4	2	0.7	0.05	1.8	28.3	1452	4.61
27×6	2	0.7	0.05	1.9	31.9	1998	3.08
30×0.5	2	0.6	0.05	1.8	17.5	377	36
30×0.75	2	0.6	0.05	1.8	18.9	474	24.5
30×1	2	0.6	0.05	1.8	20	569	18.1
30×1.5	2	0.7	0.05	1.8	23.2	792	12.1
30×2.5	2	0.7	0.05	1.8	25.9	1105	7.41
30×4	2	0.7	0.05	1.9	29.6	1607	4.61
30×6	2	0.7	0.05	2	33.2	2212	3.08

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal	Nominal	Approx.	Approx. Weight	Max. D.C. Resistance of Conductor
No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Copper Tape Thickness	Sheath Thickness	Overall Diameter	Approx. Weight	at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
33×0.5	2	0.6	0.05	1.8	18.1	408	36
33×0.75	2	0.6	0.05	1.8	19.5	514	24.5
33×1	2	0.6	0.05	1.8	20.7	618	18.1
33×1.5	2	0.7	0.05	1.8	24.1	862	12.1
33×2.5	2	0.7	0.05	1.8	26.9	1204	7.41
33×4	2	0.7	0.05	1.9	30.7	1756	4.61
33×6	2	0.7	0.05	2	34.5	2419	3.08
37×0.5	2	0.6	0.05	1.8	18.8	441	36
37×0.75	2	0.6	0.05	1.8	20.2	559	24.5
37×1	2	0.6	0.05	1.8	21.5	675	18.1
37×1.5	2	0.7	0.05	1.8	25	945	12.1
37×2.5	2	0.7	0.05	1.8	27.9	1326	7.41
37×4	2	0.7	0.05	2	32.1	1954	4.61
37×6	2	0.7	0.05	2.1	36.1	2694	3.08
44×0.5	2	0.6	0.05	1.8	20.9	519	36
44×0.75	2	0.6	0.05	1.8	22.5	659	24.5
44×1	2	0.6	0.05	1.8	24	796	18.1
44×1.5	2	0.7	0.05	1.8	28	1116	12.1
44×2.5	2	0.7	0.05	1.9	31.5	1583	7.41
44×4	2	0.7	0.05	2.1	36.3	2330	4.61
44×6	2	0.7	0.05	2.2	40.8	3214	3.08
48×0.5	2	0.6	0.05	1.8	21.2	547	36
48×0.75	2	0.6	0.05	1.8	22.9	698	24.5
48×1	2	0.6	0.05	1.8	24.3	846	18.1
48×1.5	2	0.7	0.05	1.8	28.4	1192	12.1
48×2.5	2	0.7	0.05	2	32.2	1711	7.41
48×4	2	0.7	0.05	2.1	36.8	2503	4.61
48×6	2	0.7	0.05	2.2	41.4	3458	3.08
52×0.5	2	0.6	0.05	1.8	21.7	582	36
52×0.75	2	0.6	0.05	1.8	23.5	744	24.5
52×1	2	0.6	0.05	1.8	25	905	18.1
52×1.5	2	0.7	0.05	1.9	29.4	1291	12.1
52×2.5	2	0.7	0.05	2	33.1	1836	7.41
52×4	2	0.7	0.05	2.1	37.9	2691	4.61
52×6	2	0.7	0.05	2.3	42.8	3741	3.08

No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Nominal	Nominal	Approx.	Approx. Weight	Max. D.C. Resistance of Conductor
No. of Cores and Nominal Cross Section	Conductor Type	Nominal Insulation Thickness	Copper Tape Thickness	Sheath Thickness	Overall Diameter	Approx. Weight	at 20℃
No. × mm²		mm	mm	mm	mm	kg/km	Ω/km
61×0.5	2	0.6	0.05	1.8	23	661	36
61×0.75	2	0.6	0.05	1.8	24.8	850	24.5
61×1	2	0.6	0.05	1.8	26.5	1036	18.1
61×1.5	2	0.7	0.05	1.9	31.2	1483	12.1
61×2.5	2	0.7	0.05	2.1	35.3	2133	7.41
61×4	2	0.7	0.05	2.2	40.4	3131	4.61
61×6	2	0.7	0.05	2.4	45.7	4355	3.08
