Concentric Cable Medium Voltage

Aluminum	Conductor		Copper Neutra		Diameter* (per ANSI/ICEAS-94-649)				Weights(lbs/ft)
	AWGor kamil	Number of Strands	Number of Wires	Size AWG	Conductor	Min.Over Insulation	Max.Over Insulation	Oyer Embedded Jacket	Conductor	Neutral	Total Without Jacket	Total With Embedded Jadket
Full Neutral	2	SOLID	10	14	0.258	0.610	0.695	0.960	0.0611	0.130	0.356	0.477
	2	7	10	14	0.283	0.635	0.720	0.990	0.0623	0.130	0.370	0.487
	1	S0LID	13	14	0.289	0.645	0.725	0.995	0.0785	0.173	0.424	0.543
	1	19	13	14	0.322	0.675	0.760	1.015	0.0785	0.173	0.437	0.556
	1/00	SOLID	16	14	0.325	0.680	0.760	1.030	0.0972	0.210	0.494	0.615
	1/00	19	16	14	0.362	0.715	0.800	1.055	0.0991	0.210	0.510	0.632
	2/00	19	13	12	0.406	0.760	0.845	1.100	0.1249	0.276	0.616	0.760
	3/00	19	16	12	0.456	0.810	0.895	1.170	0.1575	0.340	0.730	0.874
	4/00	19	20	12	0.512	0.865	0.950	1.235	0.1986	0.425	0.875	1.030
One-Third Neutral	1/00	S0LID	6	14	0.325	0.680	0.760	1.030	0.0972	0.080	0.356	0.460
	1/00	19	6	14	0.362	0.715	0.800	1.055	0.0991	0.080	0.373	0.515
	2/00	19	7	14	0.406	0.760	0.845	1.100	0.1249	0.094	0.434	0.575
	3/00	19	9	14	0.456	0.810	0.895	1.150	0.1575	0.120	0.510	0.655
	4/00	19	11	14	0.512	0.865	0.950	1.200	0.1986	0.147	0.598	0.759
	250	37	13	14	0.558	0.920	1.005	1.265	0.2347	0.174	0.684	0.889
	350	37	11	12	0.661	1.025	1.110	1.390	0.3286	0.238	0.913	1.175
	500	37	16	12	0.789	1.150	1.235	1.550	0.4694	0.341	1.207	1.498
	750	61	15	10	0.968	1.340	1.425	1.805	0.7040	0.508	1.685	2.057
	1000	61	20	10	1.117	1.485	1.575	2.025	0.9387	0.683	2.210	2.516

15kV Copper Conductor
90°C (100% – .175")
Concentric Cable Medium Voltage


Copper	Conductor		Copper Neutra		Diameter* per ANSI/ICEAS-94-649)				Weights(bs/ft)
	AWGo   komi	Number of Strands	Number of Wires	Size AWG	Conductor	Min.Over Insulation	Max.Over Insulation	Over Embedded Jacket	Conductor	Neutra	Total wthout Jadket	TotalWith Embedded Jacket
Full Neutra	2	7	16	14	0.283	0.635	0.720	0.990	0.205	0.232	0.642	0.700
	1	19	13	12	0.322	0.675	0.760	1.015	0.259	0.300	0.504	0.570
	1/00	19	16	12	0.362	0.715	0.800	1.090	0.326	0.370	0.923	0.993
	2/00	19	20	12	0.406	0.760	0.845	1.135	0.411	0.462	1.107	1.176
	3/00	19	25	12	0.456	0.810	0.895	1.150	0.518	0.578	1.334	1.402
	4/00	19	20	10	0.512	0.865	0.950	1.280	0.653	0.740	1.642	1.708
One-Third Neutral	1/00	19	9	14	0.362	0.715	0.800	1.055	0.326	0.131	0.708	0.777
	2/00	19	11	14	0.406	0.760	0.845	1.100	0.411	0.160	0.836	0.907
	3/00	19	14	14	0.456	0.810	0.895	1.130	0.518	0.203	1.002	1.074
	4/00	19	11	12	0.512	0.865	0.950	1.200	0.653	0.255	1.227	1.317
	250	37	13	12	0.558	0.920	1.005	1.265	0.772	0.301	1.427	1.546
	350	37	12	10	0.661	1.025	1.110	1.425	1.080	0.440	1.904	2.055
	500	37	17	10	0.789	1.150	1.235	1.595	1.544	0.623	2.664	2.823
	750	61	25	10	0.968	1.340	1.425	1.875	2.316	0.917	3.794	3.964
	1000	61	26	9	1.117	1.485	1.575	2.015	3.088	1.211	4.948	5.127

15kV Aluminum Conductor
90°C (133% – .220")
Concentric Cable Medium Voltage

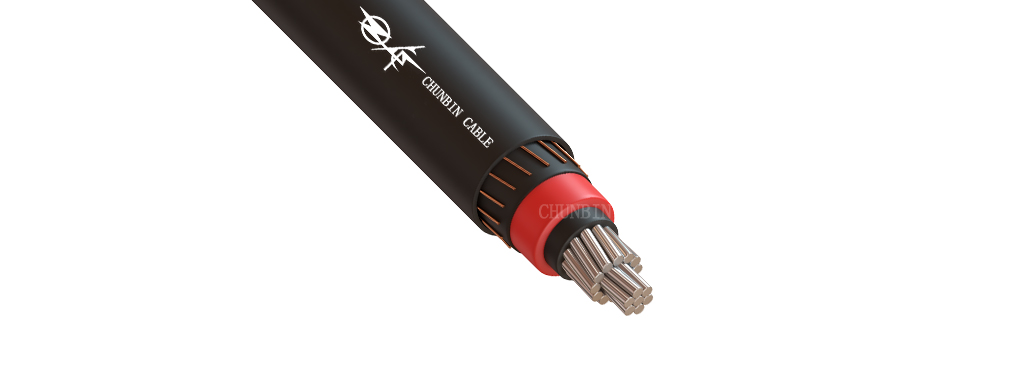

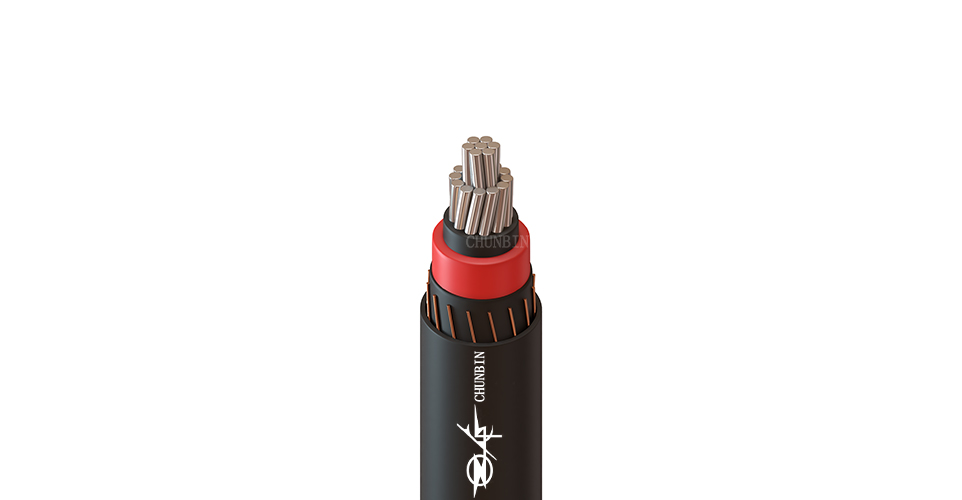

Application: 15kv Copper/Aluminium Conductor concentric cable is primary used for underground distribution, in direct burial or installed in conduit. Suitable for use in wet or dry locations.
Cable construction:
• Conductor Shield – Semi-Conducting Layer
• Insulation – TRXLPE
• Insulation Shield – Semi-Conducting Layer
• Concentric Wires – One-third and Full Neutral
• Jacket – Non-Conducting Polyethylene (LLDPE) with 3
Red Stripes, Semi-Conducting Available


Aluminum	Conductor		Copper Neutra		Dlameter per ANSI/ICEAS-94-649)				Weights (lbs/ft
	AWGor kcmil	Number of Strands	Number of Wires	Size AWG	Conductor	Min.Over Insulation	Max.Over Insulation	Over Embedded Jacket	Conductor	Neutral	Tota Without Jacket	Total With Embedded Jacket
Full    Neutra	2	SOLID	10	14	0.258	0.700	0.790	1.055	0.0610	0.130	0.401	0.537
	2	7	10	14	0.283	0.725	0.815	1.080	0.0623	0.130	0.415	0.549
	1	S0LID	13	14	0.289	0.735	0.820	1.085	0.0770	0.173	0.470	0.604
	1	19	13	14	0.322	0.765	0.855	1.110	0.0785	0.173	0.487	0.619
	1/00	SOLID	16	14	0.325	0.770	0.855	1.120	0.0972	0.210	0.544	0.680
	1/00	19	16	14	0.362	0.805	0.895	1.150	0.0991	0.210	0.562	0.697
	2/00	19	13	12	0.406	0.850	0.935	1.190	0.1249	0.275	0.670	0.830
	3/00	19	16	12	0.456	0.900	0.985	1.260	0.1575	0.340	0.787	0.946
	4/00	19	20	12	0.512	0.955	1.045	1.330	0.1986	0.425	0.934	1.148
One-Third Neutral	1/00	S0LID	6	14	0.325	0.770	0.855	1.120	0.0972	0.080	0.423	0.562
	1/00	19	6	14	0.362	0.805	0.895	1.150	0.0991	0.080	0.441	0.580
	2/00	19	7	14	0.406	0.850	0.935	1.190	0.1249	0.094	0.490	0.643
	3/00	19	9	14	0.456	0.900	0.985	1.240	0.1575	0.120	0.567	0.725
	4/00	19	11	14	0.512	0.955	1.045	1.295	0.1986	0.147	0.656	0842
	250	37	13	14	0.558	1.010	1.100	1.380	0.2347	0.173	0.781	1.013
	350	37	11	12	0.661	1.115	1.200	1.480	0.3286	0.228	0.987	1.266
	500	37	16	12	0.789	1.240	1.330	1.710	0.4694	0.340	1.284	1.597
	750	61	15	10	0.968	1.430	1.520	1.900	0.7040	0.506	1.774	2.230
	1000	61	20	10	1.117	1.575	1.670	2.120	0.9387	0.681	2.301	2.718



15kV Copper Conductor
90°C (133% – .220")
Concentric Cable Medium Voltage


Copper	Conductor		Copper Neutra		Diameter* (per ANSI/ICEAS-94-649)				Weights(lbs/ft)
	AWGor kamil	Number of Strands	Number of Wires	Size AWG	Conducton	Min.Over Insulation	Max.Over Insulation	Over Embedded Jacket	Conductor	Neutral	Total Without Jacket	Total With Embedded Jadket
Full Neutral	2	7	16	14	0.283	0.725	0.815	1.080	0.205	0.232	0.695	0.760
	1	19	13	12	0.322	0.765	0.855	1.110	0.259	0.300	0.559	0.633
	1/00	19	16	12	0.362	0.805	0.895	1.180	0.326	0.370	0.982	1.060
	2/00	19	20	12	0.406	0.850	0.935	1.225	0.411	0.462	1.169	1.246
	3/00	19	25	12	0.456	0.900	0.985	1.290	0.518	0.578	1.399	1.475
	4/00	19	20	10	0.512	0.955	1.045	1.370	0.653	0.740	1.747	1,825
One-Third Neutral	1/00	19	9	14	0.362	0.805	0.895	1.150	0.326	0.131	0.767	0.842
	2/00	19	11	14	0.406	0.850	0.935	1.190	0.411	0.160	0.897	0.975
	3/00	19	14	14	0.456	0.900	0.985	1.250	0.518	0.203	1.066	1.145
	4/00	19	11	12	0.512	0.955	1.045	1.295	0.653	0.255	1.333	1.434
	250	37	13	12	0.558	1.010	1.100	1.380	0.772	0.301	1.539	1.673
	350	37	12	10	0.661	1.115	1.200	1.515	1.080	0.440	1.987	2.149
	500	37	17	10	0.789	1.240	1.330	1.750	1.544	0.624	2.754	2.924
	750	61	25	10	0.968	1.430	1.520	1.965	2.316	0.918	3.952	4.138
	1000	61	26	9	1.117	1.575	1.670	2.200	3.088	1.211	5.061	5.251



15 kV .175" TRXLPE Concentric neutral underground cable Concentric Cable Medium Voltage
Application: 15kv Copper/Aluminium Conductor concentric cable is primary used for underground distribution, in direct burial or installed in conduit. Suitable for use in wet or dry locations.
Cable construction: 175" TRXLPE 15kV concentric neutral underground cable, 100% insulation thickness, compressed stranding and solid conductors.


Aluminum	Conductor		CopperNeutra		Resistance DC OHMS per 1000 90℃	Inductive Reactance	Ampacity-20°CAmbient 100%LF,RHO-90
	aWGor kcmi	Numberof Strands	Numberof Wires	Size AWG		OHMSper 1000'	1/CDirect   Buried	1/CDuct Bumied	1/CDuct InAir
Full Neutra	2	S0LID	10	14	3280	032	170	115	100
	2	7	10	14	3360	030	170	115	100
	1	S0LID	13	14	2600	030	195	140	123
	1	19	13	14	2650	029	195	140	123
	1/00	SOLID	16	14	2060	028	230	155	135
	1/00	19	16	14	2110	028	230	155	135
	2/00	19	13	12	.1670	025	270	185	162
	3/00	19	16	12	.1320	024	295	210	184
	4/00	19	20	12	.1050	023	335	240	210
						OHMSto Neutralper 1000	3/C Dired   Buried 8   Spadng	3/CTriplex in Duct	3/CDuct InAir
One-Third Neutral	1/00	SOLID	6	14	2060	.102	230	165	145
	1/00	19	6	14	2110	099	230	165	145
	2/00	19	7	14	.1670	097	250	190	167
	3/00	19	9	14	.1320	094	280	215	189
	4/00	19	11	14	.1050	092	320	245	215
	250	37	13	14	0890	089	345	270	237
	350	37	11	12	0635	085	405	325	285
	500	37	16	12	0445	082	460	385	338
	750	61	15	10	0296	.077	515	475	417
	1000	61	20	10	0222	074	565	540	475



Copper	Conductor		CopperNeutra		Resistance DC OHMS per 1000 90℃	nductive Reactance	Ampacity-20°CAmbient 100%LF,RH0-90
	AWGor kcmi	Number of Strands	Number of Wires	Size AWG		OHMSper 1000	1/CDirect   Buried	1/CDuct   Buried	1/CDuct   In Air
Ful Neutra	2	7	16	14	2020	030	225	160	140
	1	19	13	12	1610	029	260	185	162
	1/00	19	16	12	1270	028	295	210	185
	2/00	19	20	12	1020	025	330	240	210
	3/00	19	25	12	0802	024	375	270	237
	4/00	19	20	10	0635	023	430	305	268
						OHMS to Neutralper 1000	3/C Direc   Buried  8   Spadng	3/CTriplex   in Duct	3/CDuct   In Air
One-Third Neutra	1/00	19	9	14	1270	099	290	210	185
	2/00	19	11	14	1020	097	320	240	210
	3/00	19	14	14	0802	094	350	275	241
	4/00	19	11	12	0635	092	390	315	276
	250	37	13	12	0539	089	415	340	298
	350	37	12	10	0385	085	475	415	364
	500	37	17	10	0270	082	525	480	420
	750	61	25	10	0180	077	560	530	465
	1000	61	26	9	0135	074	600	590	518

15 kV .220" TRXLPE Concentric neutral underground cable Concentric Cable Medium Voltage
Application: 15kv Copper/Aluminium Conductor concentric cable is primary used for underground distribution, in direct burial or installed in conduit. Suitable for use in wet or dry locations.
Cable construction
.220" TRXLPE 15kV concentric neutral underground cable, 133% insulation thickness, compressed stranding and solid conductors.


Aluminum	Conductor		CopperNeutral		Resistance DC OHMSper 1000 @90℃	nductive Reactance	Ampacity-20℃Ambient 100%LF,RHO-90
	AWGor kcmi	Numberof Strands	Number  of Wires	SzeAWG		OHMSper 1000	1/C Direc Buried	1/CDuct Buried	1/CDuct InAir
Ful Neutra	2	S0LID	10	14	3280	033	170	115	100
	2	7	10	14	3360	031	170	115	100
	1	SOLID	13	14	2600	031	195	140	123
	1	19	13	14	2650	029	195	140	123
	1/00	S0LID	16	14	2060	028	230	155	135
	1/00	19	16	14	2110	028	230	155	135
	2/00	19	13	12	.1670	026	270	185	162
	3/00	19	16	12	1320	024	295	210	184
	4/00	19	20	12	.1050	024	335	240	210
						OHMS to Neutralper 1000'	3/C Direc Buried 8" Spadng	3/CTriplex n Duct	3/CDuct InAir
One-Third Neutral	1/00	S0LID	6	14	2060	.102	230	165	145
	1/00	19	6	14	2110	099	230	165	145
	2/00	19	7	14	.1670	097	250	190	167
	3/00	19	9	14	.1320	094	280	215	189
	4/00	19	11	14	.1050	092	320	245	215
	250	37	13	14	0890	089	345	270	237
	350	37	11	12	0635	085	405	325	285
	500	37	16	12	0445	082	460	385	338
	750	61	15	10	0296	077	515	475	417
	1000	61	20	10	0222	074	565	540	475



Copper	Conductor		CopperNeutra		ResistanceDC OHMS per 1000 @90℃	Inductive Reactance	Ampacity-20℃Ambient 100%LF,RHO-90
	AWGor kcmil	Numberof   Strands	Number  of Wires	SizeAWG		OHMSper 1000'	1/C Direc Buried	1/CDuct   Buried	1/CDuct    In Air
Ful Neutra	2	7	16	14	2020	031	225	160	140
	1	19	13	12	1610	029	260	185	162
	1/00	19	16	12	1270	028	295	210	185
	2/00	19	20	12	1020	026	330	240	210
	3/00	19	25	12	0802	024	375	270	237
	4/00	19	20	10	0635	024	430	305	268
						OHMS to Neutralper 1000	3/C Direc Buried 8" Spadng	3/CTriplex    n Duc	3/CDuct    InAir
One-Third Neutral	1/00	19	9	14	1270	099	290	210	185
	2/00	19	11	14	1020	097	320	240	210
	3/00	19	14	14	0802	094	350	275	241
	4/00	19	11	12	0635	092	390	315	276
	250	37	13	12	0539	089	415	340	298
	350	37	12	10	0385	085	475	415	364
	500	37	17	10	0270	082	525	480	420
	750	61	25	10	0180	077	560	530	465
	1000	61	26	9	0135	074	600	590	518
