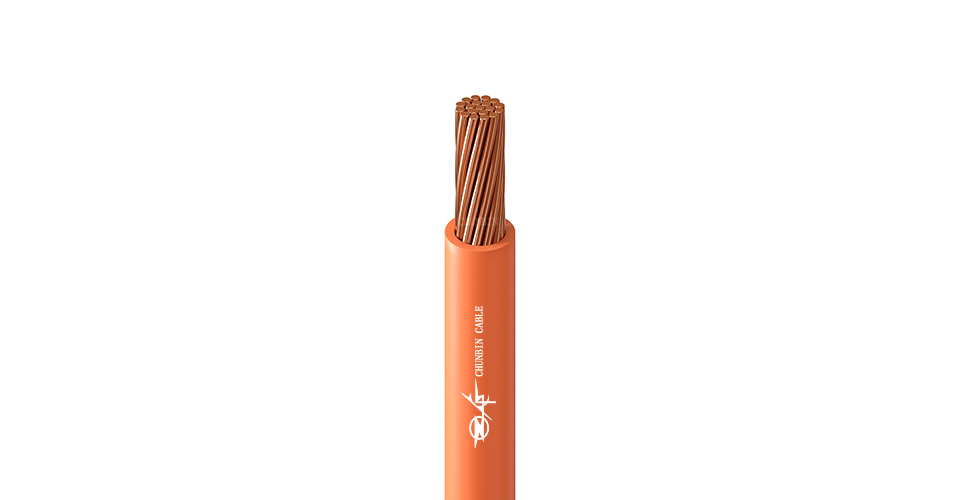

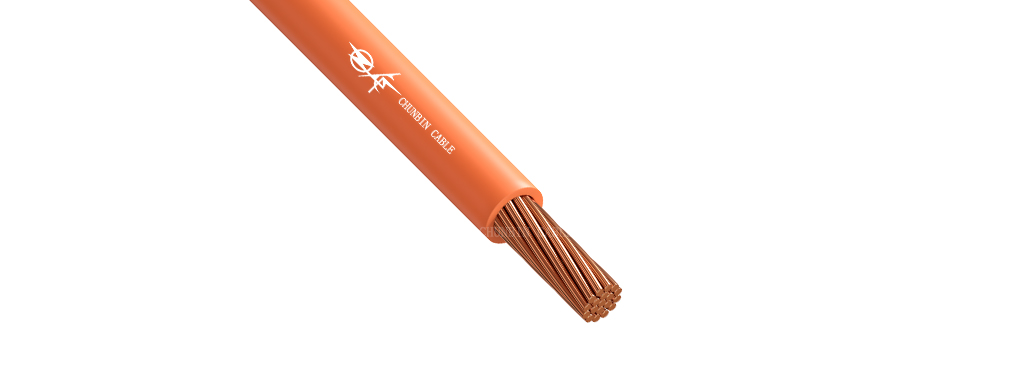

XHHW-2 COPPER CONDUCTOR

Introduction

Application:
1000/600 Volt Type XHHW-2 is intended for use as general purpose wiring for up to 1000 volt rated services in air conduit or other recognized raceways for services, feeders and branch circuit wiring as specified in the National Electrical Code at a maximum conductor temperature of 90℃ in wet or dry locations.
Construction:
1. Conductors: Annealed stranded bare copper per ASTM B3 and B8. Class B Stranding per ASTM B8.
2. Insulation: thermoset cross-linked polyethylene
3. Colors: Available in black, white, red, blue, brown, orange, yellow, purple, gray, and green. Some colors are subject to economic order quantity.
Standards: ASTM-B3 and B8, UL44, IEC60227

Technical parameter

ASTM – B3 , B8 UL44

XHHW-2 COPPER CONDUCTOR ASTM – B3 , B8 UL44
XHHW-2 COPPER CONDUCTOR ASTM – B3 , B8 UL44
Conductor		Insulation Thickness		Nominal O.D.	Approx.weight	Approx. weight
AG/kcmil	Min.No.	mm	miles	mm	kg/km	60℃	75℃	90℃
12	7	0.76	30	3.8	38	20	20	20
10	7	0.76	30	4.4	57	30	30	30
8	7	1.14	45	5.7	94	40	50	55
6	7	1.14	45	6.6	142	55	65	75
4	7	1.14	45	7.7	218	70	85	95
2	7	1.14	45	9.1	336	85	100	115
1	18	1.4	55	10.4	428	95	115	130
1/0	18	1.4	55	11.3	533	110	130	145
2/0	18	1.4	55	12.4	664	125	150	170
3/0	18	1.4	55	13.5	830	145	175	195
4/0	18	1.4	55	14.9	1036	165	200	225
250	35	1.65	65	16.5	12237	195	230	260
300	35	1.65	65	17.8	1470	215	255	290
350	35	1.65	65	19	1704	240	285	320
400	35	1.65	65	20	1946	260	310	350
500	35	1.65	65	22	2410	280	335	380
600	58	2.03	80	24.7	2916	320	380	430
700	58	2.03	80	26.3	3390	350	420	475
750	58	2.03	80	27.1	3662	385	460	520
900	58	2.03	80	29.4	4328	400	475	535
1000	58	2.03	80	31	4801	455	545	615
