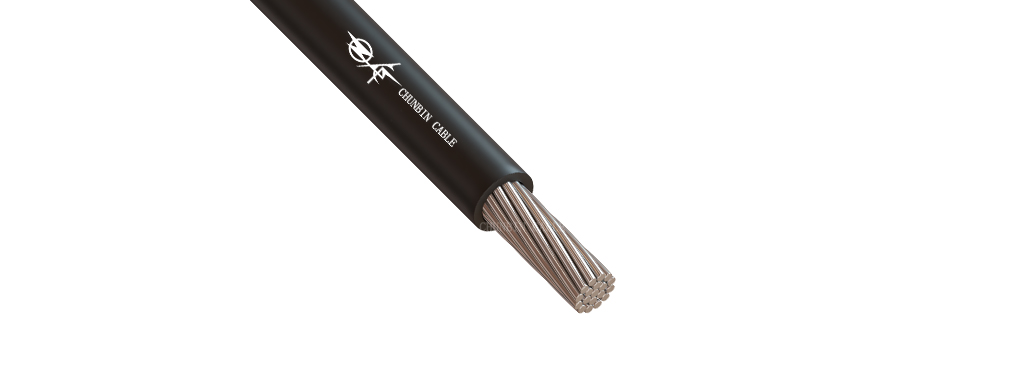

XHHW-2 ALUMINUM CONDUCTOR

Introduction

Application:
1000/600 Volt Type XHHW-2 is intended for use as general purpose wiring for up to 1000 volt rated services in air conduit or other recognized raceways for services, feeders and branch circuit wiring as specified in the National Electrical Code at a maximum conductor temperature of 90℃ in wet or dry locations.
Construction:
1. Conductors: AA-8000 series aluminum alloy, compact stranded.
2. Insulation: thermoset cross-linked polyethylene
3. Colors: Available in black, white, red, blue, brown, orange, yellow, purple, gray, and green. Some colors are subject to economic order quantity.
Standards: ASTM-B800, UL44,

Technical parameter

ASTM – B800 UL 44

XHHW-2 ALUMINUM CONDUCTOR ASTM – B800 UL 44
XHHW-2 ALUMINUM CONDUCTOR ASTM – B800 UL 44
	Conductor		Insulation thickness		Nominal O.D.	Approx. weight	Ampacity+
AWG/kcmil	Min.No.	mm	miles	mm	kg/km	60℃	75℃	90℃
8	7	1.14	45	5.7	41	35	40	45
6	7	1.14	45	6.6	58	40	50	55
4	7	1.14	45	7.7	84	55	65	75
2	7	1.14	45	9.1	124	75	90	100
1	18	1.4	55	10.4	160	85	100	115
1/0	18	14	55	11.3	196	100	120	135
2/0	18	1.4	55	12.4	239	115	135	150
3/0	18	1.4	55	13.5	293	130	155	175
4/0	18	1.4	55	14.9	360	150	180	205
250	35	1.65	65	16.5	435	170	205	230
300	35	1.65	65	17.8	511	195	230	260
350	35	1.65	65	19	587	210	250	280
400	35	1.65	65	20	665	225	270	305
500	35	1.65	65	22	814	260	310	350
600	58	2.03	80	24.7	998	285	340	385
700	58	2.03	80	26.3	1150	315	375	425
750	58	2.03	80	27.1	1224	320	385	435
900	58	2.03	80	29.4	1450	355	425	480
1000	58	2.03	80	31	1601	375	445	500
