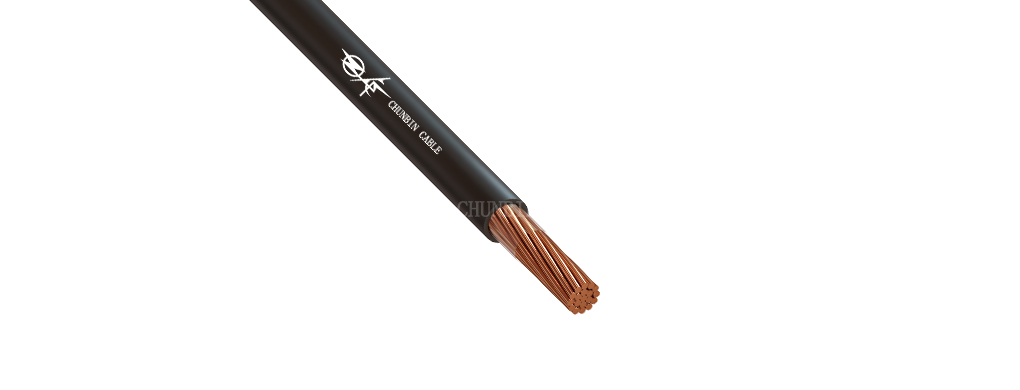

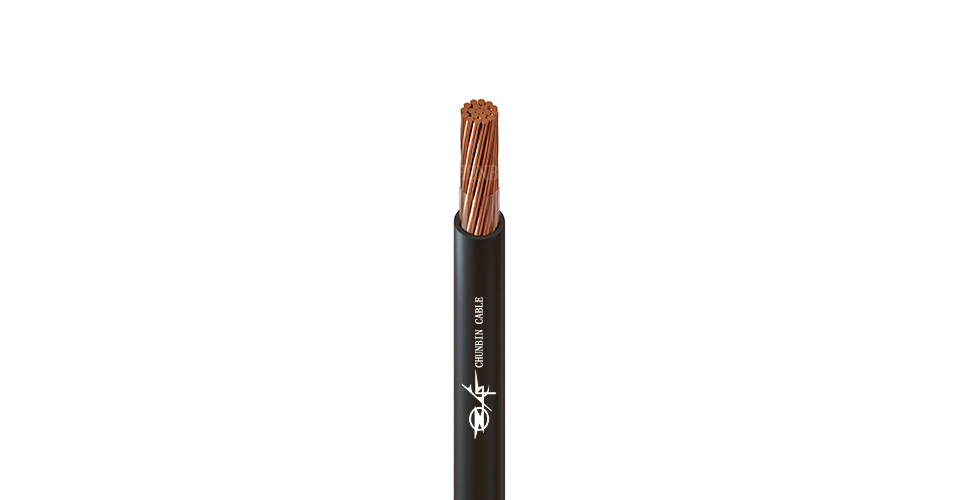

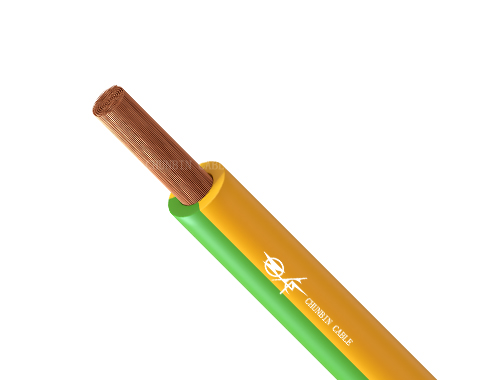

RHH/RHW-2/USE-2 COPPER CONDUCTOR

Introduction

Application:
Type RHH or RHW-2 or USE-2 conductors are used with conduit as specified in the National Electrical Code. When used as Type USE-2, conductors are suitable for use as underground service entrance conductors for direct burial at conductor temperatures not to exceed 90°C. When used as RHW-2 or USE-2, conductor temperatures shall not exceed 90°C in wet or dry locations. Voltage rating for RHW-2 or RHH or USE-2 conductors is 600 volts.
Construction:
Type RHH or RHW-2 or USE-2 copper conductors are annealed (soft) copper. Insulation is an abrasion, moisture, heat, and sunlight resistant black crosslinked polyethylene (XLP). An optional CT rated product is available upon request for sizes 1/0 and larger.
Standards: ASTM-B3, B8 UL44, UL854

Technical parameter

ASTM - B3,B8,B8487 UL 44 UL854

RHH/RHW-2/USE-2 COPPER CONDUCTOR ASTM - B3,B8,B8487 UL 44 UL854

	Conductor		Insulation thickness		Nominal O.D.	Approx. weight	Ampacity+
AG/kcmil	Min.No.	mm	miles	mm	kg/km	60℃	75℃	90℃
14	7	1.14	45	4.1	30	15	15	15
12	7	1.14	45	4.5	43	20	20	20
10	7	1.14	45	5.2	64	30	30	30
8	7	1.52	60	6.4	102	40	50	55
6	7	1.52	60	7.3	151	55	65	75
4	7	1.52	60	8.5	229	70	85	95
2	7	1.52	60	9.9	349	95	115	130
1	18	2.03	80	11.7	452	110	130	145
1/0	18	2.03	80	12.6	559	125	150	170
2/0	18	2.03	80	13.6	693	145	175	195
3/0	18	2.03	80	14.8	861	165	200	225
4/0	18	2.03	80	16.1	1069	195	230	260
250	35	2.41	95	18	1282	215	255	290
300	35	2.41	95	19.3	1519	240	285	320
8	35	2.41	95	20.5	1756	260	310	350
400	35	2.41	95	21.6	2001	280	335	380
500	35	2.41	95	23.5	2470	320	380	430
600	58	2.79	110	26.2	2983	350	420	475
700	58	2.79	110	27.9	3461	385	460	520
750	58	2.79	110	28.6	3695	400	475	535
900	58	2.79	110	31	4407	435	520	585
1000	58	2.79	110	32.5	4884	455	545	615
