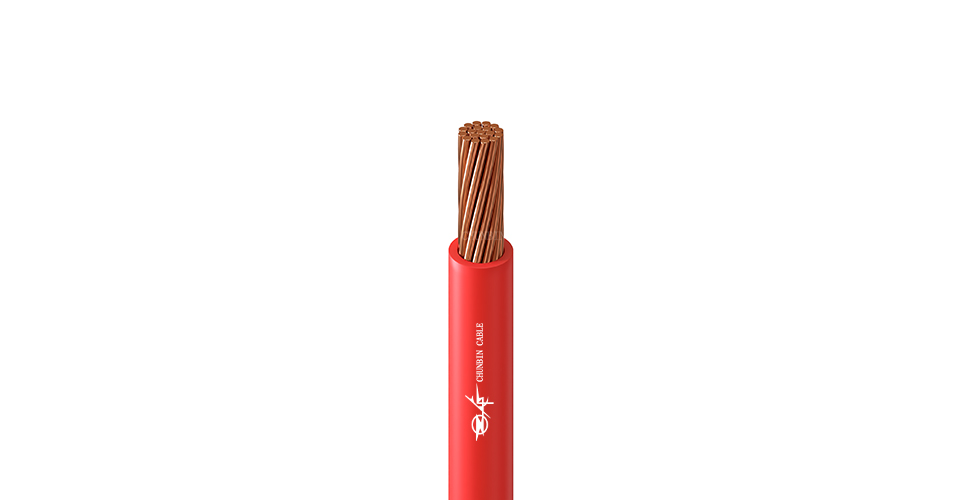

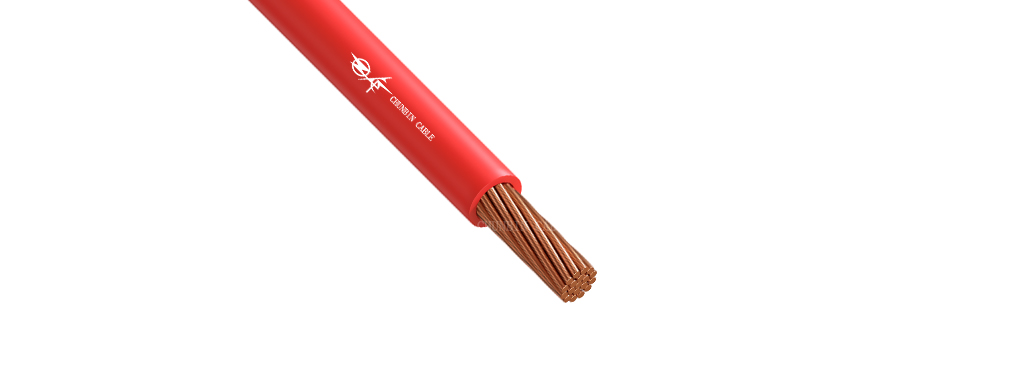

H07V-R

Introduction

Application:
Flexible cable for dry areas, used for purposes requiring special flexibility in conditions free of any mechanical stresses. Permitted frequent bending and twisting.
Specially suitable for application in small devices with low mechanical loads and for connection of light household devices such as kitchen appliances, desk lamps, ceiling lamps, vacuum cleaners, office machines, radios etc., as long as the cable is adapted to essential Specification of the device.
These cables must not be used for cooking and heating devices. They are not suitable for outdoor use or for industrial (except for sewing - machines and similar) and agricultural machines.
Construction:
1. Conductor: Copper, class 5, flexible conductors
2. Insulation: Polyvinyl chloride PVC
3. Sheath: Polyvinyl chloride PVC
Standards: IEC60227-5, BS6004

Technical parameter

IEC60227-5

BS6004

H07V-R IEC60227-5
Conductor		Insulation Thickness	Sheath Thickness	Overall Diameter		Approx. Weight	Max.D.C.Resistance of Conductor at 20ºC	Allowable Ampacities
				Min.	Max.
mm²	Class of conductor	mm	mm	mm	mm	kg/km	Ω/km	A
2×0.75	5	0.6	0.8	5.7 or 3.7×6.0	7.2 or 4.5×7.2	48	26	12
2×1	5	0.6	0.8	5.9 or 3.9×6.2	7.5 or 4.7×7.5	59	19.5	14
2×1.5	5	0.7	0.8	6.8	8.6	76	13.3	18
2×2.5	5	0.8	1	8.4	10.6	116	7.98	25
2×4	5	0.8	1.1	9.7	12.1	171	4.95	33
3×0.75	5	0.6	0.8	6	7.6	61	26	10
3×1	5	0.6	0.8	6.3	8	80	19.5	12
3×1.5	5	0.7	0.9	7.4	9.4	111	13.3	15
3×2.5	5	0.8	1.1	9.2	11.4	169	7.98	21
3×4	5	0.8	1.1	10.3	12.8	235	4.95	28
4×0.75	5	0.6	0.8	6.6	8.3	78	26	10
4×1	5	0.6	0.9	7.1	9	104	19.5	12
4×1.5	5	0.7	1	8.4	10.5	143	13.3	15
4×2.5	5	0.8	1.1	10.1	12.5	211	7.98	21
4×4	5	0.8	1.2	11.5	14.3	296	4.95	28
5×0.75	5	0.6	0.9	7.4	9.3	94	26	10
5×1	5	0.6	0.9	7.8	9.8	124	19.5	12
5×1.5	5	0.7	1.1	9.3	11.6	176	13.3	15
5×2.5	5	0.8	1.2	11.2	13.9	261	7.98	21
5×4	5	0.8	1.3	12.8	15.9	372	4.95	28

Section mm²	Class of Conductor	Insulation Thickness mm	Overall Diameter mm	Cable Weight kg/km	Electrical Resistance DC.20℃ Ω/km
0.75	2	0.6	2.2	11	24.5
1	2	0.6	2.6	14	18.1
H07V-R /6491X/NYA 450/750V
1.5	2	0.7	3.3	20	12.1
2.5	2	0.8	4	32	7.41
4	2	0.8	4.6	47	4.61
6	2	0.8	5.2	66	3.08
10	2	1	6.7	113	1.83
16	2	1	7.8	170	1.15
25	2	1.2	9.7	267	0.727
35	2	1.2	10.9	361	0.524
50	2	1.4	12.8	490	0.387
70	2	1.4	14.6	690	0.268
95	2	1.6	17.1	954	0.193
120	2	1.6	18.8	1190	0.153
150	2	1.8	20.9	1464	0.124
185	2	2	23.3	1835	0.0991
240	2	2.2	26.6	2402	0.0754
300	2	2.4	29.6	3005	0.0601
400	2	2.6	33.2	3828	0.047
