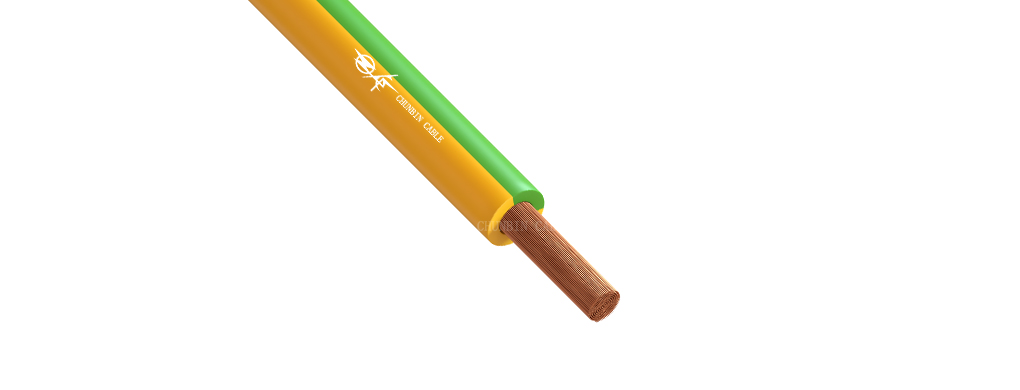

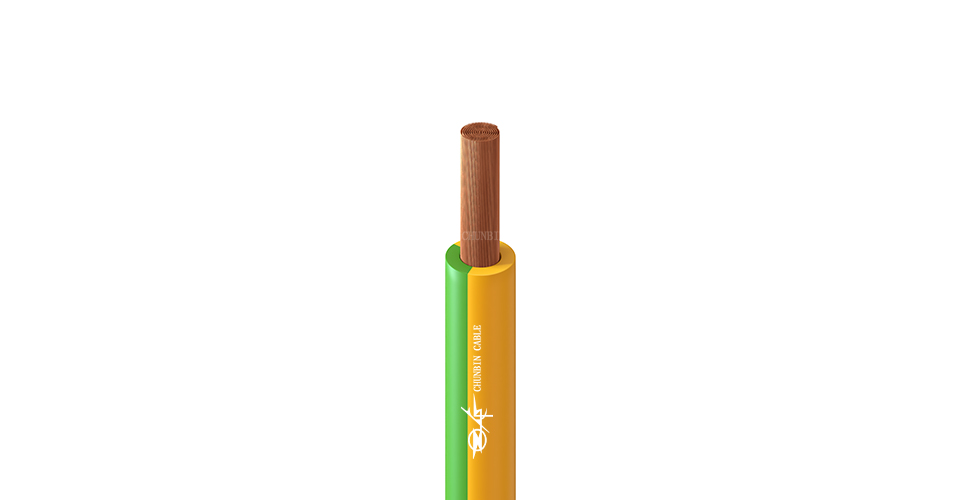

H07V-K

Introduction

Application:
Insulated conductor is used for laying in electric - installation tubes, under and on plaster installation in dry rooms and in closed installation conduits. Direct laying in cable guides is not permitted. Also applied for internal wiring of distribution and switching boxes equipment.
Construction：
1. Conductor: Copper, class 1, solid conductors
2. Insulation: Polyvinyl chloride PVC
Standards: IEC 60227-3, BS 6004

Technical parameter

IEC 60227-3

BS 6004

H07V-K IEC 60227-3
H07V-K IEC 60227-3
Conductor		Insulation Thickness	Overall Diameter		Approx.weight	Max.D.C.Resistance of conductor at 20 ℃	Allowable Ampacities
			Min	Max
mm2	Class of Conductor	mm	mm	mm	kg/km	Ω/km	A
1.5	5	0.7	2.8	3.4	21	13.3	18
2.5	5	0.8	3.4	4.1	34	7.98	25
4	5	0.8	3.9	4.8	50	4.95	33
6	5	0.8	4.4	5.3	71	3.3	42
10	5	1.0	5.7	6.8	107	1.91	58
16	5	1.0	6.7	8.1	169	1.21	78
25	5	1.2	8.4	10.2	266	0.78	105
35	5	1.2	9.7	11.7	347	0.554	130
50	5	1.4	11.5	13.9	486	0.386	155
70	5	1.4	13.2	16	705	0.272	200
95	5	1.6	15.1	18.2	905	0.206	250
120	5	1.6	16.7	20.2	1117	0.161	290
150	5	1.8	18.6	22.5	1380	0.129	335
185	5	2.0	20.6	24.9.	1742	0.106	390
240	5	2.0	23.5	28.4	2152	0.0801	470

Cross Section mm²	Class of Conductor	Insulation Thickness mm	Overall Diameter mm	Cable Weight kg/km	Electrical Resistance DC. 20℃ （Ω/km）
H05V.K 300/500V
0.5	5	0.6	2.5	8	39
0.75	5	0.6	2.7	11	26
1	5	0.6	2.8	13	19.5
H07V-K/2491X/N07V-K/NYAF 450/750V
1.5	5	0.7	3.4	19	13.3
2.5	5	0.8	4.1	30	7.98
4	5	0.8	4.8	46	4.95
6	5	0.8	5.3	67	3.3
10	5	1	6.8	121	1.91
16	5	1	8.1	173	1.21
25	5	1.2	10.2	268	0.78
35	5	1.2	11.7	370	0.554
50	5	1.4	13.9	526	0.386
70	5	1.4	16	727	0.272
95	5	1.6	18.3	959	0.206
120	5	1.6	20.2	1201	0.161
150	5	1.8	22.5	1508	0.129
185	5	2	24.9	1844	0.106
240	5	2.2	28.4	2420	0.0801
