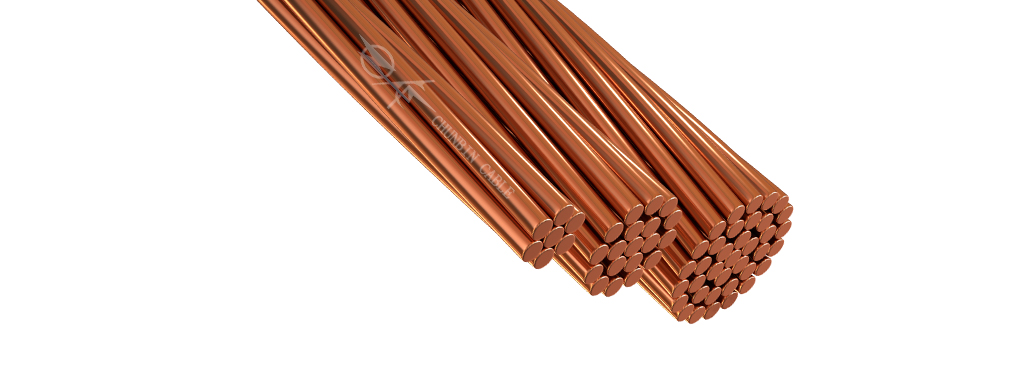

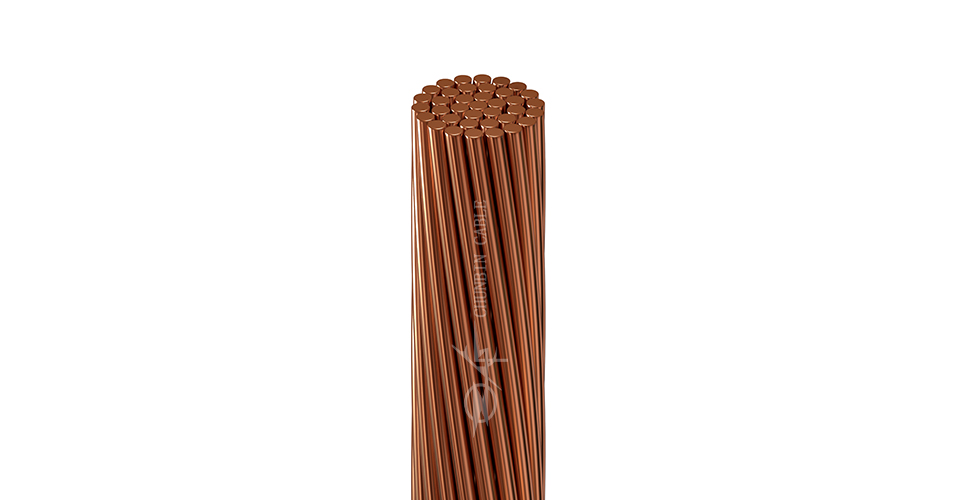

HDBC-Hard -Drawn Bare Copper Conductor

technical parameter

SOLID

CLASS A

Size	Section		Diameter DC	Resistance at 20℃	Minimum Wire Elongation	Minimum Tensile Strength		Total Weight
Size	Section		Diameter DC	Resistance at 20℃	Minimum Wire Elongation	Minimum Tensile Strength		Total Weight
AWG	Cmils	mm²	mm	Ω/km	%	MPA	kg/mm²	kg/km
1	83690	42.41	7.348	0.423	2.2	385	39.3	377
2	66360	33.62	6.543	0.533	2	395	40.3	299
4	41740	21.15	5.189	0.848	1.7	415	42.3	188
6	26240	13.30	4.115	1.349	1.4	430	43.8	118
8	16510	8.37	3.264	2.143	1.3	440	44.9	74
10	10380	5.26	2.588	3.409	1.2	445	45.4	47
12	6530	3.31	2.052	5.419	1.1	455	46.4	29
14	4110	2.08	1.628	8.610	1	455	46.4	19
16	2580	1.31	1.290	13.715	1	460	46.9	12
18	1620	0.82	1.024	21.843	1	460	46.9	7

Size	Section		Number Of Wires	Wire Diameter	Conducto Diameter	Resistance DC @20℃	Minimum Wire Elongation Before Stranding	Minimum Tensile Strenght	Minimum Tensile Strenght After Stranding	Total Weight
AWG/MCM	Cmils	mm²	Number Of Wires	mm	mm	Q/km	%	kg/mm²	kg	kg/km
4	41740	21.1	7	1.96	5.88	0.865	1.1	46.4	883	192
2	66360	33.6	7	2.47	7.42	0.544	1.2	45.4	1373	305
1/0	105600	53.5	19	1.89	9.47	0.342	1.1	46.4	2234	485
2/0	133100	67.4	19	2.13	10.6	0.271	1.1	45.9	2785	611
4/0	211600	107.2	19	2.68	13.4	0.171	1.2	45.4	4379	972
250	250000	126.7	37	2.09	14.6	0.144	1.1	45.9	5231	1149
300	300000	152.0	37	2.29	16	0.120	1.1	45.9	6278	1379
350	350000	177.3	37	2.47	17.3	0.103	1.2	45.4	7243	1609
400	400000	202.7	37	2.64	18.5	0.090	1.2	45.4	8277	1838
500	500000	253.4	37	2.95	20.7	0.072	1.3	44.9	10230	2298
600	600000	304.0	61	2.52	22.7	0.060	1.2	45.4	12416	2758
700	700000	354.7	61	2.72	24.5	0.052	1.2	45.4	14485	3216
750	750000	380.0	61	2.82	25.3	0.048	1.2	45.4	15520	3447
800	800000	405.4	61	2.91	26.2	0.045	1.3	44.9	16369	3676
900	900000	456.0	61	3.09	27.8	0.040	1.3	44.9	18415	4136
1000	1000000	506.7	61	3.25	29.3	0.036	1.3	44.9	20461	4596
CLASS A
Size	Section		Number Of Wires	Wire Diameter	Conducto Diameter	Resistance DC @20℃	Minimum Wire Elongation Before Stranding	Minimum Tensile Strenght	Minimum Tensile Strenght After Stranding	Total Weight
AWG/MCM	Cmils	mm²	Number Of Wires	mm	mm	Q/km	%	kg/mm²	kg	kg/km
6	26240	13.3	7	1.56	4.67	1.380	1	46.4	555	121
4	41740	21.1	7	1.96	5.88	0.865	1.1	46.4	883	192
2	66360	33.6	7	2.47	7.42	0.544	1.2	45.4	1373	305
36526	105600	53.5	19	1.89	9.47	0.342	1.1	46.4	2234	485
36557	133100	67.4	19	2.13	10.6	0.271	1.1	45.9	2785	611
36617	211600	107.2	19	2.68	13.4	0.171	1.2	45.4	4379	972
250	250000	126.7	37	2.09	14.6	0.144	1.1	45.9	5231	1149
300	300000	152.0	37	2.29	16	0.120	1.1	45.9	6278	1379
350	350000	177.3	37	2.47	17.3	0.103	1.2	45.4	7243	1609
400	400000	202.7	37	2.64	18.5	0.090	1.2	45.4	8277	1838
500	500000	253.4	37	2.95	20.7	0.072	1.3	44.9	10230	2298
600	600000	304.0	61	2.52	22.7	0.060	1.2	45.4	12416	2758
700	700000	354.7	61	2.72	24.5	0.052	1.2	45.4	14485	3216
750	750000	380.0	61	2.82	25.3	0.048	1.2	45.4	15520	3447
800	800000	405.4	61	2.91	26.2	0.045	1.3	44.9	16369	3676
900	900000	456.0	61	3.09	27.8	0.040	1.3	44.9	18415	4136
1000	1000000	506.7	61	3.25	29.3	0.036	1.3	44.9	20461	4596

Nominal Sectiona Area	Number & Diameter of Wire	Overal Diamete	Maximum Conductor Resistance @20℃	Breaking Strength	Allowable Ampacities in Free Air	Cable Weight (approx)	Standar Packing
mm	No./mm	mm	Q/km	kgf	A	kg/km	m
10	7/1.35	4.05	1.8054	438	90	90	1000/R
16	7/1.70	5.10	1.1385	694	125	143	1000/R
25	7/2.14	6.42	0.7185	1076	160	227	1000/R
35	7/2.52	7.56	0.5181	1459	200	314	1000/R
50	7/3.02	9.06	0.3589	2095	250	452	1000/R
50	19/1.78	8.90	0.3825	2021	250	428	1000/R
70	19/2.14	10.70	0.2646	2921	310	618	1000/R
95	19/2.52	12.60	0.1918	3961	380	858	1000/R
120	19/2.85	14.25	0.1492	5067	440	1097	1000/R
150	37/2.25	15.75	0.1238	6289	510	1334	1000/R
185	37/2.52	17.64	0.0981	7713	585	1673	1000/R
240	61/2.25	20.25	0.0752	10369	700	2200	1000/R
300	61/2.52	22.68	0.0600	12717	800	2760	1000/R
400	61/2.85	25.65	0.0469	16266	900	3350	1000/R
500	61/3.20	28.80	0.0370	20506	1110	4451	1000/R
