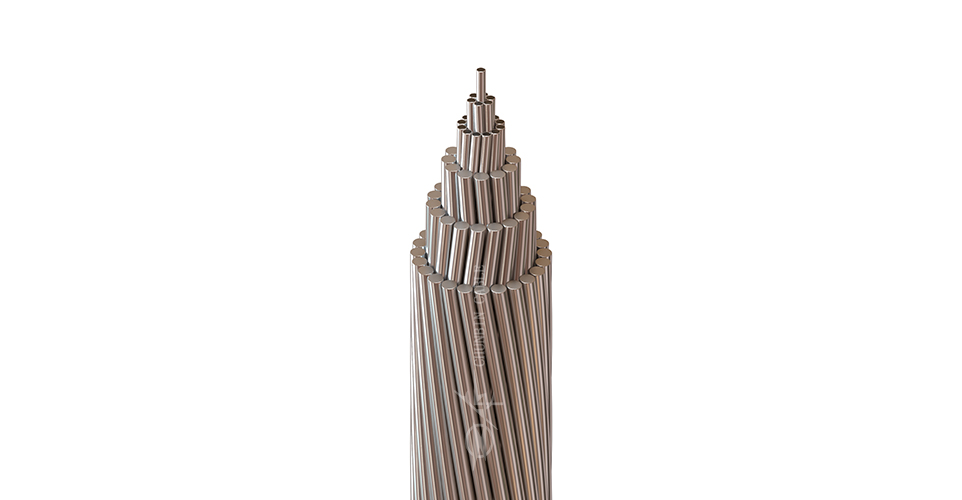

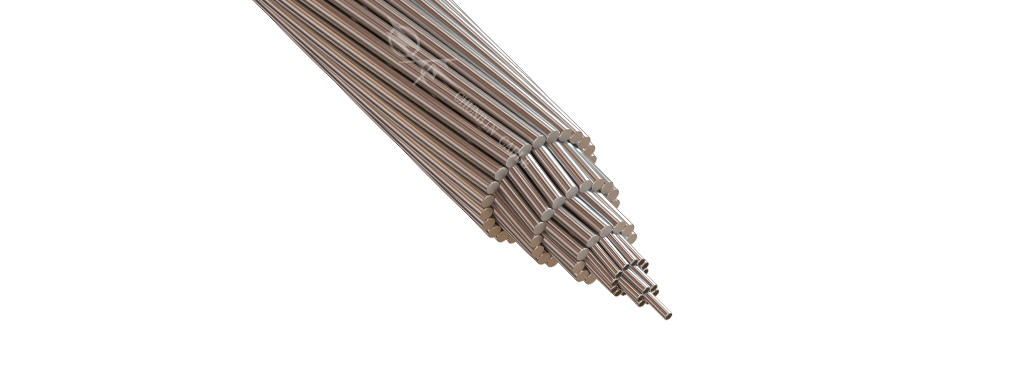

ACSR/AW-Aluminum Conductor Aluminum Clad Steel Reinforced

Technical parameter

ASTM B 549

GB/T 1179

ACSR/AW ASTM B 549
Code Name	Conductor Size - Aluminum		Aluminum		Aluminum-Clad Steel		Nominal Outside Diameter	Mass per Unit Length	Conductor Rated Strength	DC Resistance at 20°C
Code Name	Conductor Size - Aluminum		Number of Wires	Nominal Diameter	No. of Wires	Nominal Diameter	Nominal Outside Diameter	Mass per Unit Length	Conductor Rated Strength	DC Resistance at 20°C
	MCM	mm²	mm²	mm²		mm	mm	kg/km	kN	Ω/km
Thrasher	2312	1171	76	4.43	19	2.07	45.79	3679	246	0.0244
Kiwi	2167	1098	72	4.41	7	2.94	44.1	3366	218	0.0261
Bluebird	2156	1092	84	4.07	19	2.44	44.76	3627	262	0.0259
Chukar	1780	902	84	3.7	19	2.22	40.7	2996	220	0.0314
Falcon	1590	806	54	4.36	19	2.62	39.26	2917	236	0.0346
Lapwing	1590	806	45	4.78	7	3.18	38.22	2598	186	0.0351
Parrot	1510.5	765	54	4.25	19	2.55	38.25	2768	224	0.0364
Nuthatch	1510.5	765	45	4.65	7	3.1	37.2	2467	177	0.037
Plover	1431	725	54	4.14	19	2.48	37.24	2625	212	0.0384
Bobolink	1431	725	45	4.53	7	3.02	36.24	2336	167	0.039
Martin	1351.5	685	54	4.02	19	2.41	36.17	2478	201	0.0407
Dipper	1351.5	685	45	4.4	7	2.93	35.19	2207	158	0.0414
Pheasant	1272	645	54	3.9	19	2.34	35.1	2333	189	0.0433
Bittern	1272	645	45	4.27	7	2.85	34.17	2078	149	0.0439
Skylark	1272	645	36	4.78	1	4.78	33.46	1893	114	0.0442
Grackle	1192.5	604	54	3.77	19	2.27	33.97	2188	179	0.0463
Bunting	1192.5	604	45	4.14	7	2.76	33.12	1948	139	0.0467
Finch	1113	564	54	3.65	19	2.19	32.85	2043	167	0.0494
Bluejay	1113	564	45	4	7	2.66	31.98	1819	130	0.0501
Curlew	1033.5	524	54	3.51	7	3.51	31.59	1896	158	0.0534
Ortolan	1033.5	524	45	3.85	7	2.57	30.81	1688	121	0.054
Tanager	1033.5	524	36	4.3	1	4.3	30.1	1537	94	0.0546
Cardinal	954	483	54	3.38	7	3.38	30.42	1752	146	0.0573
Rail	954	483	45	3.7	7	2.47	29.61	1558	113	0.0585
Catbird	954	483	36	4.14	1	4.14	28.98	1420	87	0.0589
Canary	900	456	54	3.28	7	3.28	29.52	1653	138	0.0608
Ruddy	900	456	45	3.59	7	2.4	28.74	1470	107	0.0621
Mallary	795	403	30	4.14	19	2.48	28.96	1726	165	0.0668
Condor	795	403	54	3.08	7	3.08	27.72	1458	124	0.069
Tern	795	403	45	3.38	7	2.25	27.03	1298	96	0.0701
Drake	795	403	26	4.44	7	3.45	28.11	1549	136	0.0682
Cuckoo	795	403	24	4.62	7	3.08	27.72	1460	122	0.069
Coot	795	403	36	3.77	1	3.77	26.39	1183	74	0.0711
Redwing	715.5	363	30	3.92	19	2.35	27.43	1552	149	0.0744
Starling	715.5	363	26	4.21	7	3.28	26.68	1393	122	0.0758
Stilt	715.5	363	24	4.39	7	2.92	26.32	1314	110	0.0764
Gannet	666.6	338	26	4.07	7	3.16	25.76	1298	116	0.0812
Flamingo	666.6	338	24	4.23	7	2.82	25.38	1225	103	0.0823
Egret	636	322	30	3.7	19	2.22	25.9	1381	133	0.0836
Sooter	636	322	30	3.7	7	3.7	25.9	1391	130	0.0834
Grosbeak	636	322	26	3.97	7	3.09	25.15	1238	110	0.0853
Rook	636	322	24	4.14	7	2.76	24.84	1168	98	0.0859
Swift	636	322	36	3.38	1	3.38	23.66	946	61	0.0884
Kingbird	636	322	18	4.78	1	4.78	23.9	1006	67	0.0876
Teal	605	307	30	3.61	19	2.16	25.24	1314	127	0.0878
Wood Duck	605	307	30	3.61	7	3.61	25.27	1323	126	0.0876
Squab	605	307	26	3.87	7	3.01	24.51	1177	105	0.0898
Peacock	605	307	24	4.03	7	2.69	24.19	1112	93	0.0906
Eagle	556.5	282	30	3.46	7	3.46	24.22	1217	119	0.0954
Dove	556.5	282	26	3.72	7	2.89	23.55	1083	97	0.0972
Parakeet	556.5	282	24	3.87	7	2.58	23.22	1022	86	0.0983
Ospray	556.5	282	18	4.47	1	4.47	22.35	880	59	0.1002
Hen	477	242	30	3.2	7	3.2	22.4	1043	104	0.1115
Hawk	477	242	26	3.44	7	2.68	21.8	929	84	0.1136
Flicker	477	242	24	3.58	7	2.39	21.49	877	74	0.1148
Pelican	477	242	18	4.14	1	4.14	20.7	755	51	0.1168
Lark	397.5	201	30	2.92	7	2.92	20.44	869	87	0.1339
Ibis	397.5	201	26	3.14	7	2.44	19.88	774	70	0.1364
Brant	397.5	201	24	3.27	7	2.18	19.62	731	63	0.1377
Chickadee	397.5	201	18	3.77	1	3.77	18.85	628	44	0.1408
Oriole	336.4	170	30	2.69	7	2.69	18.83	737	74	0.1574
Linnet	336.4	170	26	2.89	7	2.25	18.31	655	60	0.1609
Merlin	336.4	170	18	3.47	1	3.47	17.35	531	38	0.1662
Ostrich	300	152	26	2.73	7	2.12	17.28	583	54	0.1804
Partridge	266.8	135	26	2.57	7	2	16.28	519	48	0.2035
Waxwing	266.8	135	18	3.09	1	3.09	15.45	421	30	0.2096
Penguin	211.6	107	6	4.77	1	4.77	14.31	412	34	0.2533
Cochin	211.3	107	12	3.37	7	3.37	16.85	710	88	0.2258
Brahma	203.2	103	16	2.86	19	2.48	18.12	894	121	0.2163
Dorking	190.8	96.7	12	3.2	7	3.2	16	641	81	0.2505
Dotterel	176.9	89.6	12	3.08	7	3.08	15.4	594	75	0.2704
Pigeon	167.8	85	6	4.25	1	4.25	12.75	326	28	0.3191
Guinea	159	80.6	12	2.92	7	2.92	14.6	534	68	0.3008
3/0 (5/2)	152.5	77.3	5	4.44	2	4.44	13.32	418	43	0.3261
3/0 (4/3)	141.3	71.6	4	4.78	3	4.78	14.34	555	63	0.3187
Leghom	134.6	68.2	12	2.69	7	2.69	13.45	452	58	0.3545
Quail	133.1	67.4	6	3.78	1	3.78	11.34	259	23	0.4035
2/0 (5/2)	121	61.3	5	3.95	2	3.95	11.85	332	36	0.4121
2/0 (4/3)	112.1	56.8	4	4.25	3	4.25	12.75	441	53	0.4032
Minorca	110.8	56.1	12	2.44	7	2.44	12.2	372	48	0.4308
Raven	105.6	53.5	6	3.37	1	3.37	10.11	205	19	0.5074
Petrel	101.8	51.6	12	2.34	7	2.34	11.7	342	44	0.4684
2/0 (3/4)	99.83	50.6	3	4.63	4	4.63	13.89	588	73	0.3928
1/0 (5/2)	95.91	48.6	5	3.52	2	3.52	10.56	263	29	0.5189
1/0 (4/3)	88.8	45	4	3.79	3	3.79	11.37	348	43	0.507
Robin	83.69	42.4	6	3	1	3	9	162	15	0.6403
Grouse	80	40.5	8	2.54	1	4.24	9.32	205	22	0.6359
1/0 (3/4)	79.13	40.1	3	4.13	4	4.13	12.39	466	61	0.4936
1 (5/2)	76.08	38.6	5	3.13	2	3.13	9.39	208	24	0.6563
1 (4/3)	70.48	35.7	4	3.37	3	3.37	10.11	277	36	0.6413
Sparate	66.36	33.6	7	2.47	1	3.3	8.24	149	16	0.7874
Sparrow	66.36	33.6	6	2.67	1	2.67	8.01	129	12	0.8084
1/0 (2/5)	64.92	32.9	2	4.58	5	4.58	13.74	640	87	0.473
1 (3/4)	62.77	31.8	3	3.67	4	3.67	11.01	369	50	0.6251
2 (5/2)	60.34	30.6	5	2.79	2	2.79	8.37	165	19	0.826
2 (4/3)	55.89	28.3	4	3	3	3	9	219	29	0.8092
Swallow	52.62	26.7	6	2.38	1	2.38	7.14	103	10	1.0174
1 (2/5)	51.5	26.1	2	4.08	5	4.08	12.24	507	73	0.5961
2 (3/4)	49.78	25.2	3	3.27	4	3.27	9.81	293	43	0.7874
3 (5/2)	47.85	24.3	5	2.48	2	2.48	7.44	131	16	1.0454
3 (4/3)	44.32	22.5	4	2.68	3	2.68	8.04	174	23	1.014
Swanate	41.74	21.2	7	1.96	1	2.61	6.53	93	10	1.2511
Swan	41.74	21.2	6	2.12	1	2.12	6.36	81	8	1.2823
2 (2/5)	40.84	20.7	2	3.63	5	3.63	10.89	402	60	0.753
3 (3/4)	39.47	20	3	2.91	4	2.91	8.73	232	34	0.9943
4 (5/2)	37.95	19.2	5	2.21	2	2.21	6.63	104	12	1.3164
4 (4/3)	35.15	17.8	4	2.38	3	2.38	7.14	138	19	1.2857
3 (2/5)	32.39	16.4	2	3.23	5	3.23	9.69	320	50	0.951
4 (3/4)	31.3	15.9	3	2.6	4	2.6	7.8	185	27	1.2455
4 (2/5)	25.69	13	2	2.88	5	2.88	8.64	253	40	1.1962

ACSR/AW（JL/LB14） GB/T 1179
Code Number	Steel Ratio	Calculated Area			Number of Wires		Wire Diameter		Diameter		Linear Mass	Rated Strength	D.C. Resistance at 20℃
Code Number	Steel Ratio	Al.	AW.	Total	Al.	AW.	Al.	AW.	Al.	AW.	Linear Mass	Rated Strength	D.C. Resistance at 20℃
	%	mm²	mm²	mm²			mm	mm	mm	mm	kg/km	KN	Ω/km
25/4	16.7	24.1	4.01	28.1	6	1	2.26	2.26	2.26	6.78	94.7	9.87	1.1476
40/5	16.7	38.3	6.38	44.7	6	1	2.85	2.85	2.85	8.55	150.6	15.5	0.7216
50/8	16.7	48.3	8.04	56.3	6	1	3.2	3.2	3.2	9.6	189.8	19.06	0.5724
60/10	16.7	60.4	10.1	70.5	6	1	3.58	3.58	3.58	10.7	237.6	23.15	0.4573
70/10	16.7	68	11.3	79.3	6	1	3.8	3.8	3.8	11.4	267.7	26.08	0.4059
70/40	58.3	69.7	40.7	110	12	7	2.72	2.72	8.16	13.6	484.2	69.21	0.3645
95/15	16.7	95.9	16	112	6	1	4.51	4.51	4.51	13.5	377.1	36.74	0.2882
95/55	58.3	96.5	56.3	153	12	7	3.2	3.2	9.6	16	670.2	93.61	0.2633
120/7	5.6	119	6.61	125	18	1	2.9	2.9	2.9	14.5	374.6	29.53	0.2391
120/70	58.3	122	71.3	193	12	7	3.6	3.6	10.8	18	848.2	115	0.2081
150/8	5.6	145	8.04	153	18	1	3.2	3.2	3.2	16	456.2	34.98	0.1964
150/35	23.3	147	34.4	182	30	7	2.5	2.5	7.5	17.5	653.3	74.22	0.1861
185/10	5.6	183	10.2	193	18	1	3.6	3.6	3.6	18	577.3	42.95	0.1552
185/30	16.3	181	29.6	211	26	7	2.98	2.32	6.96	18.9	712.9	72.55	0.1534
185/45	23.3	185	43.1	228	30	7	2.8	2.8	8.4	19.6	819.5	92.18	0.1483
200/10	5.6	198	11	209	18	1	3.74	3.74	3.74	18.7	623.1	46.36	0.1438
200/30	16.3	192	31.4	224	26	7	3.07	2.39	7.17	19.5	756.6	76.04	0.1445
210/10	5.6	204	11.3	215	18	1	3.8	3.8	3.8	19	643.3	47.86	0.1393
210/35	16.2	212	34.4	246	26	7	3.22	2.5	7.5	20.4	831.1	83.38	0.1314
210/50	23.3	209	48.8	258	30	7	2.98	2.98	8.94	20.9	928.3	104.4	0.131
240/30	13	244	31.7	276	24	7	3.6	2.4	7.2	21.6	901.1	83.74	0.1146
240/40	16.3	239	38.9	278	26	7	3.42	2.66	7.98	21.7	938.5	94.26	0.1165
240/55	23.3	241	56.3	298	30	7	3.2	3.2	9.6	22.4	1070.4	117.5	0.1136
250/25	9.8	244	24	268	22	7	3.76	2.09	6.27	21.3	846	72.95	0.1154
250/40	16.3	240	39.2	279	26	7	3.43	2.67	8.01	21.7	944.4	94.9	0.1158
300/25	8.8	306	27.1	333	48	7	2.85	2.22	6.66	23.8	1040.5	90.26	0.0925
300/40	13	300	38.9	339	24	7	3.99	2.66	7.98	23.9	1106.9	102.9	0.0933
300/50	16.3	300	48.8	348	26	7	3.83	2.98	8.94	24.3	1177.2	116.8	0.0929
300/70	23.3	305	71.3	377	30	7	3.6	3.6	10.8	25.2	1354.7	144.3	0.0897
385/50	13	387	50.1	437	54	7	3.02	3.02	9.06	27.2	1429.5	133	0.0726
400/35	8.8	391	34.4	425	48	7	3.22	2.5	7.5	26.8	1326.6	112.9	0.0724
400/50	13	400	51.8	452	54	7	3.07	3.07	9.21	27.6	1477.2	137.5	0.0702
400/65	16.3	399	65.1	464	26	7	4.42	3.44	10.3	28	1568.1	153.6	0.0697
400/95	31.8	408	93.3	501	30	19	4.16	2.5	12.5	29.1	1797.8	196.7	0.0673
440/30	6.9	443	30.6	474	45	7	3.54	2.36	7.08	28.3	1443.4	114	0.0642
435/55	13	437	56.6	494	54	7	3.21	3.21	9.63	28.9	1615	150.3	0.0642
490/35	6.9	492	34.1	526	45	7	3.73	2.49	7.47	29.9	1603.2	126.7	0.0578
485/60	13	485	62.8	547	54	7	3.38	3.38	10.1	30.4	1790.6	166.6	0.0579
550/40	6.9	551	38	589	45	7	3.95	2.63	7.89	31.6	1796.5	141.8	0.0516
620/40	6.9	620	42.8	663	45	7	4.19	2.79	8.37	33.5	2021.4	159.6	0.0458
610/75	12.7	609	77.6	687	54	19	3.79	2.28	11.4	34.1	2243.2	206.9	0.0461
630/45	6.9	623	43.1	667	45	7	4.2	2.8	8.4	33.6	2031.8	160.5	0.0456
630/55	8.8	640	56.3	696	48	7	4.12	3.2	9.6	34.3	2172.1	180.1	0.0442
700/50	6.9	697	48.2	745	45	7	4.44	2.96	8.88	35.5	2270.7	179.4	0.0408
700/85	12.7	689	87.4	776	54	19	4.03	2.42	12.1	36.3	2534	233.4	0.0408
720/50	6.9	725	50.1	775	45	7	4.53	3.02	9.06	36.2	2363.7	185.2	0.0392
790/35	4.3	791	34.1	825	72	7	3.74	2.49	7.47	37.4	2432	165.9	0.0362
785/65	8.3	785	65.4	851	84	7	3.45	3.45	10.4	38	2642.7	208.9	0.0362
775/100	12.7	777	98.6	875	54	19	4.28	2.57	12.9	38.5	2858.1	263.3	0.0362
800/55	6.9	814	56.3	871	45	7	4.8	3.2	9.6	38.4	2653.8	208	0.0349
800/70	8.8	808	71.3	879	48	7	4.63	3.6	10.8	38.6	2744.3	224.8	0.035
800/100	12.7	795	101	896	54	19	4.33	2.6	13	39	2925.2	269.5	0.0353
880/75	8.3	884	73.6	957	84	7	3.66	3.66	11	40.3	2974.2	228.1	0.0321
890/115	12.7	890	113	1002	54	19	4.58	2.75	13.8	41.2	3272.7	301.5	0.0316
900/40	4.3	900	38.9	939	72	7	3.99	2.66	7.98	39.9	2768.8	188.9	0.0318
990/45	4.3	988	42.8	1031	72	7	4.18	2.79	8.37	41.8	3039.5	207.5	0.029
1025/45	4.3	1021	44.3	1066	72	7	4.25	2.84	8.52	42.5	3142.9	214.7	0.028
1015/85	8.3	1014	84.5	1098	84	7	3.92	3.92	11.8	43.1	3411.8	261.6	0.028
1135/50	4.3	1135	49.2	1184	72	7	4.48	2.99	8.97	44.8	3491.4	238.4	0.0252
1100/90	8.2	1098	89.6	1188	84	19	4.08	2.45	12.3	44.9	3684.2	286.9	0.0259
1225/100	8.2	1226	100	1326	84	19	4.31	2.59	13	47.4	4112.3	320.4	0.0232
1270/105	8.1	1271	103	1375	84	19	4.39	2.63	13.2	48.3	4261.9	331.5	0.0223
1405/115	8.1	1408	114	1523	84	19	4.62	2.77	13.9	50.8	4721.4	367.4	0.0202
ACSR/AW（JL/LB20A） GB/T 1179
Code Number	Steel Ratio	Calculated Area			Number of Wires		Wire Diameter		Diameter		Linear Mass	Rated Strength	D.C. Resistance at 20℃
Code Number	Steel Ratio	Al.	AW.	Total	Al.	AW.	Al.	AW.	Al.	AW.	Linear Mass	Rated Strength	D.C. Resistance at 20℃
	%	mm²	mm²	mm²			mm	mm	mm	mm	kg/km	KN	Ω/km
15/3	16.7	15.4	2.57	18.0	6	1	1.81	1.81	1.81	5.43	59.3	5.94	1.7594
25/4	16.7	24.1	4.01	28.1	6	1	2.26	2.26	2.26	6.78	92.5	9.03	1.1285
40/5	16.7	38.3	6.38	44.7	6	1	2.85	2.85	2.85	8.55	147.1	14.16	0.7096
50/8	16.7	48.3	8.04	56.3	6	1	3.20	3.20	3.2	9.6	185.4	17.61	0.5629
60/10	16.7	60.4	10.1	70.5	6	1	3.58	3.58	3.58	10.7	232.1	21.14	0.4497
70/10	16.7	68	11.3	79.3	6	1	3.80	3.80	3.8	11.4	261.5	23.36	0.3992
70/40	58.3	69.7	40.7	110	12	7	2.72	2.72	8.16	13.6	461.8	60.66	0.3458
95/15	16.7	95.9	16	112	6	1	4.51	4.51	4.51	13.5	368.3	31.79	0.2834
95/20	19.8	95.1	18.8	114	7	7	4.16	1.85	5.55	13.9	386	37.8	0.2831
95/55	58.3	96.5	56.3	153	12	7	3.20	3.20	9.6	16	639.1	83.48	0.2498
120/7	5.6	119	6.61	125	18	1	2.90	2.90	2.9	14.5	371	28.14	0.2378
120/20	16.3	121	19.6	140	26	7	2.43	1.89	5.67	15.4	462.9	44.67	0.2269
120/25	19.8	122	24.2	147	7	7	4.72	2.10	6.3	15.7	497.1	48.69	0.2199
120/70	58.3	122	71.3	193	12	7	3.60	3.60	10.8	18	808.9	100.8	0.1974
150/8	5.6	145	8.04	153	18	1	3.20	3.20	3.2	16	451.7	33.54	0.1953
150/20	12.9	146	18.8	164	24	7	2.78	1.85	5.55	16.7	526.5	47.34	0.1898
150/25	16.3	149	24.2	173	26	7	2.70	2.10	6.3	17.1	571.5	54.4	0.1838
150/35	23.3	147	34.4	182	30	7	2.50	2.50	7.5	17.5	634.3	67	0.1818
155/25	16.3	153	24.9	178	26	7	2.74	2.13	6.39	17.4	588.4	55.99	0.1785
185/10	5.6	183	10.2	193	18	1	3.60	3.60	3.6	18	571.7	40.92	0.1543
185/25	13	187	24.2	211	24	7	3.15	2.10	6.3	18.9	676.5	59.96	0.1478
185/30	16.3	181	29.6	211	26	7	2.98	2.32	7.96	18.9	696.6	66.34	0.1509
185/45	23.3	185	43.1	228	30	7	2.80	2.80	8.4	19.6	795.7	83.13	0.1449
200/10	5.6	198	11	209	18	1	3.74	3.74	3.74	18.7	617.1	43.72	0.1429
200/30	16.3	192	31.4	224	26	7	3.07	2.39	7.17	19.5	739.3	69.44	0.1422
210/10	5.6	204	11.3	215	18	1	3.80	3.80	3.8	19	637	45.14	0.1385
210/25	13	209	27.1	236	24	7	3.33	2.22	6.66	20	756.1	67	0.1322
210/35	16.2	212	34.4	246	26	7	3.22	2.50	7.5	20.4	812.1	76.17	0.1293
210/50	23.3	209	48.8	258	30	7	2.98	2.98	8.94	20.9	901.3	94.16	0.128
240/30	13	244	31.7	276	24	7	3.60	2.40	7.2	21.6	883.6	77.09	0.1131
240/40	16.3	239	38.9	278	26	7	3.42	2.66	7.98	21.7	917	86.09	0.1146
240/55	23.3	241	56.3	298	30	7	3.20	3.20	9.6	22.4	1039.3	107.4	0.111
250/25	9.8	244	24	268	22	7	3.76	2.09	6.27	21.3	832.7	67.9	0.1143
250/40	16.3	240	39.2	279	26	7	3.43	2.67	8.01	21.7	922.8	86.67	0.1139
300/15	5.2	297	15.3	312	42	7	3.00	1.67	5.01	23	921.8	68.87	0.0957
300/20	6.9	303	20.9	324	45	7	2.93	1.95	5.85	23.4	976.8	76.67	0.0931
300/25	8.8	306	27.1	333	48	7	2.85	2.22	6.66	23.8	1025.6	84.57	0.0916
300/40	13	300	38.9	339	24	7	3.99	2.66	7.98	23.9	1085.5	94.69	0.0921
300/50	16.3	300	48.8	348	26	7	3.83	2.98	8.94	24.3	1150.3	106.5	0.0913
300/70	23.3	305	71.3	377	30	7	3.60	3.60	10.8	25.2	1315.4	130.1	0.0877
310/20	6.9	310	21.3	331	45	7	2.96	1.97	5.91	23.7	996.9	78.25	0.0912
395/25	6.9	394	27.1	421	45	7	3.34	2.22	6.66	26.7	1268.8	97.6	0.0716
385/50	13	387	50.1	437	54	7	3.02	3.02	9.06	27.2	1401.8	124	0.0716
400/20	5.1	406	20.9	427	42	7	3.51	1.95	5.85	26.9	1261.4	90.11	0.0699
400/25	6.9	392	27.1	419	45	7	3.33	2.22	6.66	26.6	1262.3	97.2	0.0720
400/35	8.8	391	34.4	425	48	7	3.22	2.50	7.5	26.8	1307.6	105.7	0.0718
400/50	13	400	51.8	452	54	7	3.07	3.07	9.21	27.6	1448.6	128.1	0.0693
400/65	16.3	399	65.1	464	26	7	4.42	3.44	10.3	28	1532.2	140.6	0.0686
400/95	31.8	408	93.3	501	30	19	4.16	2.50	12.5	29.1	1746.1	177.2	0.0658
440/30	6.9	443	30.6	474	45	7	3.54	2.36	7.08	28.3	1426.5	107.6	0.0637
435/35	13	437	56.6	494	54	7	3.21	3.21	9.63	28.9	1583.7	140.1	0.0634
490/35	6.9	492	34.1	526	45	7	3.73	2.49	7.47	29.9	1584.4	119.6	0.0574
485/60	13	485	62.8	547	54	7	3.38	3.38	10.1	30.4	1755.9	154.1	0.0572
550/40	6.9	551	38	589	45	7	3.95	2.63	7.89	31.6	1775.5	133.9	0.0512
545/70	12.7	544	69	613	54	19	3.58	2.15	10.8	32.2	1961.6	169.7	0.0510
620/40	6.9	620	42.8	663	45	7	4.19	2.79	8.37	33.5	1997.8	150.6	0.0455
610/75	12.7	609	77.6	687	54	19	3.79	2.28	11.4	34.1	2200.2	190.6	0.0455
630/45	6.9	623	43.1	667	45	7	4.20	2.80	8.4	33.6	2008	151.5	0.0453
630/55	8.8	640	56.3	696	48	7	4.12	3.20	9.6	34.3	2141	169.9	0.0438
700/50	6.9	697	48.2	745	45	7	4.44	2.96	8.88	35.5	2244.1	169.3	0.0405
700/85	12.7	689	87.4	776	54	19	4.03	2.42	12.1	36.3	2485.6	215.1	0.0403
720/50	6.9	725	50.1	775	45	7	4.53	3.02	9.06	36.2	2337.9	176.2	0.039
790/35	4.3	791	34.1	825	72	7	3.74	2.49	7.47	37.4	2413.2	159.1	0.0360
785/65	8.3	785	65.4	851	84	7	3.45	3.45	10.4	38	2606.6	196.4	0.0358
775/100	12.7	777	98.6	875	54	19	4.28	2.57	12.9	38.5	2803.4	242.6	0.0357
800/55	6.9	814	56.3	871	45	7	4.80	3.20	9.6	38.4	2622.7	197.8	0.0347
800/70	8.8	808	71.3	879	48	7	4.63	3.60	10.8	38.6	2704.9	210.5	0.0347
800/100	12.7	795	101	896	54	19	4.33	2.60	13	39	2869.3	248.3	0.0349
880/75	8.3	884	73.6	957	84	7	3.66	3.66	11	40.3	2933.5	211.3	0.0318
890/115	12.7	890	113	1002	54	19	4.58	2.75	13.8	41.2	3210.1	277.8	0.0312
900/40	4.3	900	38.9	939	72	7	3.99	2.66	7.98	39.9	2747.3	181.2	0.0317
900/75	8.3	898	74.9	973	84	7	3.69	3.69	11.1	40.6	2981.8	214.8	0.0313
990/45	4.3	988	42.8	1031	72	7	4.18	2.79	8.37	41.8	3015.9	199	0.0288
1025/45	4.3	1021	44.3	1066	72	7	4.25	2.84	8.52	42.5	3118.4	205.8	0.0279
1135/50	4.3	1135	49.2	1184	72	7	4.48	2.99	8.97	44.8	3464.3	228.5	0.0251
1100/90	8.2	1098	89.6	1188	84	19	4.08	2.45	12.3	44.9	3634.6	269	0.0256
1235/50	4.2	1239	52.2	1291	72	19	4.68	1.87	9.35	46.8	3772	247.7	0.0230
1225/100	8.2	1226	100	1326	84	19	4.31	2.59	13	47.4	4056.9	300.4	0.023
1270/105	8.1	1271	103	1375	84	19	4.39	2.63	13.2	48.3	4204.6	310.9	0.0222
1420/60	4.2	1419	60.3	1480	72	19	5.01	2.01	10.1	50.1	4325.9	284.5	0.0201
1435/60	4.2	1436	60.3	1497	72	19	5.04	2.01	10.1	50.4	4373.1	287.1	0.0199
1405/115	8.1	1408	114	1523	84	19	4.62	2.77	13.9	50.8	4658	344.6	0.02
