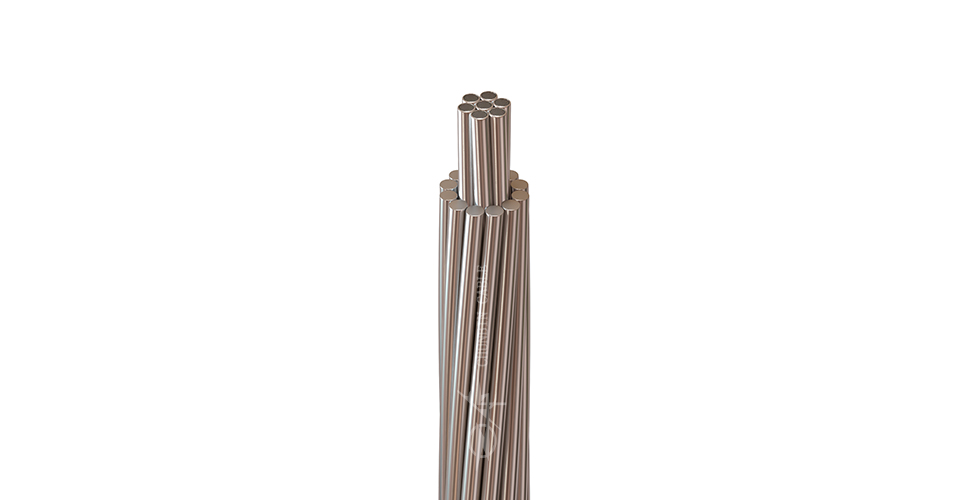

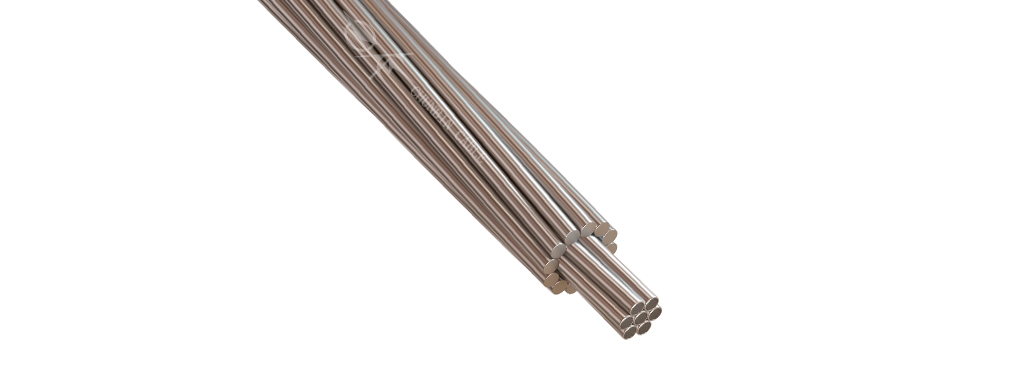

ACS-Aluminum Clad Steel Conductor

ACS-Aluminum Clad Steel Conductor

Model Number: TW THHN THW THW-2 THHW THWN
Packaging Details: Wooden-Steel Drum
Send Email
Chat Now
Introduction
Application
Due to its excellent characteristics, this product is used extensively in the cable industry for the manufacturing of Optical Ground Wire (OPGW), conventional stranded earth wired and steel reinforced cores for phases conductors, all to be used in overheads lines. Also, it can be used in alternative applications an helical hardware for overhead lines or those where the resistance to the corrosion is an important factor.
Description
Bare concentric-lay-stranded conductors made from bare, hard-drawn, round, aluminum clad steel wires for general use of electrical purposes. Conductors are classified as follows: 14 % conductivity, 20.3 % conductivity, 27 % conductivity, 35 % conductivity, 40 % conductivity.
Specification
• IEC 61089 Round Wire Concentric Lay Overhead Electrical Stranded Conductors
• ASTM B 416 Concentric-Lay-Stranded Aluminum-Clad Steel Conductors
• AS 1222.2 Steel Conductors and stays Bare Overhead  Part 2:Aluminum clad (SC/AC)
• GB/T 1179 Round Wire Concentric Lay Overhead Electrical Stranded Conductors
technical parameter
ASTM B416
AS 1222.2
GB/T 1179
ACS                                                       ASTM B416
No.and Size of Wires Nominal Cross Section Number and Diameter of
Individual Wires		 Nominal
Diameter		 Mass per Unit Length Min.Rated Breaking Strength  Nominal DC Resistance at 20°C
Number  Nominal
Diameter
  mm²   mm² mm kg/km kN Ω/km
37 No. 5 AWG 620.58 37 4.620  32.26 4169.8 635.42 0.1393
37 No. 6 AWG 492.19 37 4.115  28.7 3306.7 534.86 0.1757
37 No. 7 AWG 390.32 37 3.665  25.65 2622.1 448.09 0.2216
37 No.8 AWG 309.55 37 3.264  22.83 2080.4 374.67 0.2794
37 No. 9 AWG 245.48 37 2.906  20.35 1648.9 297.11 0.3524
37 No. 10 AWG 194.64 37 2.588  18.11 1308.1 235.61 0.4442
19 No. 5 AWG 318.71 19 4.620  23.11 2128.1 326.39 0.2698
19 No. 6 AWG 252.71 19 4.115  20.57 1687.6 274.55 0.3402
19 No. 7 AWG 200.45 19 3.665  18.31 1338.6 230.18 0.4292
19 No. 8 AWG 158.97 19 3.264  16.31 1061.8 192.41 0.541
19 No. 9 AWG 126.06 19 2.906  14.53 842 152.58 0.6821
19 No. 10 AWG 99.94 19 2.588  12.93 667.7 120.99 0.8603
7 No. 5 AWG 117.42 7 4.620  13.87 781.1 120.28 0.7428
7 No. 6 AWG 93.1 7 4.115  12.34 619.5 101.14 0.9197
7 No. 7 AWG 73.87 7 3.665  11 491.1 84.81 1.1598
7 No. 8 AWG 58.56 7 3.264  9.78 389.6 70.88 1.4627
7 No. 9 AWG 46.44 7 2.906  8.71 308.9 56.2 1.8443
7 No. 10 AWG 36.83 7 2.588  7.77 245.1 44.59 2.3256
7 No. 11 AWG 29.18 7 2.304  6.91 194.4 35.35 2.9326
7 No. 12 AWG 23.16 7 2.052  6.15 154.2 28.04 3.6977
3 No. 5 AWG 50.32 3 4.620  9.96 334.1 54.42 1.6986
3 No. 6 AWG 39.9 3 4.115  8.86 265 45.74 2.1418
3 No. 7 AWG 31.65 3 3.665  7.9 210.1 38.36 2.7009
3 No. 8 AWG 25.1 3 3.264  7.04 166.7 32.06 3.4057
3 No. 9 AWG 19.9 3 2.906  6.27 132.2 25.43 4.2948
3 No. 10 AWG 15.78 3 2.588  5.59 104.8 20.17 5.4169
ACS(SC/AC)                                                     AS 1222.2
Stranding and wire diameter Approx. overall diameter Cross-sectional
area		 Approx. Mass per km Calculated breaking load (CBL) Equivalent aluminium area D.C. Resistance
mm mm mm² kg kN mm² Ω
3/2.75 5.93 17.82 118  22.7 5.91 4.8
3/3.00 6.47 21.21 141  27 7.03 4.02
3/3.25 7 24.89 165  31.6 8.26 3.42
3/3.75 8.08 33.12 220  39.3 11 2.58
7/2.75 8.25 41.58 277  50.1 13.7 2.06
7/3.00 9 49.48 330  59.7 16.3 1.73
7/3.25 9.75 58.07 387  69.9 19.2 1.47
7/3.75 11.3 77.28 515  86.9 25.5 1.11
7/4.25 12.8 99.33 662  105 32.8 0.864
19/2.75 13.8 112.9 755  136 37.1 0.764
19/3.00 15 134.3 899  162 44.1 0.642
19/3.25 16.3 157.6 1060  189 51.8 0.545
19/3.75 18.8 209.8 1410  236 68.9 0.411
19/4.25 21.3 269.6 1800  286 88.6 0.32
ACS                                                                                 GB/T 1179
Code Number CalculatedArea No. of
Wires		 Diameter Linear Mass Rated Strength DC Resistance
Wire  Cond. JLB14 JLB20A JLB14 JLB20A JLB14 JLB20A
  mm²   mm mm kg/km kg/km KN KN Ω/km Ω/km
30 29.1 7 2.30  6.9 210.4 194.2 46.24  38.97 4.2899 2.954
35 34.4 7 2.50  7.5 248.6 229.4 54.63  46.04 3.6309 2.5002
40 41.6 7 2.75  8.25 300.7 277.6 66.11  55.71 3.0008 2.0663
45 46.2 7 2.90  8.7 334.5 308.7 73.52  61.96 2.6984 1.8581
50 49.5 7 3.00  9 357.9 330.3 78.67  66.3 2.5215 1.7363
55 56.3 7 3.20  9.6 407.2 375.9 87.26  75.44 2.2161 1.526
65 67.3 7 3.50  10.5 487.2 449.6 104.40  85.53 1.8525 1.2756
70 71.3 7 3.60  10.8 515.4 475.7 108.30  90.49 1.751 1.2057
80 79.4 7 3.80  11.4 574.3 530 120.70  99.24 1.5716 1.0822
90 90.2 7 4.05  12.2 652.3 602.1 137.10  109.1 1.3835 0.9527
95 95.1 7 4.16  12.5 688.2 635.2 144.60  112.3 1.3113 0.903
80 80.3 19 2.32  11.6 583.8 538.8 127.70  107.6 1.5609 1.0748
100 101 19 2.60  13 733.2 676.7 160.40  135.2 1.2428 0.8558
120 121 19 2.85  14.3 881 813.1 192.70  162.4 1.0343 0.7122
150 148 19 3.15  15.8 1076.2 993.3 229.50  198.4 0.8467 0.583
170 173 19 3.40  17 1253.9 1157.3 267.40  226 0.7267 0.5004
185 183 19 3.50  17.5 1328.7 1226.3 283.30  232.2 0.6858 0.4722
210 210 19 3.75  18.8 1525.3 1407.8 319.00  262.3 0.5974 0.4114
240 239 19 4.00  20 1735.4 1601.8 362.90  288.9 0.5251 0.3616
300 298 37 3.20  22.4 2168 2001 461.20  398.7 0.4223 0.2908
350 352 37 3.48  24.4 2564 2366.5 545.50  446.9 0.3571 0.2459
380 377 37 3.60  25.2 2743.9 2532.5 572.50  478.3 0.3337 0.2298
400 398 37 3.70  25.9 2898.4 2675.2 604.70  497.3 0.3159 0.2175
420 420 37 3.80  26.6 3057.2 2821.7 637.80  524.5 0.2995 0.2062
450 451 37 3.94  27.6 3286.6 3033.5 685.70  563.9 0.2786 0.1918
465 465 37 4.00  28 3387.5 3126.6 706.70  562.6 0.2703 0.1861
500 503 37 4.16  29.1 3663.9 3381.7 764.40  593.4 0.2499 0.1721
590 588 37 4.50  31.5 4287.3 3957.1 894.50  670.8 0.2135 0.147
600 599 37 4.54  31.9 4363.9 4027.1 910.40  682.8 0.2098 0.1445
600 600 61 3.54  32.7 4380.6 4043.2 866.90  724.4 0.2096 0.1443
630 631 61 3.63  32.7 4606.2 4251.3 911.60  761.7 0.1993 0.1373
670 670 37 4.80  33.6 4878 4502.3 1004.30  716.4 0.1877 0.1292
800 805 61 4.10  36.9 5876.2 5423.5 1162.90  925.8 0.1563 0.1076

ACS                                                                                 GB/T 1179
Code Number CalculatedArea No. of
Wires		 Diameter Linear Mass Rated Strength DC Resistance
Wire  Cond. JLB27 JLB35 JLB40 JLB27 JLB35 JLB40 JLB27 JLB35 JLB40
  mm²   mm mm kg/km kg/km kg/km KN KN KN Ω/km Ω/km Ω/km
35 34.4 7 2.50  7.5 205.7 179.3 161.5  37.11 27.83 23.37 1.8828 1.4524  1.2708
40 41.6 7 2.75  8.25 248.9 216.9 195.4  44.9 33.68 28.27 1.5561 1.2003  1.0502
45 46.2 7 2.90  8.7 276.8 241.2 217.3  49.94 37.45 31.44 1.3993 1.0794  0.9444
50 49.5 7 3.00  9 296.3 258.2 232.6  53.44 40.08 33.65 1.3075 1.0086  0.8825
55 56.3 7 3.20  9.6 337.1 293.7 264.6  60.8 45.6 38.28 1.1492 0.8865  0.7756
65 67.3 7 3.50  10.5 403.2 351.4 316.6  72.74 54.55 45.8 0.9606 0.7410  0.6483
70 71.3 7 3.60  10.8 426.6 371.8 334.9  76.95 57.71 48.45 0.908 0.7004  0.6128
80 79.4 7 3.80  11.4 475.3 414.2 373.2  85.74 64.3 53.98 0.8149 0.6286  0.55
90 90.2 7 4.05  12.2 539.9 470.5 423.9  97.39 73.04 61.32 0.7174 0.5534  0.4842
95 95.1 7 4.16  12.5 569.7 496.4 447.2  102.8 77.07 64.7 0.68 0.5245  0.4589
100 101 19 2.60  13 606.9 528.9 476.5  108.9 81.71 68.6 0.6444 0.4971  0.4349
120 121 19 2.85  14.3 729.2 635.5 572.5  130.9 98.18 82.42 0.5363 0.4137  0.362
150 148 19 3.15  15.8 890.8 776.3 699.4  159.9 119.9 100.7 0.439 0.3387  0.2963
170 173 19 3.40  17 1037.9 904.4 814.8  186.3 139.7 117.3 0.3769 0.2907  0.2543
185 183 19 3.50  17.5 1099.8 958.4 863.5  197.4 148.1 124.3 0.3556 0.2743  0.24
210 210 19 3.75  18.8 1262.5 1100.2 991.2  226.6 170 142.7 0.3098 0.2390  0.2091
240 239 19 4.00  20 1436.5 1251.8 1127.8  257.9 193.4 162.4 0.2723 0.2100  0.1838
300 298 37 3.20  22.4 1794.5 1563.8 1408.9  321.4 241 202.3 0.219 0.1689  0.1478
350 352 37 3.48  24.4 2122.3 1849.4 1666.2  381 285.1 239.3 0.1852 0.1428  0.125
380 377 37 3.60  25.2 2271.2 1979.1 1783.1  406.7 305.1 256.1 0.173 0.1335  0.1168
400 398 37 3.70  25.9 2399.1 2090.6 1883.6  429.7 322.2 270.5 0.1638 0.1263  0.1105
420 420 37 3.80  26.6 2530.6 2205.1 1986.8  453.2 339.9 285.3 0.1553 0.1198  0.1048
450 451 37 3.94  27.6 2720.5 2370.6 2135.9  487.2 365.4 306.8 0.1444 0.1114  0.0975
465 465 37 4.00  28 2803.9 2443.4 2201.4  502.2 376.6 316.2 0.1401 0.1081  0.0946
500 503 37 4.16  29.1 3032.7 2642.7 2381.0  543.1 407.3 342 0.1296 0.1000  0.0875
510 513 37 4.20  29.4 3091.3 2693.8 2427.0  553.6 415.2 348.6 0.1271 0.0981  0.0858
590 588 37 4.50  31.5 3548.7 3092.4 2786.2  635.5 476.7 400.2 0.1107 0.0854  0.0747
600 599 37 4.54  31.9 3612.1 3147.6 2835.9  646.9 485.2 407.3 0.1088 0.0839  0.0734
600 600 61 3.54  32.7 3626 3159.7 2846.8  616 462 387.8 0.1087 0.0838  0.0734
630 631 61 3.63  32.7 3812.7 3322.4 2993.4  647.7 485.8 407.8 0.1034 0.0797  0.0698
670 670 37 4.80  33.6 4037.7 3518.5 3170.0  723.1 542.3 455.3 0.0973 0.0751  0.0657
800 805 61 4.10  36.9 4863.9 4238.4 3818.7  826.3 619.7 520.3 0.081 0.0625  0.0547
