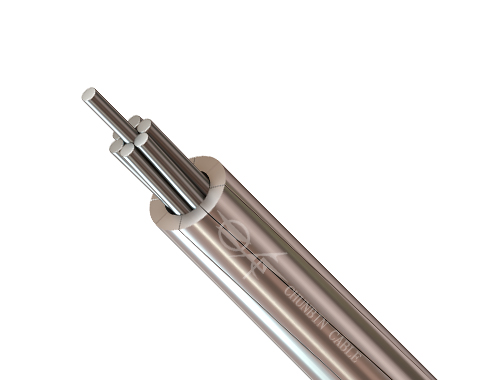

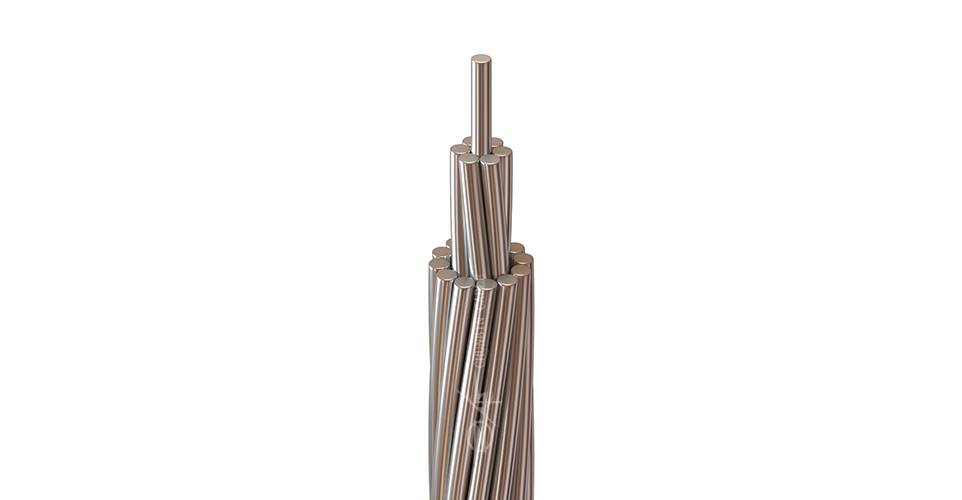

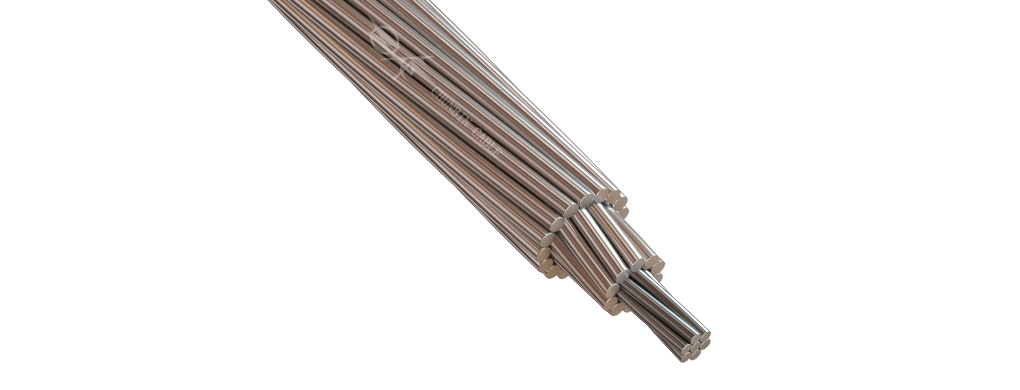

AAAC-All Aluminum Alloy Conductor

AAAC-All Aluminum Alloy Conductor

Send Email
Chat Now
Introduction
Application
AAAC is used as a bare overhead conductor for power transmission and distribution lines, on aerial circuits that require a larger mechanical resistance than AAC, and a better corrosion resistance than ACSR. The sag characteristics and the strength-to-weight ratio of AAAC is better than both AAC / ACSR.
Description
Concentric lay stranded Aluminium Alloy Conductors (AAAC) are made out of high strength Aluminium-Magnesium-Silicon Alloy.
Specification
* IEC 61089 Round Wire Concentric Lay Overhead Electrical Stranded Conductors
* ASTM B 399 Concentric-Lay-Stranded Aluminum-Alloy 6201-T81 Conductors.
*BS EN 50182 Conductors for Overhead Lines-Round Wire Concentric Lay stranded Conductors
* AS 1531 Conductors - Bare Overhead - Aluminum and Aluminum Alloy
*GB/T 1179 Round Wire Concentric Lay Overhead Electrical Stranded Conductors
Technical parameter
IEC 61089
ASTM B 399
BS EN 50182 ( Germany)
AAAC/A2                                                          IEC 61089
Code Number Area No.of Wires Diameter Linear Mass Rated Strength D.C. Resistance
Wire   Cond.
  mm²   mm mm kg/km KN Ω/km
16 18.4 7 1.83 5.49 50.4 5.43 1.7896
25 28.8 7 2.29 6.86 78.7 8.49 1.1453
40 46 7 2.89 8.68 125.9 13.58 0.7158
63 72.5 7 3.63 10.9 198.3 21.39 0.4545
100 115 19 2.78 13.9 316.3 33.95 0.2877
125 144 19 3.1 15.5 395.4 42.44 0.2302
160 184 19 3.51 17.6 506.1 54.32 0.1798
200 230 19 3.93 19.6 632.7 67.91 0.1439
250 288 19 4.39 22 790.8 84.88 0.1151
315 363 37 3.53 24.7 998.9 106.95 0.0916
400 460 37 3.98 27.9 1268.4 135.81 0.0721
450 518 37 4.22 29.6 1426.9 152.79 0.0641
500 575 37 4.45 31.2 1585.5 169.76 0.0577
560 645 61 3.67 33 1778.4 190.14 0.0516
630 725 61 3.89 35 2000.7 213.9 0.0458
710 817 61 4.13 37.2 2254.8 241.07 0.0407
800 921 61 4.38 39.5 2540.6 271.62 0.0361
900 1036 91 3.81 41.8 2861.1 305.58 0.0321
1000 1151 91 4.01 44.1 3179 339.53 0.0289
1120 1289 91 4.25 46.7 3560.5 380.27 0.0258
1250 1439 91 4.49 49.4 3973.7 424.41 0.0231

AAAC/A3                                                          IEC 61089
Code Number Area No.of Wires Diameter Linear Mass Rated Strength D.C. Resistance
Wire   Cond.
  mm²   mm mm kg/km KN Ω/km
16 18.6 7 1.84 5.52 50.8 6.04 1.7896
25 29 7 2.3 6.9 79.5 9.44 1.1453
40 46.5 7 2.91 8.72 127.1 15.1 0.7158
63 73.2 7 3.65 10.9 200.2 23.06 0.4545
100 116 19 2.79 14 319.3 37.76 0.2877
125 145 19 3.12 15.6 399.2 47.2 0.2302
160 186 19 3.53 17.6 511 58.56 0.1798
200 232 19 3.95 19.7 638.7 73.2 0.1439
250 290 19 4.41 22.1 798.4 91.5 0.1151
315 366 37 3.55 24.8 1008.4 115.29 0.0916
400 465 37 4 28 1280.5 146.4 0.0721
450 523 37 4.24 29.7 1440.5 164.7 0.0641
500 581 37 4.47 31.3 1600.6 183 0.0577
560 651 61 3.69 33.2 1795.3 204.96 0.0516
630 732 61 3.91 35.2 2019.8 230.58 0.0458
710 825 61 4.15 37.3 2276.2 259.86 0.0407
800 930 61 4.4 39.6 2564.8 292.8 0.0361
900 1046 91 3.83 42.1 2888.3 329.4 0.0321
1000 1162 91 4.03 44.4 3209.3 366 0.0289
1120 1301 91 4.27 46.9 3594.4 409.92 0.0258
AAAC                                                          ASTM B 399
Conductor Size No. and Diameter Overall Diameter Mass Rated Strength Nominal DC Resistance at 20℃
AWG or MCM mm² mm mm kg/km kN Ω/km
6 13.2 7/1.55 4.65 36.2 4.18 2.5361
4 21.1 7/1.96 5.88 57.9 6.69 1.586
2 33.5 7/2.47 7.41 92 10.6 0.9987
1/0 53.5 7/3.12 9.36 146.8 17 0.62592
2/0 67.3 7/3.50 10.5 184.8 20.4 0.49738
3/0 84.9 7/3.93 11.79 233 25.7 0.3945
4/0 107 7/4.42 13.26 294.7 32.5 0.31188
250 126 19/2.91 14.55 346.7 38.8 0.26509
300 152 19/3.19 15.95 416.7 46.6 0.22059
350 178 19/3.45 17.25 487.3 52 0.1886
400 203 19/3.69 18.45 557.5 59.5 0.16486
450 228 19/3.91 19.55 626 66.8 0.14683
500 253 19/4.12 20.6 695 74.2 0.13224
550 279 37/3.10 21.7 766.2 83.9 0.11995
600 303 37/3.23 22.61 831.9 91 0.11049
650 330 37/3.37 23.59 905.5 94.9 0.1015
700 354 37/3.49 24.43 971.2 101 0.09464
750 381 37/3.62 25.34 1045 109 0.08796
800 404 37/3.73 26.11 1109 116 0.08285
900 456 37/3.96 27.72 1250 131 0.07351
1000 508 37/4.18 29.26 1393 146 0.06597
1250 631 61/3.63 32.67 1732 179 0.05306
1500 759 61/3.98 35.82 2082 215 0.04414
1750 886 61/4.30 38.7 2431 251 0.03781

AAAC                                                          ASTM B 399
Code Name Conductor Size No. and Diameter Overall Diameter Mass Rated Strength Nominal DC Resistance at 20℃
  kcmil mm² mm mm kg/km kN Ω/km
Akron 30.58 15.5 7/1.68 5.04 42.58 4.92
Alton 48.69 24.7 7/2.12 6.36 67.8 7.83
Ames 77.47 39.2 7/2.67 8.01 107.5 12.4
Azusa 123.3 62.4 7/3.37 10.11 171.3 18.9
Anaheim 155.4 78.6 7/3.78 11.34 215.6 23.8
Amherst 195.7 99.3 7/4.25 12.75 272.5 30
Alliance 246.9 125 7/4.77 14.31 343.2 37.8
Butte 312.8 159 19/3.26 16.3 435.1 46.5
Canton 394.5 200 19/3.66 18.3 548.5 58.6
Cairo 465.4 236 19/3.98 19.9 648.6 69.2
Darien 559.5 284 19/4.36 21.8 778.3 83.1
Elgin 652.4 331 19/4.71 23.55 908.3 97
Flint 740.8 375 37/3.59 25.13 1028 107
Greeley 927.2 470 37/4.02 28.14 1289 135
— 1077.4 547 61/3.38 30.42 1502 156
— 1165.1 590 61/3.51 31.59 1620 167
— 1259.6 638 61/3.65 32.85 1751 181
— 1348.8 685 61/3.78 34.02 1878 194
— 1439.2 729 61/3.90 35.1 1999 207
AAAC                                                      BS EN 50182 ( Germany)
Code Old Code Area No. of Wires Diameter Mass per Unit Length Rated Strength DC
Resistance
Wire Cond.
    mm²   mm mm kg/km kN Ω/km
16-AL3 16 15.9 7 1.7 5.1 43.4 2.0701
24-AL3 25 24.2 7 2.1 6.3 66.2 1.3566
34-AL3 35 34.4 7 2.5 7.5 93.8 0.9572
49-AL3 50 49.5 7 3 9 135.1 0.6647
48-AL3 50 48.3 19 1.8 9 132.7 0.6841
66-AL3 70 65.8 19 2.1 10.5 180.7 0.5026
93-AL3 95 93.3 19 2.5 12.5 256 0.3546
117-AL3 120 117 19 2.8 14 321.2 0.2827
147-AL3 150 147.1 37 2.25 15.8 405.3 0.2256
182-AL3 185 181.6 37 2.5 17.5 500.3 0.1827
243-AL3 240 242.5 61 2.25 20.3 670.3 0.1373
299-AL3 300 299.4 61 2.5 22.5 827.5 0.1112
400-AL3 400 400.1 61 2.89 26 1105.9 0.0832
500-AL3 500 499.8 61 3.23 29.1 1381.4 0.0666
626-AL3 625 626.2 91 2.96 32.6 1737.7 0.0534
802-AL3 800 802.1 91 3.35 36.9 2225.8 0.0417
1000-AL3 1000 999.7 91 3.74 41.1 2774.3 0.0334

AAAC                                                      BS EN 50182 ( Germany)
Code Old Code Area No. of Wires Diameter Mass per Unit Length Rated Strength DC
Resistance
Wire Cond.
    mm²   mm mm kg/km kN Ω/km
