The production process of cables involves multiple steps, each crucial to ensure the final product's quality and performance. Below is a detailed description of the cable manufacturing process:
1. Raw Material Preparation
Conductor Materials:
Copper and Aluminum Wires: The conductor materials for cables are typically copper and aluminum. These materials need to be smelted and cast into wire rods.
Insulation Materials:
PVC, PE, XLPE: Common insulation materials include Polyvinyl Chloride (PVC), Polyethylene (PE), and Cross-Linked Polyethylene (XLPE). The appropriate material is selected based on the application.
2. Conductor Manufacturing
Drawing:
Wire Drawing: Copper or aluminum rods are drawn into thin wires using a wire drawing machine. This step requires ensuring the conductor's diameter and surface finish meet the standards.

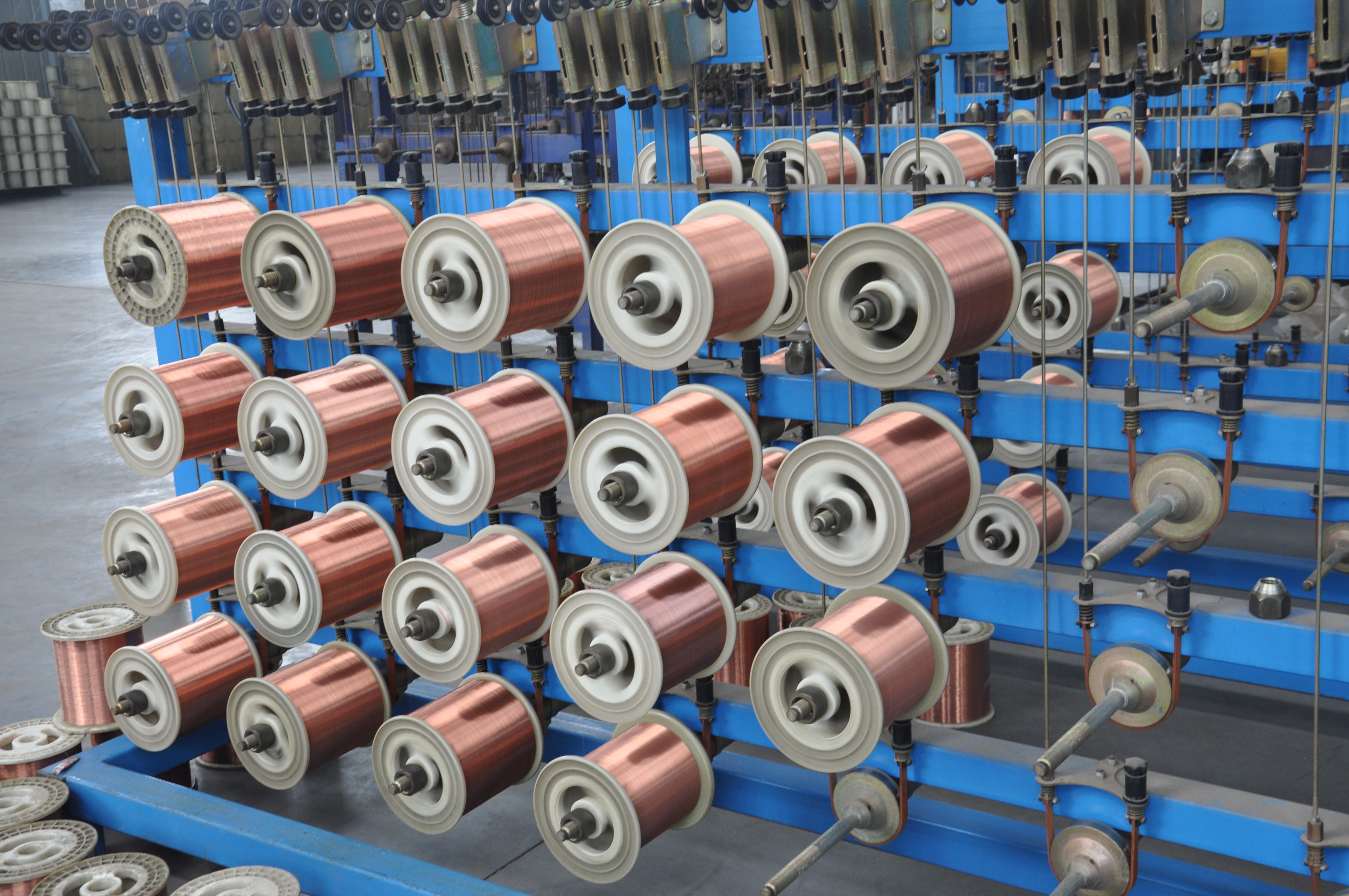

Stranding:
Stranding: Multiple thin wires are stranded together to form single or multi-strand conductors, increasing the cable's flexibility and strength.
3. Insulation Layer Production

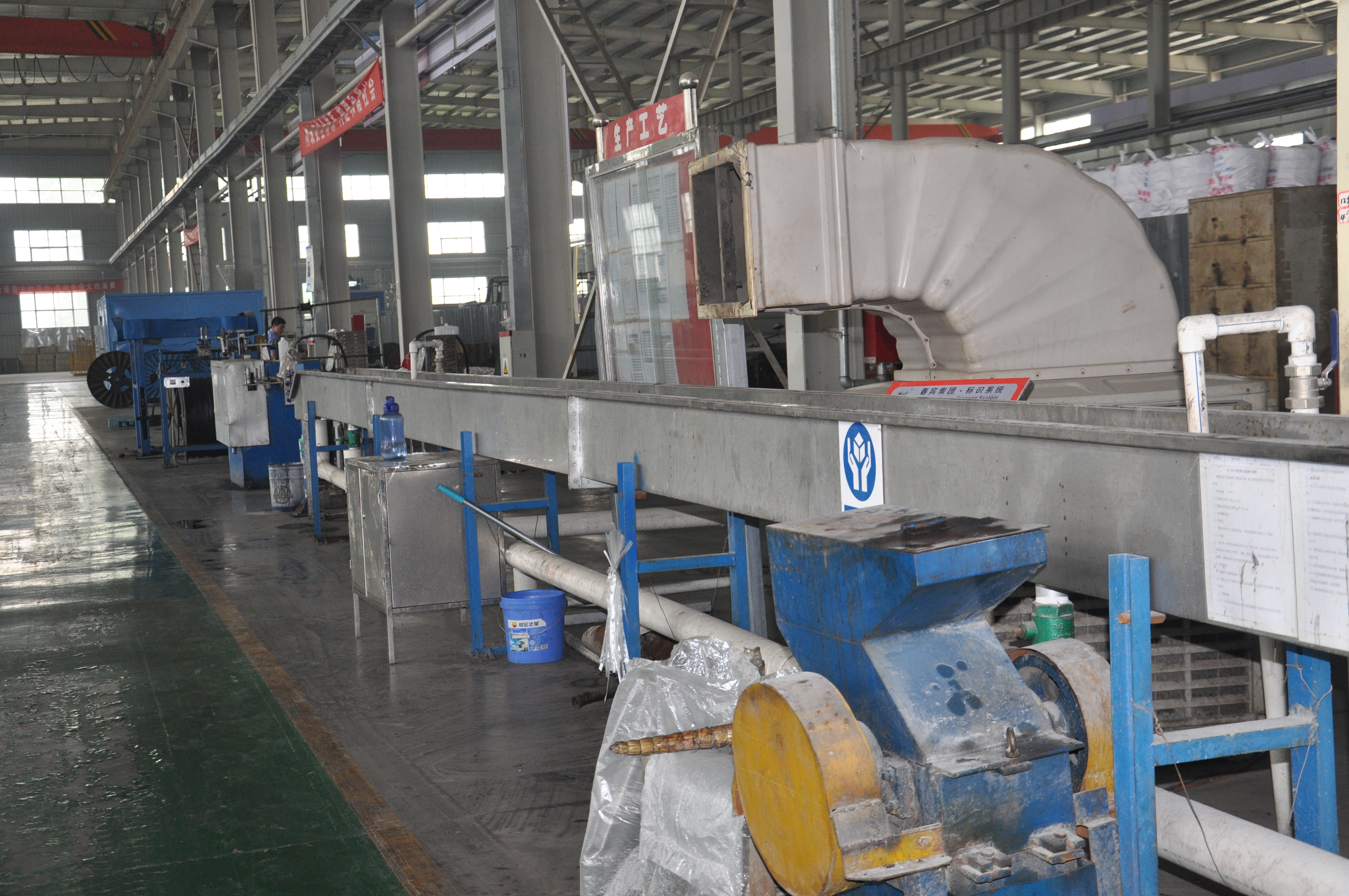

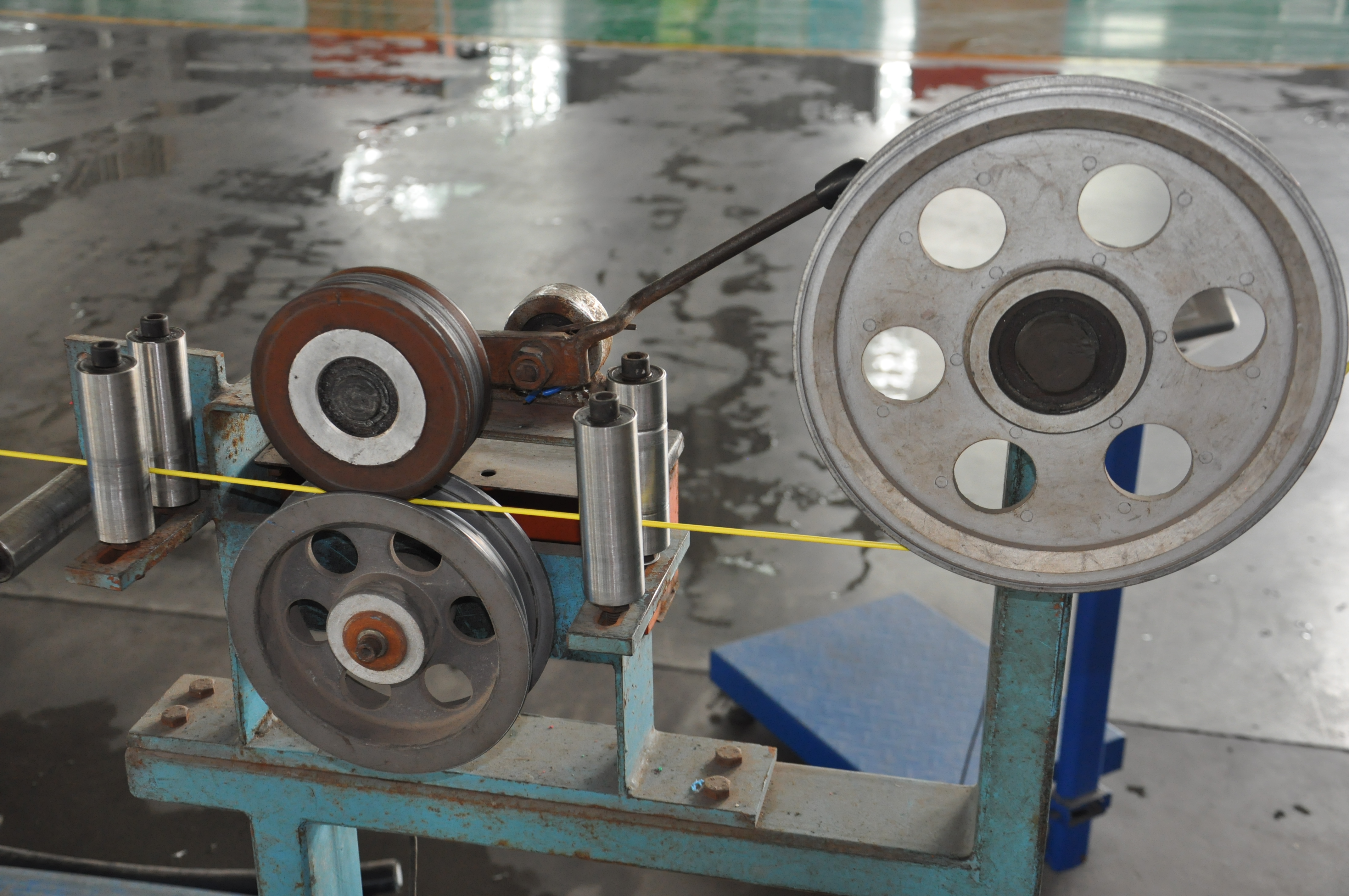

Insulation Extrusion:
Extrusion: Insulation material is uniformly applied to the conductor using an extrusion machine. This process requires precise temperature and extrusion speed control to ensure the insulation layer's thickness and uniformity.
Cooling:
Cooling: The extruded cable is passed through a cooling water trough to solidify the insulation layer.

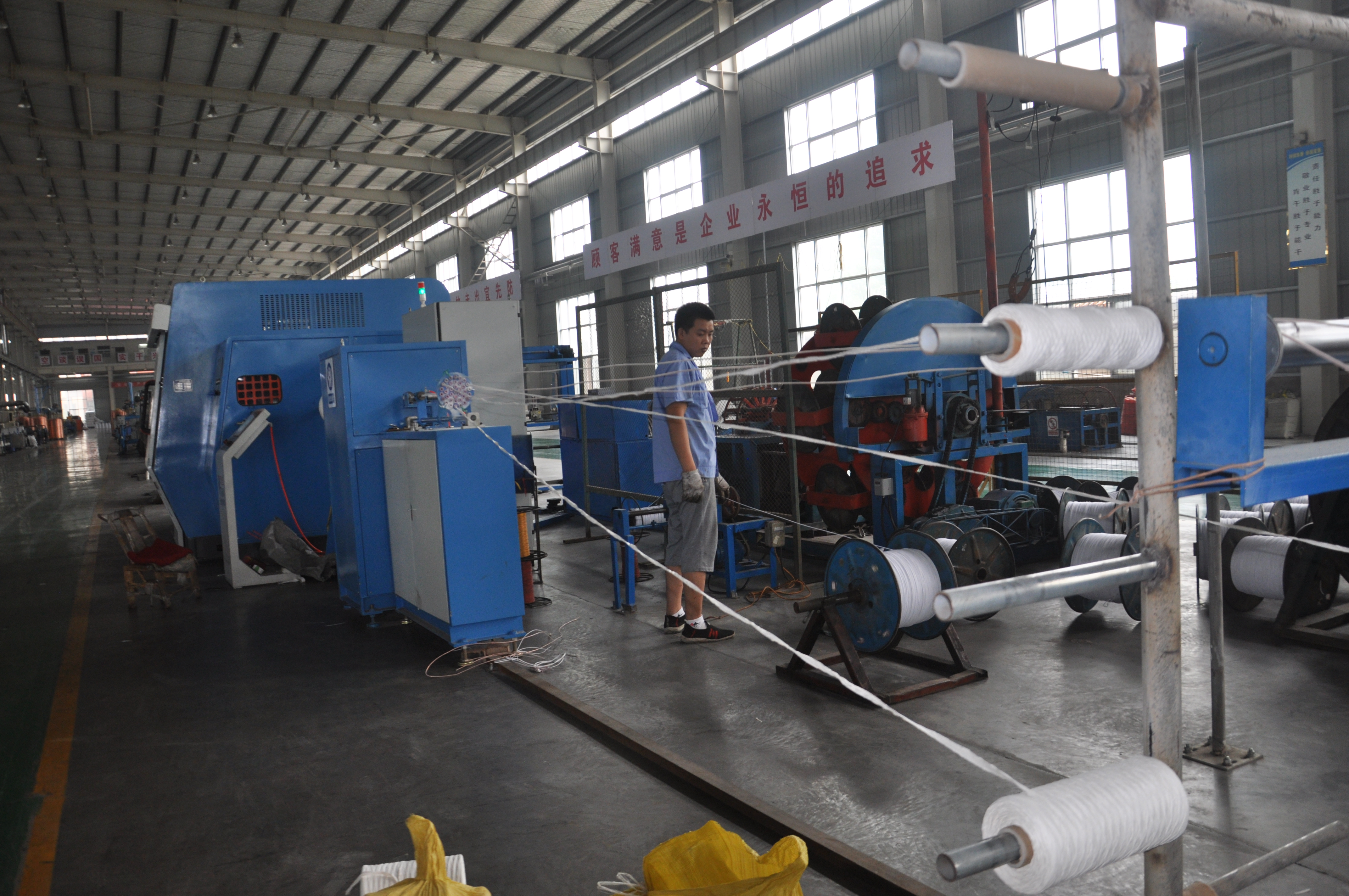

4. Cabling
Twisting:
Twisting: Multiple single-core cables are twisted together according to design requirements to form multi-core cables. This step ensures that each core's arrangement and tension are consistent.
5. Sheath Layer Production
Sheath Extrusion:
Extrusion: A protective sheath is extruded over the cable using a sheath extrusion machine, typically using materials like PVC or PE.
Cooling and Curing:
Cooling and Curing: After extrusion, the sheath layer is cooled and solidified through a cooling water trough.
6. Testing and Quality Control
Electrical Performance Testing:
Testing: Conduct electrical performance tests such as conductivity, insulation resistance, and withstand voltage tests to ensure the cable meets relevant standards.
Mechanical Performance Testing:
Testing: Test the cable's tensile strength, abrasion resistance, and other mechanical properties to ensure its durability in actual use.
